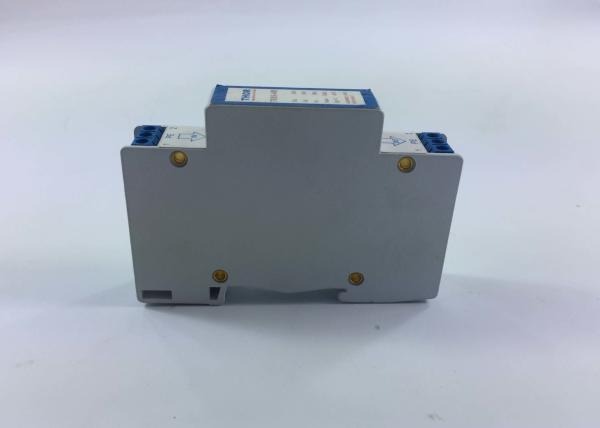

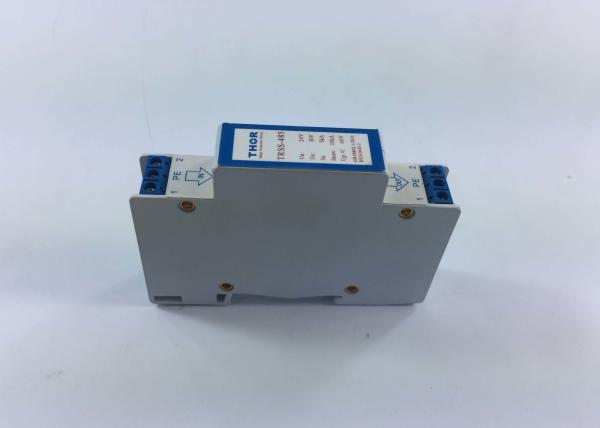

Industrial control signal, lightning protector, automatic surge protector, monitoring signal, lightning protector.

Brief introduction

The control signal lightning arrester is designed according to the standard of IEC and GB. The interface form of the product is a standard connection column type joint. It can protect 2 special communication lines. The installation and maintenance is very convenient. The nominal discharge current can reach 5KA (820 s). It can fully protect the equipment with the latest semiconductor device and select the most appropriate limit for different lines. The voltage is made. The product is applicable to security system, fire fighting system and industrial system.

Working principle of product

The control signal surge protector is connected to the front end of the protected equipment. When the transmission line is impacted by the inductive thunder and other transient overvoltage, the impact current is discharged to the earth through the protection branch of the surge protector, and the output voltage is placed in the allowable voltage range of the equipment, thus ensuring the safety of the operating

equipment.

Product features

1. the design is novel and small in size.

2. transmission rate is high and the frequency range is large.

3. The core elements are strictly screened and the performance is superior

Product specification

Use of attention

1. identify the input / output interface identifier of the lightning protector, input the external line and output the connection device.

2. the grounding of industrial control signal lightning arrester should be connected to the grounding grid through electronic switches.

3. when installing, make sure that the "one" screw is installed in place, making the line combination firmly. If the installation is finished, the multimeter can be used to test whether the signal lines are connected. Do not install SPD on live line, otherwise it may damage SPD and equipment to be protected.

Company profile​

Thor is all about protecting against the damaging effects of power transients. It is our goal and mission to connect our customer challenges with high-quality, right-priced solutions and products – completed by unrivaled customer service and technical support.
following the international quality system standards, is ISO 9001 certified and our technical standards are in line with GB18802.1-2011/IEC61643-1.

Product packaging:Carton packing

Transportation method

  1. Express company: FEDEX,UPS,DHL,TNT

2. Trains, ships, aircraft transport
