Specifications
Brand Name :
KaiMiao
Model Number :
KMQL218
Certification :
Rohs, E-marks E24
Place of Origin :
China
MOQ :
1 pc
Price :
1 pc: US$220, ≥2 pcs: Negotiable
Payment Terms :
T/T, PayPal, MoneyGram
Supply Ability :
20000 pcs / month
Delivery Time :
3-5 working days
Packaging Details :
80*23*15cm,5.5-6 kg
Car Model :
MG ONE
Year :
2022+
ECU Color :
Black
Operating Temperature :
-30℃~80℃
Function :
Remote control, set the height, automatic and so on
Type :
Powered Liftgate Kit
Control Ways :
Key Fob, Dashboard Button, Tailgate Button
Features :
Convenience, Functionality
Description

MG One Auto Powered Tailgate With Remote Control And Kick Sensor Optional

Description:

This retrofit power tailgate lift assisting system opens and closes your rear door by simply pressing a button. It provides additional security and value to your vehicle. Installation is designed for the do-it-yourself and come with various brackets depending on your car.

Drivers will appreciate a convenient, easy-to-operate tail gate. With our smart electric tail gate systems, trunk lids and tailgates will open and close within seconds at the push of a button. If the lid encounters an obstacle the motor will stop automatically. Of course, the trunk lid can be stopped in any intermediate position.

Technical Parameter:

Parameters Description
Rated Voltage: 12V
Operating Voltage: 9-16V
Working Current: 5A (Instantaneous working current: <20A)
Operating Temperature: -30℃ ~ 80℃
Quiescent Current: <2mA
Storage Temperature: -40℃ ~ 90℃
Remote Control: Key Fob / Front Dash Button / Back Tailgate Button / Foot (Kick) Sensor (Optional)
MG One Auto Powered Tailgate With Remote Control And Kick Sensor Optional

Innovation Point:

1. Intelligent Induction: Anti-pinch force setting / Anti-collision force setting. (When the system detects the intention of the car owner of manually open and close the door, power liftgate system will be in the auxiliary state automatically.
2. Intelligent Speed Control: Through intelligent control such as slow start and decelaration, it can ensure that the tailgate runs smoothly and impact of the system is slowed down. At the same time, the lift of the motor is prolonged.
3. Abnormal Scene Processing: Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort.
4. Fault Detection: When the drive circuit is faulty (low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
5. Ultimate Energy Saving: Ultra-low quiescent current (Standby Current: 1 mA). It can avoid that the vehicle can not start without power due to long-term parking.

MG One Auto Powered Tailgate With Remote Control And Kick Sensor Optional

Question & Answer

Q1: What is a power liftgate?

A: A power liftgate is an automated rear trunk or hatch mechanism that allows users to open and close the trunk with the push of a button or through hands-free operation.

Q2: How does the hands-free operation work?

A: The hands-free operation typically uses a foot sensor located under the rear bumper. When you kick your foot under the bumper, the liftgate automatically opens, which is especially convenient when your hands are full.

Q3: Is a power liftgate safe?

A: Yes, power liftgates are equipped with safety features such as obstacle detection sensors that prevent the liftgate from closing on objects or individuals, ensuring safe operation.

Q4: Can I program the opening height of the liftgate?

A: Many power liftgate systems allow users to program the opening height, which is useful for avoiding low ceilings in garages or other spaces.

Q5: Can I manually open or close the liftgate?

A: Yes, power liftgates usually have a manual override feature, allowing users to open and close the trunk manually if needed.

Q6: Will a power liftgate drain my vehicle's battery?

A: While power liftgates do draw power from the vehicle's battery, they are designed to operate efficiently. However, frequent use while the engine is off can lead to battery drain.

Q7: Can I install a power liftgate on a vehicle that doesn’t have one?

A: Yes, aftermarket power liftgate kits are available for many vehicles, allowing owners to add this feature even if it wasn’t originally equipped.

Q8: What happens if the power liftgate stops working?

A: If the power liftgate malfunctions, check the fuse and electrical connections. If issues persist, it may require professional diagnosis and repair.

Q9: Are power liftgates available for all vehicle types?

A: Power liftgates are most commonly found in SUVs, minivans, and luxury vehicles, but they can also be added to other vehicle types through aftermarket kits.

Q10: How does a power liftgate enhance my vehicle's resale value?

A: Vehicles with modern features like a power liftgate are often more appealing to buyers, potentially increasing resale value due to the added convenience and functionality.

Feel free to ask if you have any more questions!

Package & Shipping

Package Size: 80*23*15 cm
Gross Weight: ≈5.5-6 kg

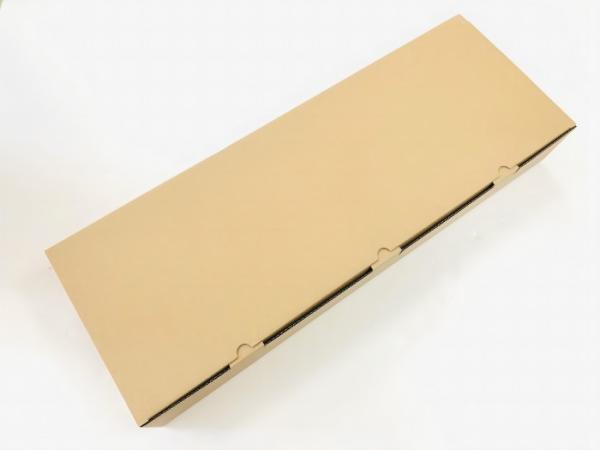

Package Type: Neutral Packing
Delivery time: In stock: 1-2 working days
Out of stock: 5-7 working days
