12000KVA AC Resonant Test System , Utilities High Voltage Resonant Test System
12000KVA AC Resonant Test System , Utilities High Voltage Resonant Test System
Specifications
Brand Name :
HNMC
Model Number :
MCBCX
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
50 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden Package
Application :
Utilities, lab
Output capacity :
50KVA-12000KVA
Output voltage :
0-1500KV
Working frequency :
30-300HZ
Description

Variable Frequency Resonant Test System 12000KVA MCBCX

Widely used in power utilities, industries departments and etc for testing of 6-220KV GIS, Transformer,

Instrument transformer, power cables and other capacitive test object.

Comprising of

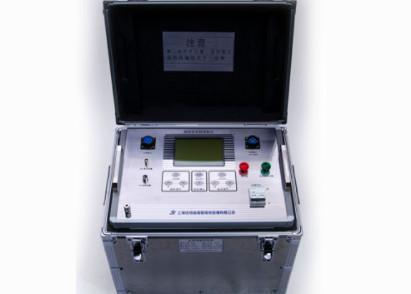

1) Variable Frequency control box

2) Excitation transformer

3) Reactor

4) Capacitance voltage divider

Technical Parameters

Output capacity 50kVA-12000kVA
Output voltage 0-1500KV
Power supply AC 380V+/-10%, 50/60HZ (3 phases)
Power supply AC 220V+/-10%, 50/60HZ (1 phase)
Working frequency 30-300Hz
Frequency resolution 0.01Hz
Output waveform Sinewave, distortion <1%
System test accuracy 1.0 (30-300HZ)
Testing voltage stability 1%

Function features

1. Adopting reactor and test power capacitor to setup LC resonance circuit, through output frequency

adjustment to find the resonance point, and get high test voltage on test object

2. It is one kind of new high voltage test method, high reliable and stability for testing.

After sales service

  • Our sales and technical team can guarantee a fast and highly efficient after sales service for our products sold.
  • Once problem happens in clients, firstly we will consider online support of our clients to solve it quickly; secondly we will consider to provide spare parts for client to replace after fixing reason.

We will provide best service to support your marketing field.
