12A Portable Meter Test Equipment Touch Screen USB port
12A Portable Meter Test Equipment Touch Screen USB port
Specifications
Brand Name :
HNMC
Model Number :
MCST01
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden Package
Accuracy class :
0.2, 0.1, 0.05, 0.02
Current range :
1mA-12A (direct mode)
Voltage range :
1-576V
Power supply :
45-450V AC
Application :
Lab, worksite
Test Function :
Error, dial test, CT ratio test, ....etc
Description

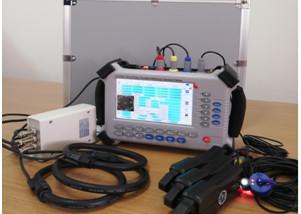

Portable Meter Test Equipment Three Phase Reference Standard Meter MCST01

Technical Parameters

Current Measure
Direct mode range 1mA-12A
Clamp-on CT mode range 5A, 100A, 300A…...2000A (optional)
Rogowski Coil mode 3000A…5000A…10000A (optional)
Accuracy

0.05% (10mA-12A)

0.2% (clamp-on CT mode)

1% (rogowski coil mode)
Resolution High resolution, Six digits valid value
Voltage Test
Range 1-576V, maximum can be 600V
Accuracy 0.05% (30-576V)
Resolution High resolution, Six digits valid value
Power/Energy Test
Accuracy (Active/apparent)

0.05% (direct current mode)

0.2% (clamp-on CT mode)

1% (rogowski coil mode)
Accuracy (reactive)

0.1%(direct current mode)

0.4% (clamp-on CT mode)

2% (rogowski coil mode)
Resolution High resolution, Six digits valid value
Frequency measure
Range 40-70HZ
Accuracy & Resolution ±0.01HZ & 0.001HZ
Phase Angle Measure
Range 0-360 deg. (0 - ±180deg.)
Accuracy ±0.05°(current input>10%Ib)
Resolution 0.001°
Power factor range 0-1
CT/VT Secondary burden test
Accuracy ＜±1%
Other parameters
Power supply

Auxiliary: AC 45-450V

Power supply from test circuit

Battery (optional)
Power consumption <13VA
Size & Weight 245*168*70 (mm) & 1.8KGS

1) Accuracy class (optional): 0.2, 0.1, 0.05, 0.02

2) Suitable for use in lab or on site.

3) Can test two meters at same time

4) 7” LCD display, touch screen operation

5) Harmonic times test up to 51 times

6) Demand Test/CT ratio test/polarity test/CT secondary burden test/VT secondary burden test

7) Accessories: scanning head, clamp-on CT, flexible rogoski coil, snap switch, current & voltage cables,

communication cable, user manual, PC software

Features

1) Test various electronics/electromechanical single and three phase meters, include basic wave meter

2) Measure and display basic error, voltage, current, power, power factor, energy, harmonics,frequency, etc

3) Display phase voltage (P-N), line voltage (P-P), line current, each phase/total power (P,Q,S),

each phase/total energy (P,Q,S), phase sequence, vector diagram, waveform, harmonics, distortion,

spectrogram, time & date and etc

4) Energy logged/recorded during testing

5) CT/PT ratio can be automatically multiple with meter constant for dial test

6) Dial test/ Real-burden test of MUT

7) Test of working conditions i.e. temperature & humidity

8) Store total energy including harmonics

9) Identification of incorrect wiring & connections

10) Big data storage space, can store 1000 test records

11) Support RS232/USB port
