480V Portable Meter Test Equipment , 0.02 Energy Meter Tester
480V Portable Meter Test Equipment , 0.02 Energy Meter Tester
Specifications
Brand Name :
HNMC
Model Number :
UTI-SR01
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Sets Per Month
Delivery Time :
30-45 days
Packaging Details :
Wooden Package
Accuracy class :
0.05, 0.02
Test Function :
Error Test, Start Test, Creep Test, dial..etc
Operation type :
PC software, touch screen
Voltage range :
30-375V
Current range :
1mA-120A
Harmonic :
2-31 times
Description

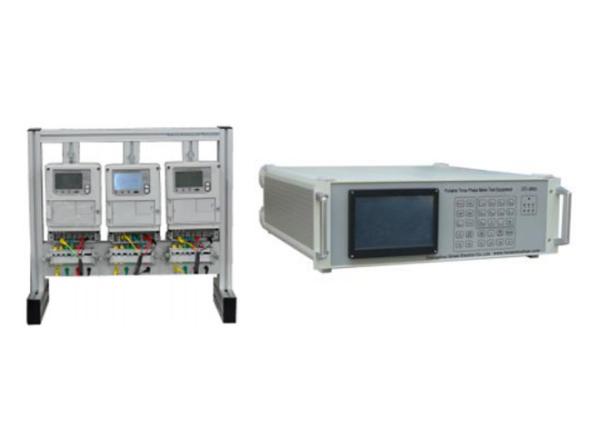

Portable Three Phase Meter Test Equipment UTI-SR01

1) In-built Standard Reference Meter (SRM): accuracy class 0.05 or 0.02 (optional)

2) Error test, start test, creep test, dial test..etc

3) Measurement of volts, current, p.f., power, frequency, phase angle, harmonic..Etc.

4) Linear amplifier

5) Can be independent set & output of each phase voltage & current

6) Can set phase angle independently

7) Meter Rack: three positions are optional

8) Automatic control by PC software

9) Manual control by touch screen/keypad

Technical Index

Accuracy class 0.05 or 0.02 (optional)
Measure range
Voltage 30-300V (P-N) (480V optional)
Current 1mA-120A
Frequency 45-70HZ, resolution 0.001HZ
Phase angle 0-359.99°, resolution 0.001°, error 0.03°
Voltage source
Range 30-375V (P-N)/51V-650V(P-P), resolution: 6 digits valid value
Output Accuracy 0.05%
Output power 50VA/phase
Output stability 0.02%/3mins
Output distortion <0.5%
Load regulation (0-100% load) 0.02%
Current source
Range 1mA-120A, resolution: 6 digits valid value
Output Accuracy 0.05%
Output power 100VA/phase
Output stability 0.02%/3mins
Output distortion <0.5%
Load regulation (0-100% load) 0.02%
Other parameters
Supply Voltage AC 88-284V, 50/60HZ
Dimension (approx) 510*600*170mm (main unit)

Configuration & Accessories List

Item Quantity
Main unit 1
Test Rack (1 or 3 positions) optional 1
Voltage cable 1 set
Current cable 1 set
Optical sensor 1 or 3 Nos
Communication cable 1
Power cord 1
User manual 1
PC software (CD) 1

Features

1) With in-built standard meter class 0.05 and with impulse outputs.

2) 7”LCD display

3) Can test various of single phase and three phase electromechanical /electronic energy meter

4) Can test and display voltage, current, phase, error, active energy, reactive energy, apparent energy,

power, phase angle, power factor, frequency and etc

5) With in-built error calculator to calculate error of meter under test

6) With enough protection, like short-circuit voltage, current open-circuit protection,

overload protection, over-voltage protection

7) 2-31 times harmonics test, adjustable harmonic amplitude (≤40%)

8) Dial test/Start test/Creep test

9) RS232 communication port with PC

10) Can save test data 500pcs up

11) With two impulse inputs, can get connect with external reference when need, work together

with error processing system of unit and then comparing error, through connecting one power meter

12) With one option for choice between internal reference meter mode or external reference meter mode.

13) Have configuration where you can set the pulse value like pulse/wh or wh/pulse or pulse/kwh or kwh/pulse
