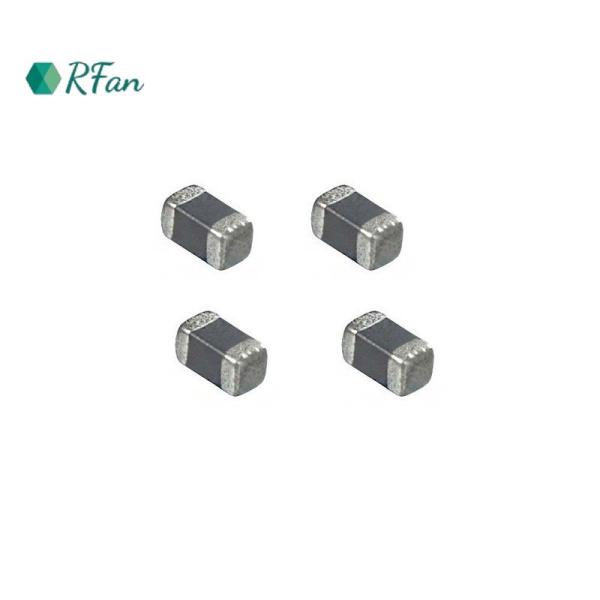

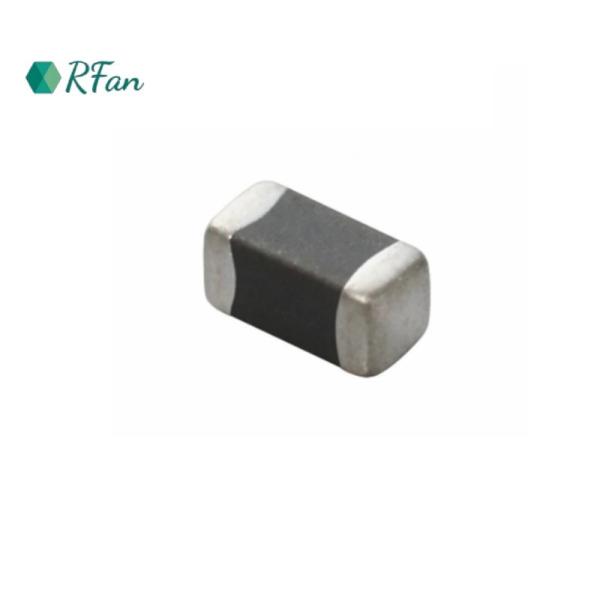

0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing
0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing
0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing
0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing
0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing
0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing
Specifications
Brand Name :
RFan
Place of Origin :
China
MOQ :
4000
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100K/Month
Delivery Time :
5-8days
Packaging Details :
4000
Installation Type :
Welding
Lead Length :
Customized
Lead Spacing :
2.5MM
Dielectric Strength :
500VAC
Mounting Type :
Through Hole, Surface Mount
Certifications :
UL, CSA, VDE, TUV
Flow Soldering :
Support
Description

0603-471 Chip Ceramic PTC Thermistor Overheating Protection Ceramic Resettable CPTC Thermistor For Temperature Sensing

0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing

Surface mount type Ceramic positive temperature coefficient thermistor for Temperature sensing applications

Features

1. Excellent thermal response due to small size

2. Suitable for countermeasure to short circuit test in safety standard.

3. Stable resistance after operation due to ceramic PTC.

4. Similar size is possible due to the large capacity for electric power.

5. Solid-state construction provides excellent mechanical vibration and impact resistance.

6. The SMD type's small size and light weight are helpful in miniaturizing the circuit.

Applications

1. DC/DC converter
2. AC power adapter
3. Inverter inverter
4. Overheating protection for transistors and integrated circuits
5. LED

Structure and size

0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing

NO SIZE(EIA) L1 W H max. L2 and L3
TPM0 0402 1.00±0.15 0.50±0.10 0.50±0.10 0.20±0.10
TPM1 0603 1.60±0.15 0.80±0.15 0.80±0.15 0.40±0.20

TPM2

0805

2.00±0.20

1.25±0.20

 1.00 max.

0.45±0.25

1.45

(Only applicable to TPM2S150N130R)

Electrical Characteristics

0603 Series

Part No.

 25℃Rated Resistance Sensing temperature @ 1 KΩ Max Voitage(V) Operating temperature range
R25 Ts1 Vmax TL~TU
(Ω) (℃) (VDC) (℃)
TPM1S101N115R

100

 115±7

24

 -25 ~ +130
TPM1S101N130R 130±7 -25 ~ +145

Part No.

 25℃Rated Resistance Sensing temperature @ 2.2KΩ Max Voitage(V) Operating temperature range
R25 Ts2 Vmax TL~TU
(Ω) (℃) (VDC) (℃)
TPM1S221N090R

220

 90±7

24

 -25 ~ +105
TPM1S221N105R 105±7 -25 ~ +120

Part No.

 25℃Rated Resistance Sensing temperature 1 @ 4.7 KΩ Sensing temperature 2 @ 47 KΩ Max Voitage(V) Operating temperature range
R25 Ts1 Ts2 Vmax TL~TU
(Ω) (℃) (℃) (VDC) (℃)
TPM1S471P065R

470

 65±5 --

32

 -25 ~ +80
TPM1S471P075R 75±5 -- -25 ~ +90
TPM1S471P080R 80±5 -- -25 ~ +95
TPM1S471P085R 85±5 -- -25 ~ +100

Part No.

 25℃Rated Resistance Sensing temperature 1 @ 4.7 KΩ Sensing temperature 2 @ 47 KΩ Max Voitage(V) Operating temperature range
R25 Ts1 Ts2 Vmax TL~TU
(Ω) (℃) (℃) (VDC) (℃)
TPM1S471P095R

470

 95±5 --

32

 -25 ~ +110
TPM1S471P100R 100±5 -- -25 ~ +115
TPM1S471P105R 105±5 -- -25 ~ +120
TPM1S471P110R 110±5 -- -25 ~ +125
TPM1S471P115R 115±5 -- -25 ~ +130
TPM1S471P125R 125±5 -- -25 ~ +140
TPM1S471P135R 135±5 -- -25 ~ +150
TPM1S471P065RT

470

 65±5 80±7

32

 -25 ~ +90
TPM1S471P075RT 75±5 90±7 -25 ~ +100
TPM1S471P085RT 85±5 100±7 -25 ~ +110
TPM1S471P095RT 95±5 110±7 -25 ~ +120
TPM1S471P105RT 105±5 120±7 -25 ~ +130
TPM1S471P115RT 115±5 130±7 -25 ~ +140
TPM1S471P125RT 125±5 140±7 -25 ~ +150
TPM1S471P130RT 130±5 145±5 -25 ~ +155
TPM1S471P135RT 135±5 150±7 -25 ~ +160

Part No.

 25℃Rated Resistance Sensing temperature @ 4.7MΩ Max Voitage(V) Operating temperature range
R25 Ts2 Vmax TL~TU
(KΩ) (℃) (VDC) (℃)
TPM1S102P095R

1

 95±5

32

 -25 ~ +110
TPM1S102P105R 105±5 -25 ~ +120
TPM1S102P115R 115±5 -25 ~ +130

Part No.

 25℃Rated Resistance Sensing temperature @ 4.7MΩ Max Voitage(V) Operating temperature range
R25 Ts Vmax TL~TU
(KΩ) (℃) (VDC) (℃)
TPM1S103P075R

10

 75±5

32

 -25 ~ +90
TPM1S103P080R 80±5 -25 ~ +95
TPM1S103P110R 110±5 -25 ~ +125
TPM1S103P120R 120±5 -25 ~ +135
TPM1S103P130R 130±5 -25 ~ +145
TPM1S473P130R 47 130±5 -25 ~ +145


Resistance temperature characteristic curve (typical)

SMD0603 R25=1KΩ SMD 0603 R25=10KΩ
TPM1S102PXXXR TPM1S103PXXXR

0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing

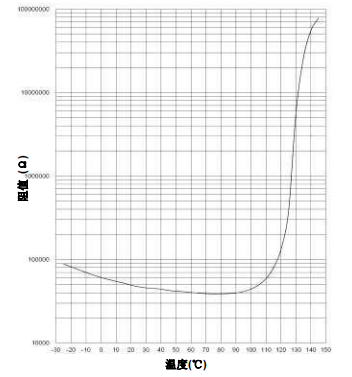

SMD 0603 R25=47KΩ

TPM1S473P130R

0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing
Typical Application Circuit

0603-471 Ceramic Ptc Sensor For Overheating Protection Temperature Sensing

Packaging

Size(EIA) Quantity(Pcs/roll)
0402 10,000
0603 4,000
0805 3,500
