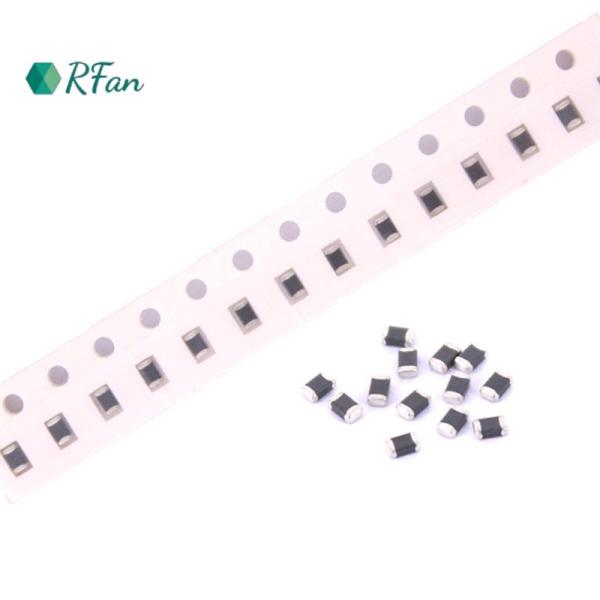

0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter
0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter
0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter
0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter
0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter
0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter
Specifications
Brand Name :
RFan
Place of Origin :
China
MOQ :
4000
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100K/Month
Delivery Time :
5-8days
Packaging Details :
4000
Flow Soldering :
Support
Item Name :
PTC thermistor
Termination Style :
Radial
Usage :
over current over load protection
Dimension :
5mm -20mm
Temperature :
-40℃ ~ +85℃
Description

0805-681 SMD CPTC Ceramic PTC Thermistorf Of Temperature Sensing For AC Power Adapter

0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter

Surface mount type Ceramic positive temperature coefficient thermistor for Temperature sensing applications

Features

1. Excellent thermal response due to small size

2. Suitable for countermeasure to short circuit test in safety standard.

3. Stable resistance after operation due to ceramic PTC.

4. Similar size is possible due to the large capacity for electric power.

5. Solid-state construction provides excellent mechanical vibration and impact resistance.

6. The SMD type's small size and light weight are helpful in miniaturizing the circuit.

Applications

1. DC/DC converter
2. AC power adapter
3. Inverter inverter
4. Overheating protection for transistors and integrated circuits
5. LED

Structure and size

0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter

NO SIZE(EIA) L1 W H max. L2 and L3
TPM0 0402 1.00±0.15 0.50±0.10 0.50±0.10 0.20±0.10
TPM1 0603 1.60±0.15 0.80±0.15 0.80±0.15 0.40±0.20

TPM2

0805

2.00±0.20

1.25±0.20

 1.00 max.

0.45±0.25

1.45

(Only applicable to TPM2S150N130R)

Electrical Characteristics

0805 Series

Part No.

 25℃Rated Resistance Sensing temperature @1KΩ Max Voitage(V) Operating temperature range
R25 Ts Vmax TL~TU
(Ω) (℃) (VDC) (℃)
TPM2S150N130R 15 130±7 32 -25 ~ +145

Part No.

 25℃Rated Resistance Sensing temperature @1KΩ Max Voitage(V) Operating temperature range
R25 Ts Vmax TL~TU
(Ω) (℃) (VDC) (℃)
TPM2S101N110R

100

 110±7

24

 -25 ~ +125
TPM2S101N115R 115±7 -25 ~ +130
TPM2S101N130R 130±7 -25 ~ +145

Part No.

 25℃Rated Resistance Sensing temperature @ 4.7 KΩ Max Voitage(V) Operating temperature range
R25 Ts Vmax TL~TU
(Ω) (℃) (VDC) (℃)
TPM2S471P065R

470

 65±5

32

 -25 ~ +80
TPM2S471P075R 75±5 -25 ~ +90
TPM2S471P085R 85±5 -25 ~ +100
TPM2S471P090R 90±5 -25 ~ +105
TPM2S471P095R 95±5 -25 ~ +110
TPM2S471P100R 100±5 -25 ~ +115

Part No.

 25℃Rated Resistance Sensing temperature @ 4.7 KΩ Max Voitage(V) Operating temperature range
R25 Ts Vmax TL~TU
(Ω) (℃) (VDC) (℃)
TPM2S471P105R

470

 105±5

32

 -25 ~ +120
TPM2S471P115R 115±5 -25 ~ +130
TPM2S471P120R 120±5 -25 ~ +135
TPM2S471P125R 125±5 -25 ~ +140
TPM2S471P135R 135±5 -25 ~ +150

Part No.

 25℃Rated Resistance Sensing temperature Resistance Max Voitage(V) Operating temperature range
R25 Ts Ts-5℃ Ts+5℃ Ts+15℃ Vmax TL~TU
(Ω) (℃) (KΩ) (KΩ) (KΩ) (VDC) (℃)
TPM2S681P070R

680

 70

≦5.5

≧ 13.3

≧40

32

 -40 ~ +125
TPM2S681P080R 80 -40 ~ +125
TPM2S681P090R 90 -40 ~ +125
TPM2S681P095R 95 -40 ~ +125
TPM2S681P100R 100 -40 ~ +125
TPM2S681P105R 105 -40 ~ +130
TPM2S681P110R 110 -40 ~ +135
TPM2S681P115R 115 -40 ~ +140
TPM2S681P120R 120 -40 ~ +145
TPM2S681P130R 130 -40 ~ +150

Part No.

 25℃Rated Resistance Sensing temperature @ 4.7MΩ Max Voitage(V) Operating temperature range
R25 Ts Vmax TL~TU
(KΩ) (℃) (VDC) (℃)
TPM2S103P110R

10

 110±5

32

 -25 ~ +125
TPM2S103P130R 130±5 -25 ~ +145

Resistance temperature characteristic curve (typical)

SMD寸 0805 R25=100Ω SMD 0805 R25=470Ω
TPM2S101NXXXR TPM2S471PXXXR

0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter

SMD 0805 R25=15Ω

TPM2S150N130R

0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter
Typical Application Circuit

0805-681 SMD CPTC Ceramic PTC Temperature Sensor For AC Power Adapter

Packaging

Size(EIA) Quantity(Pcs/roll)
0402 10,000
0603 4,000
0805 3,500
