WMZ5-D20102□X1BB PTC Ceramic Thermostat Heater 240V Φ20x2.3mm 1000Ω
WMZ5-D20102□X1BB PTC Ceramic Thermostat Heater 240V Φ20x2.3mm 1000Ω
WMZ5-D20102□X1BB PTC Ceramic Thermostat Heater 240V Φ20x2.3mm 1000Ω
WMZ5-D20102□X1BB PTC Ceramic Thermostat Heater 240V Φ20x2.3mm 1000Ω
Specifications
Brand Name :
RFan
Model Number :
MZ3-M221RME
Certification :
UL.TUV.ROHS
Place of Origin :
China
MOQ :
1000
Price :
0.03-0.5
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1KK/M
Delivery Time :
5-7days
Packaging Details :
1000/Bag
Applications :
Temperature Monitoring and Control
Package :
Foam Packaging
Type :
Thermal Resistor
Temperature Coefficient :
PTC
Technology :
PTC temperature sensor
Encapsulation :
DO-35
Switch Temp :
120℃
Terminal :
2.0 Copper Strip Terminal
Description

WMZ5-D20102□X1BB PTC Ceramic Thermostat Heater 240V Φ20x2.3mm 1000Ω PTC Heater PTC Thermistor For Heating

WMZ5-D20102□X1BB PTC Ceramic Thermostat Heater 240V Φ20x2.3mm 1000Ω

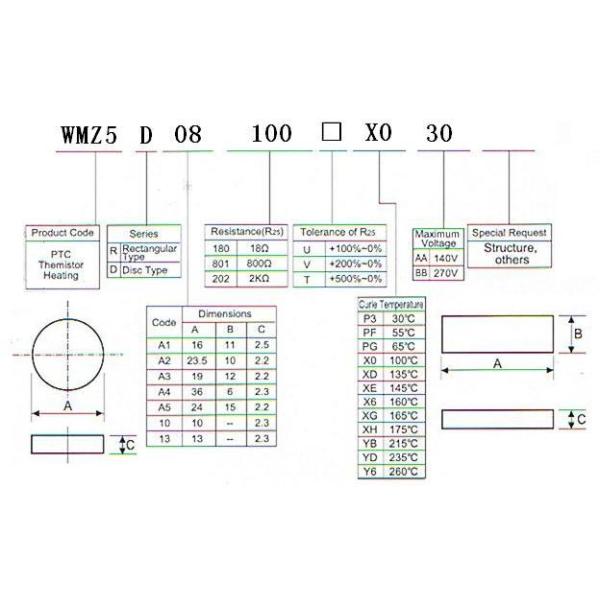

Part No.

Switching

Temperature

Surface temperature

Rated

Resistance

Rated

voltage

Max

Voltage

 Size(mm)
Tc(℃) Tsurf(℃) R25(Ω) U(V) Vmax(V) A±1 B±0.1 C±0.2
WMZ5-D08100□X030 100 110 10 24 30 8 　 1.5
WMZ5-D08102□P3BB 30 50 1000 240 270 8 　 3
WMZ5-D08102□X1BB 110 130 1000 240 270 8 　 2.3
WMZ5-D08180□X030 100 110 18 24 30 8 　 1.5
WMZ5-D10102□XDBB 135 155 1000 240 270 10 　 2.3
WMZ5-D10102□XGBB 165 180 1000 240 270 10 　 2.3
WMZ5-D10180□X060 100 110 18 43 60 10 　 2.3
WMZ5-D10201□X5BB 150 170 200 220/240 270 10 　 2.3
WMZ5-D10301□X6AA 160 175 300 110 140 10 　 2.3
WMZ5-D10501□X3BB 130 150 500 240 270 10 　 2.3
WMZ5-D10501□X7BB 170 185 500 240 270 10 　 2.3
WMZ5-D10501□XDBB 135 155 500 240 270 10 　 2.3
WMZ5-D13102□PFBB 55 75 100 240 270 13 　 2.3
WMZ5-D13150□PG60 65 75 15 42 60 13 　 1.5
WMZ5-D13152□YBBB 215 230 1500 240 270 13 　 2.5
WMZ5-D13152□YDBB 235 250 1500 240 270 13 　 2.5
WMZ5-D13360□X430 140 150 36 24 30 13 　 1.3
WMZ5-D13680□XE60 145 155 68 42 60 13 　 1.3
WMZ5-D14501□XHBB 175 190 500 220/240 270 14 　 2.4
WMZ5-D17150□X560 150 160 15 42 60 17 　 1.4
WMZ5-D20102□X1BB 110 130 1000 240 270 20 　 2.3
WMZ5-D20102□X4BB 140 160 1000 240 270 20 　 2.3
WMZ5-D20362□YDBB 235 250 3600 240 270 20 　 2.5
WMZ5-D203R6□X760 170 180 3.6 42 60 20 　 1.4
WMZ5-RA1181□P7AA 70 90 180 100/120 140 16 11 2.5
WMZ5-RA1301□P7AA 70 85 300 100/120 140 16 11 2.5
WMZ5-RA1701□P8BB 80 100 700 220/240 270 16 11 2.5
WMZ5-RA2301□Y3AA 230 250 300 100/120 140 23.5 10 2.2
WMZ5-RA2501□P9BB 90 110 500 220/240 270 23.5 10 2.2
WMZ5-RA2701□Y4BB 240 255 700 220/240 270 23.5 10 2.2
WMZ5-RA3801□Y1BB 210 230 800 220/240 270 19 12 2.2
WMZ5-RA4501□Y4BB 240 255 500 220/240 270 36 6 2.3
WMZ5-RA5102□Y6BB 260 275 1000 220/240 270 24 15 2.2
