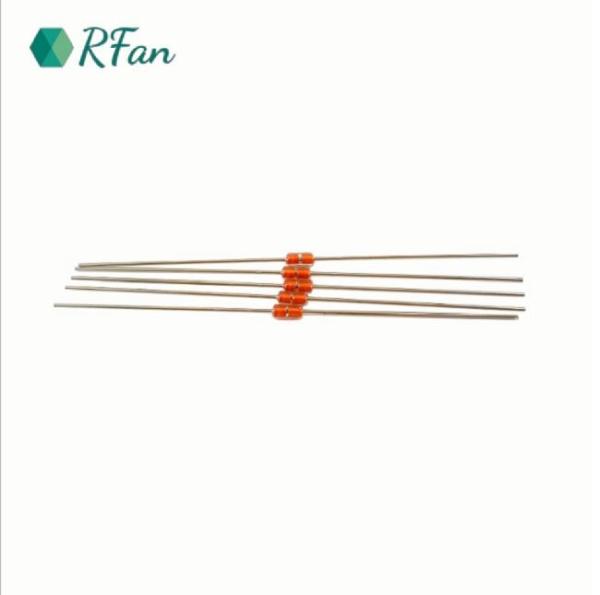

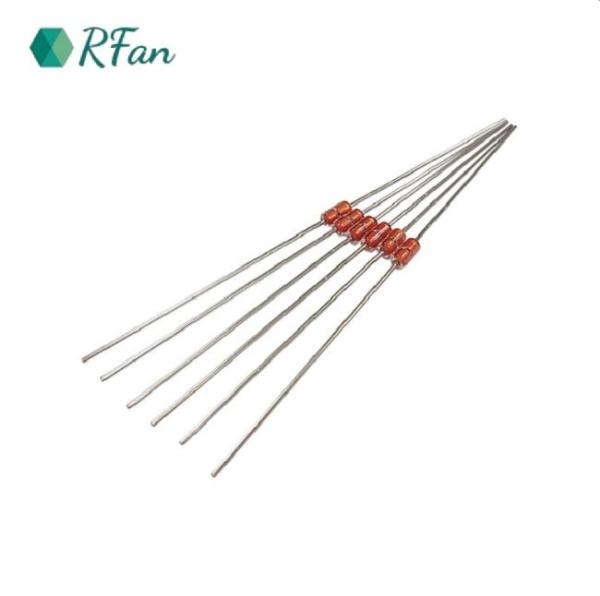

MF58-103F3950 10K NTC Thermistor Temperature Measurement Chip In Glass
MF58-103F3950 10K NTC Thermistor Temperature Measurement Chip In Glass
MF58-103F3950 10K NTC Thermistor Temperature Measurement Chip In Glass
MF58-103F3950 10K NTC Thermistor Temperature Measurement Chip In Glass
Specifications
Brand Name :
RFan
Model Number :
MF58
Certification :
UL.TUV.ROHS
Place of Origin :
China
MOQ :
2000PCS
Price :
0.2-0.6
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1KKpcs/month
Delivery Time :
5-7days
Packaging Details :
1000/Bag
Cable :
UL4411# 24AWG
Feature :
Small Size, Strong Power
Resistance Value :
2K-200K
Thermistor :
Power NTC Thermistor
Operating Temperature :
-40℃~125℃
Length :
5mm
Thermal Time :
55/70/90sec
Ntc Thermistor :
MF74 25A NTC Negative Temperature
Transport Package :
Carton Packing
Type :
Chip NTC Thermistor
Description

MF58-103F3950 10K Temperature Measurement Chip In Glass NTC Thermistor Negative Temperature Coefficient NTC Thermistor

MF58-103F3950

Applications

◎Air-Conditioner.Heating Apparatus

◎Electric Thermometer

◎ Liquid leve sensor

◎Automoblie electronic Electric table-board

Characteristic

◎ Small size

◎ High testing precision

◎ Fast response

◎ Good quality ofcoherence and interchange

◎ It can be used in such worse environment as high temperature and humdity etc.

Dimensions(mm)

MF58-103F3950 10K NTC Thermistor Temperature Measurement Chip In Glass


Technical requirements:

1)Zero Power Resistance: R25:10KΩ±1%；
2)B-value:B25/50: 3950K±1%；
3) Φ 0.5tinned copper-weld steel wire；
4)Glass shell package；
5)Meet environmental protection requirements:RoHS.
Electrical Characteristics
No.
Item
Symbol		 Test conditions
Unit		 Requirements
1
Zero Power Resistance at 25℃		 R25℃
Ta=25±0.01℃
Test Power≤0.1mW		 KΩ 10KΩ±1%
2 B-value B25/50 B=[(Ta×Tb)/(Tb-Ta)]×1n(Ra/Rb)
Ta=25±0.01℃ Tb=50℃±0.01℃		 K 3950±1%
3 Thermal dissipation Coefficient δ

In still air		 mW/

℃		 ≥2
4
Thermal time constant		 τ

In still air		 sec ≤20
5 withstand voltage / 1500V/AC 1min

No breakthrough
and flash over
6

Insulation resistance		 / 500V/DC 1min MO ≥500
7 Operating temperature range / / ℃ -55℃~250℃
8 Maximum rated power Pmax / mW 50
9 R&T-table / / /
10
Resistance tolerance&B-value
tolerance		 / / /

MF58-103F3950 10K NTC Thermistor Temperature Measurement Chip In Glass
