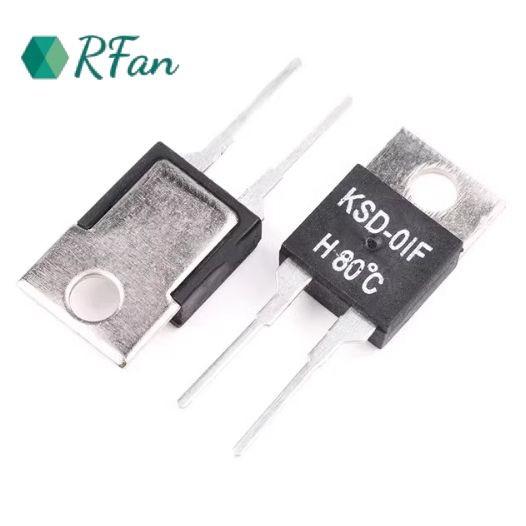

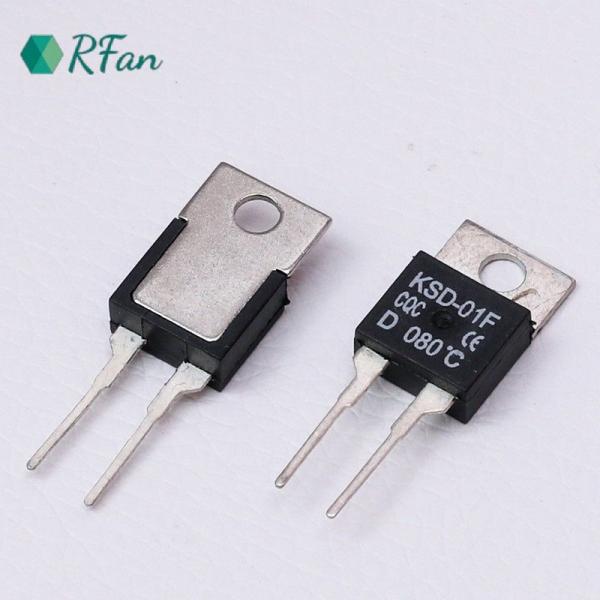

KSD01F Thermal Protector Thermal Resettable Fuse 250V AC For Circuit Board
KSD01F Thermal Protector Thermal Resettable Fuse 250V AC For Circuit Board
KSD01F Thermal Protector Thermal Resettable Fuse 250V AC For Circuit Board
KSD01F Thermal Protector Thermal Resettable Fuse 250V AC For Circuit Board
Specifications
Brand Name :
RFan
Model Number :
KSD01F
Certification :
UL.CE.TUV.ROHS
Place of Origin :
China
MOQ :
1000
Price :
0.3-0.6
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1KK/M
Packaging Details :
1000/Bag
Reset Temperature :
Less than 85% of rated temperature
Certifications :
UL, CSA, VDE, CQC
Product Type :
Electrical components
Rated Voltage :
250V AC
Response Time :
Less than 5 seconds
Rated Current :
10A
Model :
TF Cutoff
Terminal Type :
Axial lead
Insulation Resistance :
More than 100MΩ
Dielectric Strength :
AC 1500V for 1 minute
Description

KSD01F Thermal Protector Thermal Safety Cutoff Thermal Resettable Fuse For Circuit Board

KSD01F Thermal Protector Thermal Resettable Fuse 250V AC For Circuit Board

Description:

KSD01F thermal protector is a plastic-sealed thermostat with touch-sensitive temperature chart, shell insulation, stable working performance, long life, product movement, sensitive and reliable non-arcing, easy installation, less radio interference, etc. , widely used in circuit boards, switching power supplies, chargers, ballasts and other fields.

Dimension (Unit mm):

KSD01F Thermal Protector Thermal Resettable Fuse 250V AC For Circuit Board

Electrical specifications​:

2A/30V DC
2A/120V AC
1A/240V AC

Features:

Shell insulation, small size, easy to install;

The action is sensitive, will not produce the electric arc;

It is more suitable for the installation and welding of printed circuit board under the condition of reaction automation equipment, and it can save a lot of expensive labor cost;

Temperature is pre-set before the factory, for a single temperature range control;

Resistant to water, salt water, alcohol, ammonia, trichloroethene and most organic solvents.

Applications:

Printed circuit board,

Power Systems,

computers and computer peripherals,

aircraft automation and test instrumentation,
