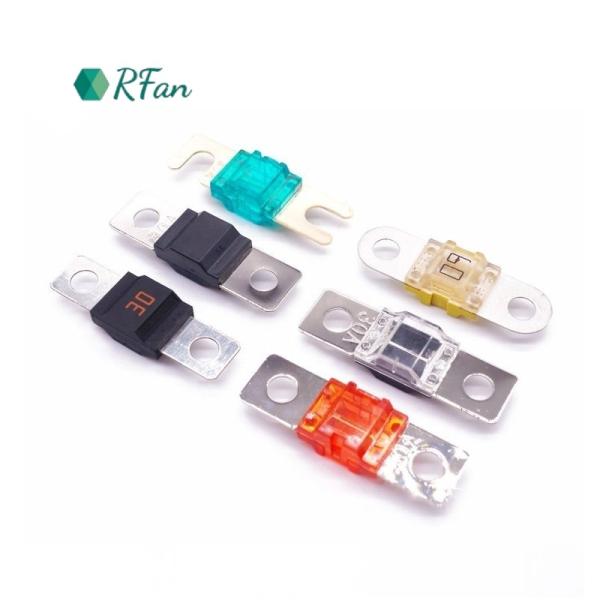

AFD Bolt-In ANS Mini Bolt-On Automotive Bolt Type Fuse Midi Fuse 30A-200A 32V
AFD Bolt-In ANS Mini Bolt-On Automotive Bolt Type Fuse Midi Fuse 30A-200A 32V
AFD Bolt-In ANS Mini Bolt-On Automotive Bolt Type Fuse Midi Fuse 30A-200A 32V
AFD Bolt-In ANS Mini Bolt-On Automotive Bolt Type Fuse Midi Fuse 30A-200A 32V
Specifications
Brand Name :
RFan
Model Number :
ANM-40A
Certification :
UL
Place of Origin :
China
MOQ :
1000
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100K/Month
Delivery Time :
5-8days
Lead Shape :
Axial
Ambient Temperature :
-40°C ~ +130°C
Lead Wire :
Tin Plated Copper
Base Temperature :
125℃
Certificates :
CUL,UL
Standards :
UL 248 -1 / -14
Description

AFD 30A-200A 32V Bolt-In ANS Mini Bolt-On Bolt Type Automobile Fuse Automotive Fuse Midi Fuse

Specifications

Product name: Automotive MIDI AFD ANS Fuse


Product size: 42*8.5*12mm


Rated current: 30A-200A


Rated voltage: 32V DC


Safety certification: National standard


Mount Type: Stud mount


Product packaging: 1. Bulk packaging: 100PCS per plastic bag


Product advantages: (1) Small size, small space, easy to install and use
(2) Shell insulation, flame retardant

Notes

Interrupting Ratings: 1000Amp at 32V DC

Ambient temperature:-40~100 °C

Fuse Mounting: M5 Threaded Stud And Hex Nuts

Body: Thermoplastic

Fuse- link: Alloy material,Tin plated

Rated Current Rated Voltage Color Voltage drop
30A 32V Orange 105mV
40A 32V Green 90mV
50A 32V Red 80mV
60A 32V Yellow 80mV
70A 32V Brown 80mV
80A 32V Clear 75mV
100A 32V Blue 75mV
125A 32V Pink 75mV
150A 32V Gray 70mV
175A 32V Tan 70mV
200A 32V Violet 70mV

Electrical Characteristics

Test According to lSO 8820-5

% of Ampere Rating Opening time
75% (150~200A) min 360000 sec
100% (30~125A ) min 360000 sec
110% (30~125A) min 14400 sec
150%(30~125A) 90~3600 sec
200%(30~125A) 3~100 sec
200% (150~200A) 1~15 sec
300%(30~125A) 0.3~3 sec
350% (150~200A) 0.3~5 sec
500%(30~125A) 0.1~1 sec
600%(150~200A) 0.1~1 sec
