Bolt Down ANM Automotive Micro Fuses 200A 400A 500A 300 AMP
Bolt Down ANM Automotive Micro Fuses 200A 400A 500A 300 AMP
Bolt Down ANM Automotive Micro Fuses 200A 400A 500A 300 AMP
Bolt Down ANM Automotive Micro Fuses 200A 400A 500A 300 AMP
Bolt Down ANM Automotive Micro Fuses 200A 400A 500A 300 AMP
Bolt Down ANM Automotive Micro Fuses 200A 400A 500A 300 AMP
Specifications
Brand Name :
RFan
Model Number :
ANM-40A
Certification :
UL
Place of Origin :
China
MOQ :
1000
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100K/Month
Delivery Time :
5-8days
Lead Shape :
Axial
Ambient Temperature :
-40°C ~ +130°C
Lead Wire :
Tin Plated Copper
Base Temperature :
125℃
Certificates :
CUL,UL
Standards :
UL 248 -1 / -14
Description

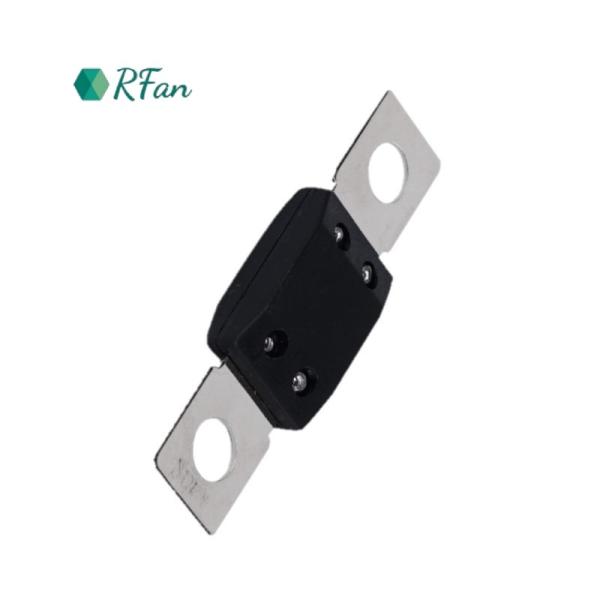

Black Bakelite Bolt Down Type Car ANM Automotive Auto High Current 200A 400A 500A 300 AMP Fuse

Description

ANM Bakelite Fuse is designed for high current circuit protection up to 500A. ANM Fuse also provides time delay characteristics. This fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.

Features

* Reliable Circuit Protection

* High Conductivity Plating

* Maximum Current Transfer

* 40-500 Amp - 5pcs/Pack

* MEGA style fuses

Drawing(Unit:mm)

Bolt Down ANM Automotive Micro Fuses 200A 400A 500A 300 AMP

Specifications

1. Rated Current: 40A to 500A;

2. Interrupting Rating: 2000A@32VDC;

3. Voltage Rating: 32VDC;

4. Operating Temperature Range: -40C ~ 125C;

5. Terminals: Copper/Zn alloy.

6. Housing Material: PA66/PPA(33% or 35%GF);

7. Mounting torque: 12- 18Nm W/M8;

Functional Characteristics

TESTING CURRENT BLOW TIME LIMIT
100% 4 Hr. minimum
135% 1 20seconds--- 1800seconds
200% 1seconds --- 15 seconds
350% 0.3sec-5sec
600% 0.1seC- 1sec

Fuse List

ITEM ITEM RATING ASSEMBLY P/N
1 32V 40A * ANM-40A
2 32V 60A * ANM-60A
3 32V 80A ANM-80A
4 32V 100A ANM-100A
5 32V 125A ANM-125A
6 32V 150A ANM-150A
7 32V 175A ANM-175A
8 32V 200A ANM-200A
9 32V 250A ANM-250A
10 32V 300A ** ANM-300A
11 32V 350A ** ANM-350A
12 32V 400A ** ANM-400A
13 32V 450A ** ANM-450A
14 32V 500A ** ANM-500A

►"*" not mentioned in ISO standards;
► "**" is only for short circuit protector.
