Diameter 1 Inch High Performance Over 12000gs Sintered Ndfeb Magnetic Tube Stainless Steel 304/316

Specifications

Brand Name :

Awesotech Magnetics

Certification :

ISO9001

Place of Origin :

MOQ :

10pcs

Price :

10USD

Payment Terms :

T/T, D/P, D/A, Western Union, MoneyGram, L/C

Supply Ability :

1000pcs per month

Delivery Time :

15days

Packaging Details :

L28x25x15cm

Material :

NdFeB Magnet, 304/316 Tube Material

Gauss :

10000Gauss

Max.Temperature :

80℃

Description

Magnetic tube can be served for the magnetic separator which consists of magnetic grate. It can remove iron contained impurities and small metal particles effectively. Diameter of conventional magnetic tube is 25mm or 1 inch. The longest length can reach 2500mm.

Diameter 1 Inch High Performance Over 12000gs Sintered Ndfeb Magnetic Tube Stainless Steel 304/316

Features

1. Magnetic Strength: Up to 12000gauss

2. Shell Material: from SS304, SS316 and SS316L

3. Shell Finishing: High Polishing

4. Size: Standard 25mm(1 inch) in diameter with any length up to 2500mm, Customerized sizes are available here.

5. Working Temperature: Normal bellows 80℃ or can be in 350℃ for max.

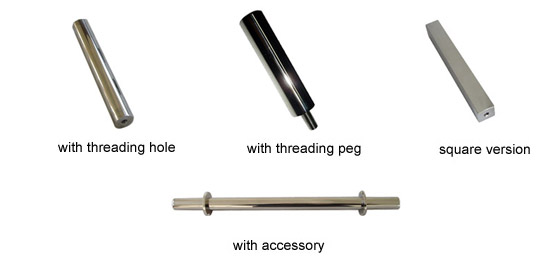

6. Types of End: Nail head, eye nuts, thread hole, threaded rod and other kind of ends for necessary mounting.

Diameter 1 Inch High Performance Over 12000gs Sintered Ndfeb Magnetic Tube Stainless Steel 304/316

Item No.	D(mm)	L(mm)	N.W.(g)
MT-100	25	100	385
MT-150	25	150	574
MT-200	25	200	765
MT-250	25	250	956
MT-300	25	300	1148
MT-400	25	400	1530
