2.5T,5.0T,10.0T Spread Anchor 100KG, 170KG force Magnetic Recess Former For Rubber Basement Holding
2.5T,5.0T,10.0T Spread Anchor 100KG, 170KG force Magnetic Recess Former For Rubber Basement Holding
2.5T,5.0T,10.0T Spread Anchor 100KG, 170KG force Magnetic Recess Former For Rubber Basement Holding
2.5T,5.0T,10.0T Spread Anchor 100KG, 170KG force Magnetic Recess Former For Rubber Basement Holding
2.5T,5.0T,10.0T Spread Anchor 100KG, 170KG force Magnetic Recess Former For Rubber Basement Holding
2.5T,5.0T,10.0T Spread Anchor 100KG, 170KG force Magnetic Recess Former For Rubber Basement Holding
Specifications
Brand Name :
MEIKO
Model Number :
RMRF-2.5,5.0,10.0
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
USD1-USD10 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
7 days
Packaging Details :
Carton size: L35x25x15cm
Coating :
Galvanized
Diameter :
L144mm, L220mm
Loading Capacity :
100KG, 170KG force
Material :
Q235 Steel Plate, NdFeB Magnet
Rod :
D10, D13
Description

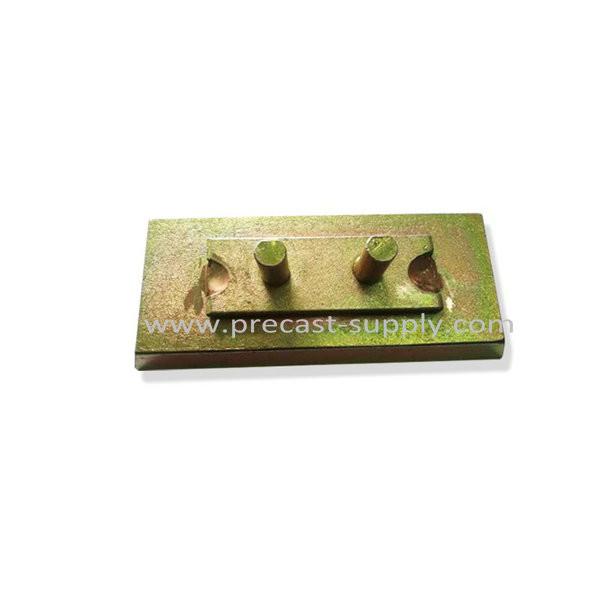

Spread Anchor Magnetic Recess Formers serve for fixing spread anchors with steel formwork. The magnetic plate is milled conical, to make the rubber basement easier when installing. Due to integrated powerful neodymium magnets, it can attach the steel forms firmly. It's quite easy to position and move whereever you need it to be and release the moulding after production.

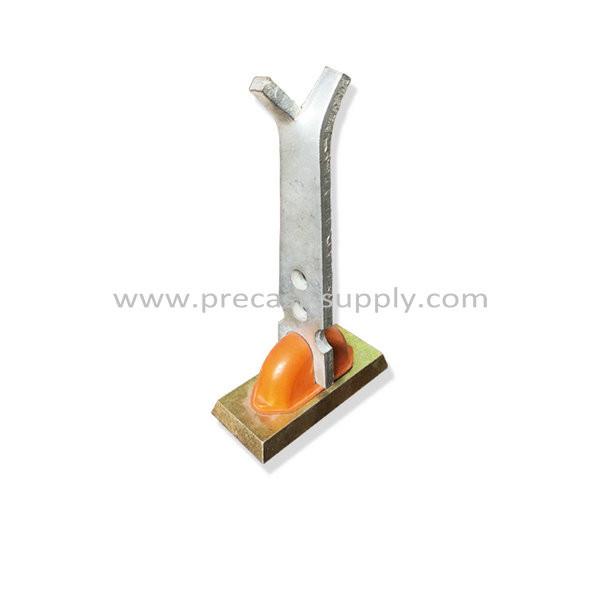

This kind of spread anchor recess former magnets are used in conjunction with rubber basement to hold the spread anchors in place.We are filled with specifications as L144x64mm(100KG) for 2.5t anchor, L144x64mm(100KG) for 5.0t, L220x100mm(170KG) for 10.0t. Other dimensions and power capacities are available to produce as you requested.

DATA SHEET

Type L L1 Rod Force
mm mm mm kg
2.5T 144 64 10 100
5.0T 144 64 10 100
10.0T 220 100 15 170

FEATURES

  • Easy set up and release
  • Durable & Reuse
  • Cost-saving, compared to rubber recess former with bolt locking in.
  • High efficience
  • 2.5T,5.0T,10.0T Spread Anchor 100KG, 170KG force Magnetic Recess Former For Rubber Basement Holding
