900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete
900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete
900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete
900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete
900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete
900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete
900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete
900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete
Specifications
Brand Name :
Meiko
Model Number :
SM-900, 1350, 1800, 2100KG
Certification :
ISO9001
Place of Origin :
ANHUI, CHINA
MOQ :
50pcs
Price :
USD1-USD10 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
7 days
Packaging Details :
Carton Size: L35x25x15cm
Material :
Carbon Steel, Neodymium Magnet
Veritical Power Capacity :
900KG, 1350,1500, 1800, 2100KG Force
Dimension :
L230x40x25mm
N.W. :
2KG per piece
Description

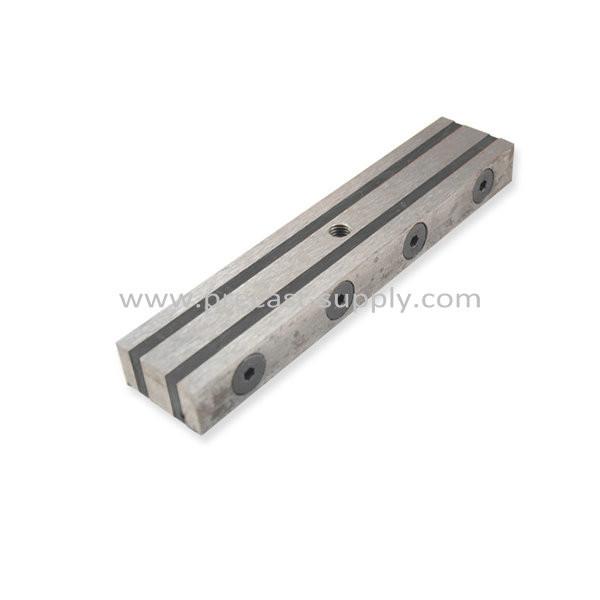

Magnetic Block System is a key part for shuttering magnets, which assemblied with permanent rare earth magnets and steel plate. Normally it's filled with epoxy material or stainless steel ring to protect magnets from rusty or concrete leaking.

900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete

Due to our rich experiences on precast concrete projects' following, we, Meiko Magnetics, are capable of designing and producing all sized magnetic solutions for precast concrete elements factory, no matter box magnets, inserted magnets, pipe magnets, magnetic recess former or other magnetic systems in precast applications.

900KG, 1000KG, 1800KG, 2100KG Magnetic System for Precast Concrete

KEY BENEFITS OF Precast Shuttering Magnet:
1. Reducing the complexity and time of the installation of formwork (up to 70%).
2. Universal use for mass production of concrete products, and piece products of all forms on the same steel table.
3. Eliminates the need for welding, shuttering magnets does not damage the steel table.
4. Makes it possible to produce radial products. Formwork Shuttering Magnet for Precast Plant
5. A small cost of a set of magnets. The average payback of about 3 months.
6. The main advantage of the shuttering magnets is that you do not need to have a lot of different forms for different products, you need to have a set of magnets, adapters for different height boards and steel table. Precast Concrete Shuttering Magnet Box 900kg

Type L W H Screw Force N.W.
mm mm mm 　 KG KG
SM-450 170 60 40 M12 450 1.8
SM-600 170 60 40 M12 600 2.3
SM-900 280 60 40 M12 900 3.0
SM-1350 320 90 60 M16 1350 6.5
SM-1800 320 120 60 M16 1800 7.2
SM-2100 320 120 60 M16 2100 7.5
SM-2500 320 120 60 M16 2500 7.8
