Product Description:

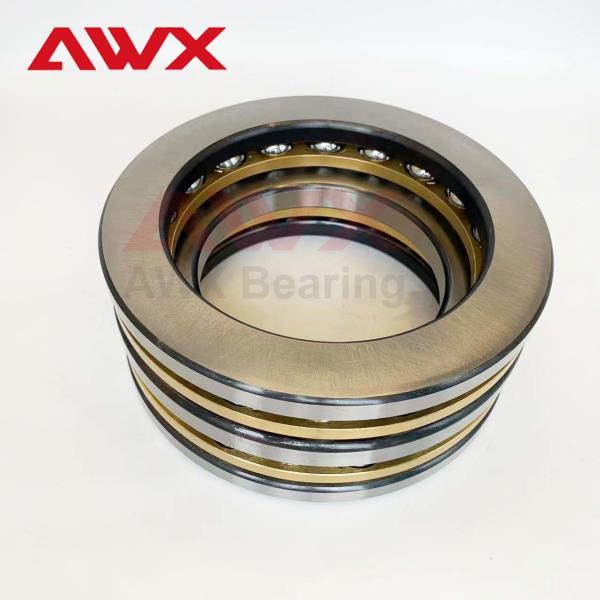

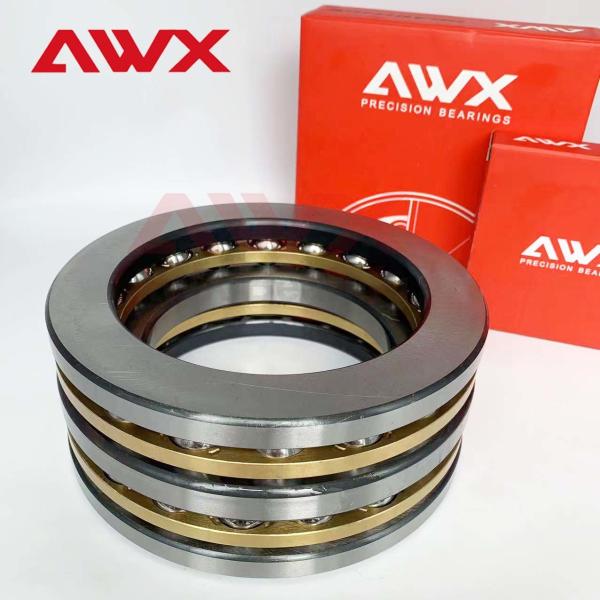

Thrust Ball Bearings are rolling bearings designed to carry axial loads (loads in the direction of the axis). They usually consist of one or two bearing rings, one or more balls and a cage, and can operate normally without any radial load.

The basic structure of a thrust ball bearing includes:

Inner and outer rings: The inner ring is mounted on the shaft, and the outer ring is fixed to the housing or supporting structure.

Ball: Located between the inner and outer rings, it is responsible for carrying axial loads.

Cage: It is used to fix the ball in a certain position to prevent direct contact between the balls, thereby reducing friction and wear.

Tip: Here are only part of the model numbers. Please contact us for full catalog.

52202	54202	54202U
52204	54204	54204U
52405	54405	54405U
52205	54205	54205U
52305	54305	54305U
52406	54406	54406U
52206	54206	54206U
52306	54306	54306U
52407	54407	54407U
52207	54207	54207U
52307	54307	54307U
52208	54208	54208U
52308	54308	54308U
52408	54408	54408U
52209	54209	54209U
52309	54309	54309U
52049	54049	54049U
52210	54210	54210U
52310	54310	54310U
52410	54410	54410U
52211	54211	54211U
52311	54311	54311U
52411	54411	54411U
52212	54212	54212U
52312	54312	54312U
52412	54412	54412U
52413	54413	54413U
52213	54213	54213U
52313	54313	54313U
52214	54214	54214U
52314	54314	54314U
52414	54414	54414U

Features:

Design Structure:

Thrust ball bearings consist of two grooved rings (outer and inner) and a cage or separator that holds the balls in place. They are available in single-direction and double-direction designs, which allow axial loads to be supported in one or both directions.

Load Capacity:

Thrust ball bearings are primarily designed to handle axial loads (forces parallel to the shaft). However, they are not suitable for radial loads.

Type of Balls:

Thrust ball bearings typically utilize steel or ceramic balls, providing high strength and durability. The smooth surface of these balls ensures low friction and efficient operation.

Material:

Thrust ball bearings are commonly made from high-quality carbon steel or stainless steel, which enhances their fatigue resistance and overall lifespan.

Speed Limitations:

Generally, thrust ball bearings are not designed for high-speed applications. Their operational speed is usually limited compared to other bearing types.

Application:

Thrust ball bearings are widely used in machinery that require precise axial positioning, such as in screw drives, automotive applications (like clutches and gear assemblies), and specialized equipment (like machine tools).

Installation:

Care must be taken during installation to ensure proper alignment and clearance for optimal performance.

Lubrication:

Thrust ball bearings require adequate lubrication (oil or grease) to minimize friction and wear and to dissipate heat, ensuring smooth operation.

Temperature Tolerance:

Thrust ball bearings can operate within a specific temperature range, influenced by the type of lubricant used; excessive heat can lead to premature bearing failure.

Maintenance:

Regular maintenance, including inspection and re-lubrication, is crucial to prolonging the life of the bearing and ensuring efficient operation.

Applications:

Axial bearings are used in a wide variety of industries to support axial loads and maintain proper positioning of components. Below are some examples:

Axial bearings are commonly used in clutch assemblies, gearboxes, and transmission systems to support axial loads and maintain the correct positioning of components.

In the aerospace industry, axial bearings are employed in aircraft engines and landing gear systems where precise control of axial loads is critical for safety and performance.

In the industrial machinery sector, axial bearings are found in milling machines, lathes, and other equipment where high precision axial load handling is necessary, especially during machining operations.

Renewable energy industries use axial bearings in wind turbines to support the rotor assembly and manage axial loads due to wind forces acting on the turbine blades.

Axial bearings are commonly applied in cranes and excavators where axles and support structures require efficient load handling and stability.

In the marine industry, axial bearings are used in ship propellers and thrusters to manage axial thrust loads, ensuring the effectiveness of propulsion systems.

Axial bearings are incorporated into train brake systems and wheel assemblies to support axial forces and enhance operational safety on railways.

Pumps and compressors utilize axial bearings to help accommodate axial loads from the rotating elements in centrifugal pumps and compressors.

Textile machinery typically uses axial bearings in spinning and weaving machines to ensure precise control of moving parts under axial loads.

Electric motors and generators require axial bearings to manage axial loads and maintain component alignment and performance.

Packing and Shipping:

Product Packaging:

• Thrust Ball Bearing
• Protective plastic wrapping
• Sturdy cardboard box

Shipping:

• Ships within 24 hours of order confirmation
• Standard shipping via UPS or FedEx
• Tracking number provided upon shipment

FAQ:

Q: What is the brand name of this Thrust Ball Bearing?

A: The brand name of this Thrust Ball Bearing is AWX.

Q: What is the model number of this Thrust Ball Bearing?

A: The model number of this Thrust Ball Bearing is 52205.

Q: What is the minimum order quantity for this Thrust Ball Bearing?

A: The minimum order quantity for this Thrust Ball Bearing is 10 pieces.

Q: What is the price range of this Thrust Ball Bearing?

A: The price range of this Thrust Ball Bearing is between 0.1-0.4 USD per piece.

Q: What is the packaging detail for this Thrust Ball Bearing?

A: The packaging detail for this Thrust Ball Bearing is a single box.

Q: What is the delivery time for this Thrust Ball Bearing?

A: The delivery time for this Thrust Ball Bearing is 30 days.

Q: What are the payment terms for this Thrust Ball Bearing?

A: The payment terms for this Thrust Ball Bearing are L/C, D/A, D/P, T/T, Western Union, and MoneyGram.

Q: What is the supply ability for this Thrust Ball Bearing?

A: The supply ability for this Thrust Ball Bearing is 10000 pieces.
