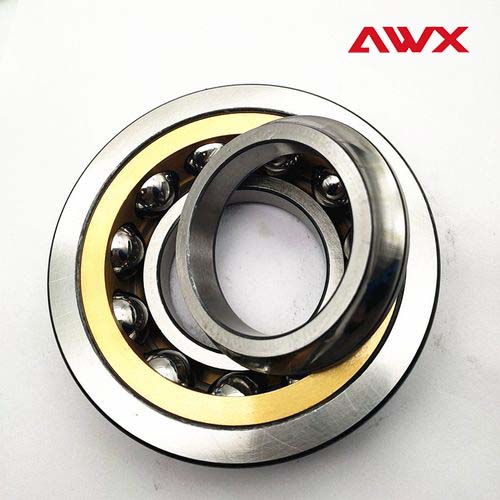

High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9
High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9
High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9
High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9
Specifications
Brand Name :
AWX
Place of Origin :
China
Certification :
CE/ISO
MOQ :
10pcs
Packaging Details :
carton
Delivery Time :
2-7
Supply Ability :
1000000
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Model Number :
3200 ATN9
Name :
Angular Contact Ball Bearing Double Row
Availability :
Have Stocks
Row :
Double
Part Number :
3200 ATN9
Grease :
Mobil Polyrex EM,Kyodo Yushi SRL
Trade Terms :
FOB,CFR,CIF,EXW
Rolling Element :
Balls
Cage Type :
Pressed Steel Cage
Contact angle :
30 °
Description

3200ATN9 3201ATN9 3202ATN9 3302ATN9 Mobil Polyrex EM Grease Double Row Angular Contact Ball Bearing

Product Description:

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions

High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9

Features:

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9
Technical Parameters:
Model Principal dimensions d[in] Principal dimensions D[in] Principal dimensions B[in]
3200ATN9 0.394 1.181 0.551
3200ATN9/C3 0.394 1.181 0.551
3201A-2ZTN9 0.472 1.26 0.626
3201ATN9 0.472 1.26 0.626
3202ATN9 0.591 1.378 0.626
3302ATN9 0.591 1.575 0.472
3203ATN9 0.669 1.575 0.689
3303ATN9 0.669 1.85 0.874
3204A 0.787 1.85 0.811
3204A-2RS1 0.787 1.85 0.811
3204A-2Z 0.787 1.85 0.811
3304A 0.787 2.047 0.874
3205A 0.984 2.047 0.811
3205A-2Z 0.984 2.047 0.811
3305A 0.984 2.441 1
3305A-2Z 0.984 2.441 1
etc.
High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9

Applications:

  • Industrial pumps
  • Industrial gearboxes
  • Renewable energy
  • Compressors
  • Industrial electric motors & generators
  • Trucks, trailers and buses
  • Metals
High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9

High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9High Speed Angular Contact Ball Bearing Double Row 3200ATN9 3201ATN9 3202ATN9 3302ATN9

FAQ:

Q1: What is the brand name of this Angular Contact Ball Bearing?

A1: The brand name of this product is AWX.

Q2: What is the place of origin of this Angular Contact Ball Bearing?

A2: This product is made in China.

Q3: Does this Angular Contact Ball Bearing have any certification?

A3: Yes, this product has CE/ISO certification.

Q4: What is the minimum order quantity for this Angular Contact Ball Bearing?

A4: The minimum order quantity for this product is 10pcs.

Q5: What are the packaging details for this Angular Contact Ball Bearing?

A5: This product is packaged in a carton.

Q6: What is the delivery time for this Angular Contact Ball Bearing?

A6: The delivery time for this product is within 7 days.

Q7: What is the supply ability of this Angular Contact Ball Bearing?

A7: The supply ability of this product is 1000000.
