Specifications
Brand Name :
AWX
Model Number :
61820
Certification :
CE/ISO
Place of Origin :
china
MOQ :
10pcs
Price :
0.01-0.4 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union
Supply Ability :
1000000 PCS
Delivery Time :
within 7days
Packaging Details :
carton
Model No :
4217 ATN9
Size :
100*125*13mm
Static state Cor :
99.96
Vibration Acceleration :
Z Z1 Z2 Z3 Z4
Seals Type :
Open
Sample :
Avaliable
Vibration Tolerance :
VV1 V2 V3 V4
Outline size / chamfer :
2
Radial Clearance :
C2 Co C3 C4 C5
Description

Product Description:

Thin-wall bearings are a special type of bearings, characterized by a ratio of the inner diameter to the outer diameter of the bearing that is less than a specified value (usually less than 1.25), so the bearing wall is relatively thin, hence the name thin-walled bearings. Thin-walled bearings are mainly composed of inner rings, outer rings, rolling elements, and cages. Among them, the inner ring and outer ring are the main parts of the thin-walled bearing, the rolling elements roll between the inner and outer rings, and the cage is used to keep the rolling elements in a stable position to prevent them from colliding with each other. The inner and outer rings of thin-walled bearings are usually made of high-strength materials, such as stainless steel, high-carbon steel, etc., to ensure their load-bearing capacity and stability. The rolling elements are made of spherical or cylindrical high-hardness materials, such as ceramic balls, carbide balls, etc., to improve the rotation accuracy and wear resistance of the bearings. The cages are mostly made of lightweight materials, such as aluminum alloys, polymers, etc., to reduce the overall weight of the bearing.

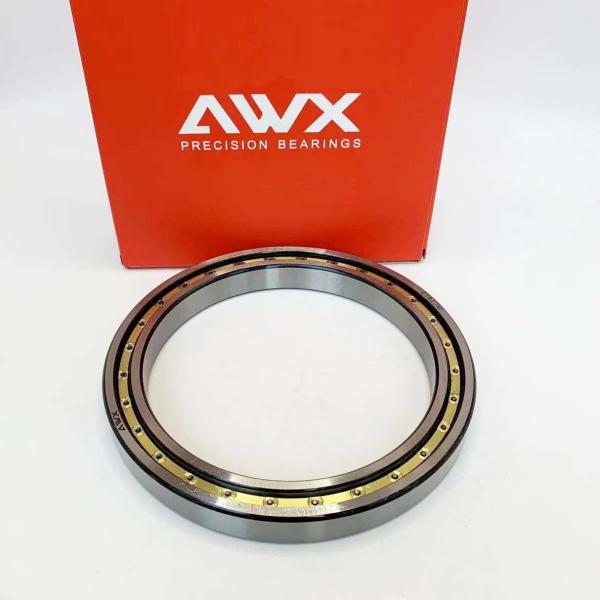

61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications

61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications

Features:

1. Lightweight and compactness: Since the inner and outer ring walls of thin-walled bearings are relatively thin, the overall weight is light and the structure is compact. This design makes thin-walled bearings particularly useful in applications where space is limited, and can reduce the size and weight of the overall equipment.
2. High precision: Thin-walled bearings generally have high dimensional accuracy and rotational accuracy. This makes them excel in applications that require precise control of rotational motion, such as precision machine tools, instrumentation, and medical equipment.
3. High load capacity: Although thin-walled bearings have thin walls, they can still withstand fairly high loads. This is due to the high-strength materials used and the optimized structural design, which ensures the stability and reliability of the bearings when subjected to heavy loads.
4. Good running smoothness: The rolling element and cage design of thin-walled bearings helps to reduce vibration and noise during operation and provide smooth rotational motion. This is especially important for applications that require low noise and high precision.
5. Easy to install and maintain: The compact design of thin-walled bearings makes them relatively easy to install into equipment. At the same time, due to their relatively simple structure, maintenance and replacement are also relatively convenient.
6. Wide range of applications: Due to the above advantages, thin-walled bearings are widely used in various fields, including aerospace, automotive industry, precision machinery, medical equipment and robotics. These applications have different performance requirements for bearings, but thin-walled bearings can provide reliable solutions.
7. High speed capability: Thin-walled bearings usually also have high speed capabilities and can maintain stable performance at high speeds. This makes them advantageous in applications that require high-speed rotation, such as motors, fans and pumps.
8. Good corrosion resistance: Some thin-walled bearings are made of corrosion-resistant materials such as stainless steel and can work in harsh environmental conditions, such as environments with moisture, corrosive gases or liquids.

61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications

61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications

Technical Parameters:

Bearing Designations Boundary Dimensions( mm) Basic Load Rating(KN) Limiting Speed(r/min) Weight
d D B Cr Cor Grease Oil (kg)
61819 95 120 13 19.8 21.3 4500 5600 0.27
61820 100 125 13 20.1 22 4300 5300 0.28
61821 105 130 13 20.3 22.7 4000 5000 0.3
61822 110 140 16 28.1 30.7 3800 5000 0.5
61824 120 150 16 28.9 32.9 3400 4300 0.54
61826 130 165 18 37.9 42.9 3200 4000 0.736
61828 140 175 18 38.2 44.3 3000 3800 0.784
61830 150 190 20 49.1 57.1 2800 3400 1.114
61832 160 200 20 49.6 59.1 2600 3200 1.176
61834 170 215 22 61.5 73.3 2200 3000 1.545
61836 180 225 22 62.3 75.9 2000 2800 1.621
61838 190 240 24 75.1 91.6 1900 2600 2.1
61840 200 250 24 74.2 91.2 1800 2400 2.178
61844 220 270 24 76.4 97.8 1700 2200 2.369
61848 240 300 28 83.5 108 1500 1900 4.5
61852 260 320 28 95 128 1300 1700 4.85
61856 280 350 33 135 178 1200 1600 7.4
61860 300 380 38 162 222 1100 1400 11
61864 320 400 38 168 235 1000 1300 11.8
61868 340 420 38 174 265 1000 1300 12
61872 360 440 38 182 285 1100 1400 11.8
61876 380 480 46 235 348 800 1000 20.5
61880 400 500 46 247 405 950 1200 21.7
61884 420 520 46 251 425 950 1180 22
61888 440 540 46 251 425 950 1180 23.6
61892 460 580 56 322 538 860 1000 33.5
61896 480 600 56 315 610 870 1100 36

Company Profile:

61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications

Applications:

Thin-walled bearings are widely used in various fields due to their small size, light weight, compact structure and stable performance:

1. Precision machinery: such as precision machine tools, instruments and meters. The high precision and stability of thin-walled bearings can meet the strict requirements of these equipment for rotation accuracy.

2. Aerospace: Thin-walled bearings are also widely used in the aerospace field, such as rotating parts of aircraft, rockets and other equipment. Its lightweight and high efficiency help to reduce the weight of equipment and improve performance.

3. Automotive industry: In the automotive industry, thin-walled bearings are used in key parts such as engines, transmissions and suspension systems to improve the performance and reliability of automobiles.

4. Medical equipment: Due to the miniaturization and precision manufacturing characteristics of thin-walled bearings, they are widely used in various medical equipment, such as surgical instruments, diagnostic instruments and treatment equipment.

5. Robotics: With the continuous development of robotics, thin-walled bearings have been widely used in robot joints and rotating mechanisms to improve the robot's motion performance and stability.

61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications

Packing and Shipping:

Product Packaging:

The thin wall bearings are packaged in a sturdy cardboard box to protect them during shipping and storage. Each bearing is individually wrapped in a plastic bag to prevent any damage or contamination during transportation.

Shipping:

Our thin wall bearings are shipped via a reputable courier service to ensure fast and reliable delivery to our customers. We take great care in packaging and labeling each shipment to ensure that it arrives in good condition and is easy to identify.

61820 High-Performance Thin-Wall Bearings 618 Series with Copper Cages for Industrial Applications

FAQ:

Q:What's your after-sales service and warranty?
A: We promise to bear the following responsibilities when defective products were found:
1. Replacements would be sent with goods of your next order;
2. Refund for defective products if customers require.

Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.

Q:What's the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.

Q:How to place order?
A: 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
2. Proforma Invoice made and sent to you as the price agreed by both parts;
3. Deposit Payment after confirming the PI and we arrange production;
4. Balance paid before shipment or after copy of Bill of Loading.
