Specifications
Brand Name :
HIE
Model Number :
1014
Place of Origin :
CHINA
MOQ :
1000
Price :
0.9
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs/day
Delivery Time :
15 working days
Packaging Details :
Standard Export Packaging
Name :
Rotary damper
Torque Range :
10- 70kgf
Body Material :
PC
Pressure Angle :
360°
Oil :
Silicone Oil
Function :
Soft closing
Description

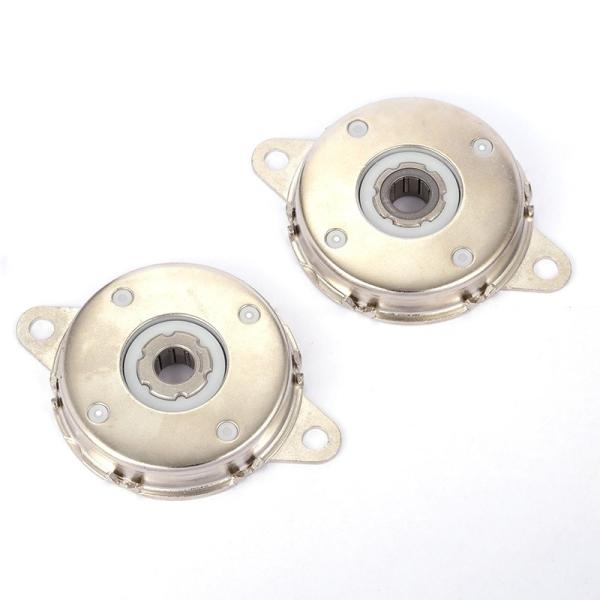

Torque 10 - 120kgf 360 - degree Rotating Damping Hinge for Big Machine and Equipment

1. Introduction

In the field of large - scale machinery and equipment, the demand for high - performance components is constantly growing. The 360 - degree rotating damping hinge with a torque range of 10 - 120kgf emerges as a groundbreaking solution. This hinge is specifically engineered to meet the unique requirements of large - scale machinery, integrating multiple features that effectively enhance the functionality, safety, and durability of the equipment.

2. Key Features

2.1 Wide Torque Range

The torque range of this hinge spans from 10kgf to 120kgf, fully demonstrating its adaptability. For components in large - scale machinery that require fine - tuned adjustments, such as the positioning of precision sensors or control panels, the lower torque setting around 10kgf provides just the right amount of resistance. This enables smooth and accurate movements without over - exerting force.
Conversely, in applications that demand heavy - duty rotation, like the operation of large - scale industrial valves or massive robotic arms, the 120kgf torque setting comes into play. It ensures that the hinge can withstand substantial loads and forces, enabling seamless operation even under the most demanding conditions.

2.2 Full 360 - degree Rotation

The ability of this hinge to achieve a full 360 - degree rotation sets it apart from traditional counterparts. In the realm of large - scale machinery, this unrestricted rotation function is of great significance. For example, in 360 - degree rotating platforms used in manufacturing assembly lines, with the help of this hinge, the platform can move freely in any direction. This not only facilitates the efficient loading and unloading of heavy components but also enables precise positioning in complex manufacturing processes.
In the case of large - scale agricultural machinery, if the connection points of implements such as sprayers or plows adopt this 360 - degree rotating hinge, operators can flexibly adjust the angles of the equipment, allowing it to perform optimally in different terrains and work scenarios.

2.3 Advanced Damping Mechanism

This hinge is equipped with an advanced damping mechanism, ensuring smooth and controlled rotation. When large - scale mechanical components are in motion, the damping mechanism dissipates kinetic energy, preventing sudden jerks or rapid movements.
Taking mining equipment as an example, during the operation of large - scale crushers or conveyor belts, the damping feature is particularly crucial. It helps to reduce the impact forces generated during the rotation of heavy components, thereby protecting the hinge and the connected parts from excessive wear and tear. This not only extends the service life of the machinery but also significantly improves the overall safety of the operation.

2.4 Robust Construction

Designed to endure the harsh tests of heavy - duty applications, this hinge features a robust construction. The housing is made of high - strength alloys, such as heat - treated steel or corrosion - resistant stainless steel. These materials can effectively resist mechanical stress, impact, and environmental factors like moisture and dust.
Its internal components, such as precision - engineered bearings and gears, are designed for long - term reliability. The bearings can withstand high loads and maintain smooth rotation, while the gears are optimized for efficient torque transfer. This durable construction ensures that the hinge can operate effectively in the harsh environments commonly associated with large - scale machinery and equipment.

3. Specifications

Model T1014
Torque 10 - 120kg
Shell Material High carbon steel
Shaft Material High carbon steel
Usage Temperature - 20 - 70℃
Max Use Angle No angle limitation

4. Benefits for Machinery Manufacturers

4.1 Enhanced Design Flexibility

Manufacturers of large - scale machinery can leverage the unique features of this hinge to create more innovative and versatile products. The 360 - degree rotation and adjustable torque offer more possibilities for mechanical design. For example, in the manufacturing of large - scale industrial robots, this hinge can be used to construct multi - axis movement functions, enabling robots to perform complex tasks with greater precision.

4.2 Improved Product Performance

The wide torque range and advanced damping mechanism contribute to the improvement of product performance. Machinery equipped with this hinge can operate more smoothly and efficiently. In large - scale manufacturing equipment, the precise control of rotation provided by this hinge reduces production errors and increases productivity. Its ability to handle heavy loads also makes it suitable for demanding industrial applications.

4.3 Cost - effective Solution

Although the initial investment in this high - quality hinge may be relatively high, it proves to be a cost - effective solution in the long run. The robust construction reduces the need for frequent repairs and replacements, saving both time and money. The improvement in machinery performance also increases production output and reduces downtime, further enhancing the cost - effectiveness for manufacturers.

5. Benefits for End - users

5.1 Increased Operational Efficiency

End - users of large - scale machinery can experience a significant boost in operational efficiency. The 360 - degree rotation and adjustable torque enable quick and easy adjustments of mechanical components. For example, in a power plant, this hinge can be used to adjust the position of large - scale turbines or generators, enabling more efficient energy production.

5.2 Enhanced Safety

The damping mechanism and robust construction of this hinge contribute to enhanced safety. In large - scale construction machinery, the damping feature can prevent sudden movements that could cause accidents. The durable construction ensures that the hinge can withstand harsh operating conditions, reducing the risk of component failures and potential hazards.

6. Applications

6.1 Industrial Manufacturing

In the industrial manufacturing sector, this hinge has a wide range of applications. For example, in the production of large - scale automotive parts, it can be used to rotate heavy - duty stamping machines or robotic welding arms. The 360 - degree rotation facilitates operators' access to different parts of the workpiece, and the high - torque performance ensures smooth operation.

6.2 Mining Equipment

In the mining industry, large - scale crushers, conveyor belts, and drilling rigs can all benefit from this hinge. It can be used to adjust the position of crusher jaws for optimal crushing results. In conveyor systems, the 360 - degree rotation can change the direction of the conveyor belt, improving the efficiency of material transportation.

6.3 Construction Machinery

Construction machinery such as cranes, excavators, and loaders can also make use of this hinge. In cranes, it can be used to rotate the crane boom, enhancing the flexibility of lifting operations. In excavators, the 360 - degree rotation can be applied to the cab or the bucket attachment, enabling better maneuverability in different construction sites.
Torque 10 - 120kgf 360 - Degree Rotating Damping Hinge For Big Machine And EquipmentTorque 10 - 120kgf 360 - Degree Rotating Damping Hinge For Big Machine And EquipmentTorque 10 - 120kgf 360 - Degree Rotating Damping Hinge For Big Machine And Equipment

7. Conclusion

The 360 - degree rotating damping hinge with a torque range of 10 - 120kgf is an outstanding component for large - scale machinery and equipment. Its wide torque range, 360 - degree rotation ability, advanced damping mechanism, and robust construction make it an ideal choice for enhancing the functionality, performance, and safety of large - scale machinery. Whether you are a machinery manufacturer looking to improve your product offerings or an end - user seeking more efficient and reliable equipment operation, this hinge has the potential to transform your operations. Contact us today to explore how this hinge can be customized to meet your specific needs.
