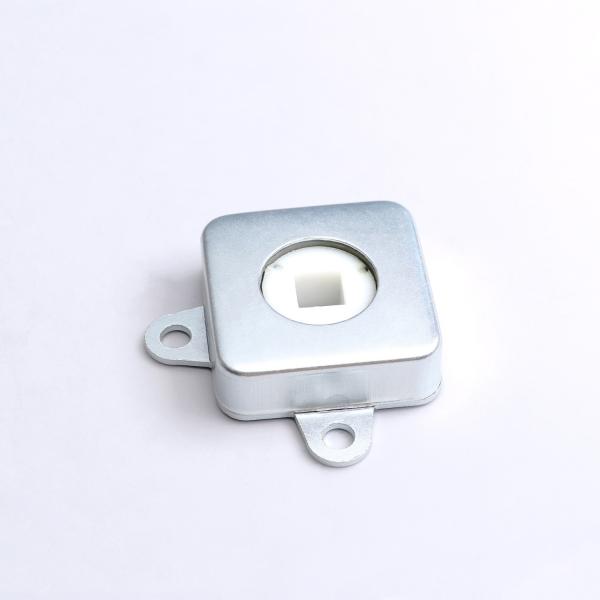

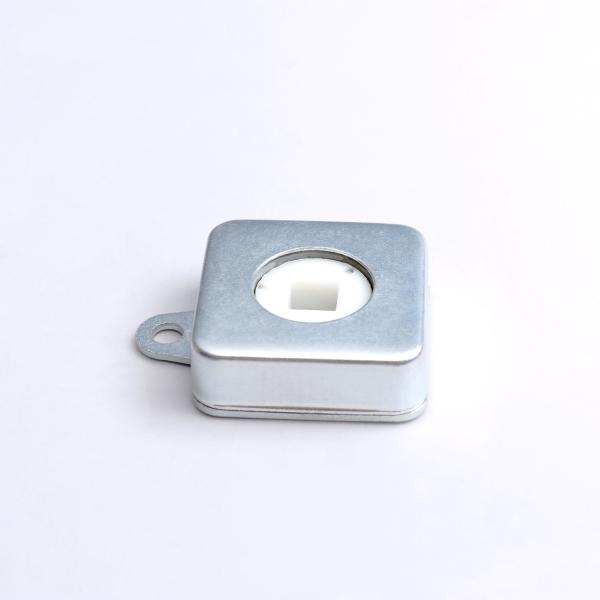

High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper
Specifications
Brand Name :
HIE
Model Number :
6301
Place of Origin :
CHINA
MOQ :
1000
Price :
0.9
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs/day
Delivery Time :
15 working days
Packaging Details :
Standard Export Packaging
Name :
Rotary damper
Torque Range :
0.5 - 10Nm
Body Material :
PC
Pressure Angle :
360°
Oil :
Silicone Oil
Function :
Soft closing
Description

High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Damper: Silicone Oil Soft - Close Rotary Disk Damper

In the realm of mechanical engineering and product design, the demand for efficient and reliable damping solutions has led to the development of innovative components. The high - torque 0.2 - 2 - 5.0 Nm one - way/two - way damper, specifically the silicone oil soft - close rotary disk damper, has emerged as a versatile and high - performing option. This damper combines the advantages of precise torque control, soft - close functionality, and the use of silicone oil for smooth operation, making it suitable for a wide range of applications.

1. Understanding the Basics of the Damper

Torque Range Significance

The ability to provide a torque range from 0.2 Nm to 5.0 Nm makes this damper highly adaptable. In applications where a relatively low torque is required, such as in some delicate mechanical devices or small - scale rotational mechanisms, the 0.2 Nm setting can offer just the right amount of resistance to control movement without over - damping. On the other hand, for more heavy - duty applications that demand substantial force to control rotational motion, the 5.0 Nm capacity ensures that the damper can handle the load. For example, in industrial machinery where large components need to be rotated with precision, the high - torque capabilities of this damper are crucial.

One - Way and Two - Way Operation

The option of one - way or two - way operation adds to the damper's versatility. In a one - way damper, the damping force is applied in a single direction of rotation. This is useful in applications where movement needs to be restricted or controlled in a specific rotational path. For instance, in a conveyor system where products are moved in one direction, a one - way damper can prevent reverse rotation of the conveyor belt, ensuring smooth and uninterrupted operation. In contrast, a two - way damper provides damping in both clockwise and counter - clockwise rotations. This is beneficial in applications like swivel chairs or adjustable machinery parts where movement in either direction needs to be controlled.
Specifications
  • Model R6301
    Torque 0.5 - 10 Nm
    Use Oil Silicone Oil
    Shell Material SGCC
    Shaft Material POM
    Usage Temperature - 20 - 70℃
    Max Use Angle 360°

2. The Role of Silicone Oil in the Rotary Disk Damper

Smooth Damping Action

Silicone oil is a key component in the operation of this rotary disk damper. When the damper is in use, the rotary disk moves through the silicone oil. The viscosity of the silicone oil creates resistance, which in turn generates the damping force. The smooth nature of silicone oil allows for a consistent and uniform damping action. Unlike some other fluids, silicone oil does not exhibit sudden changes in viscosity with temperature variations within a wide range. This means that the damper can provide reliable performance in different environmental conditions, whether it's in a cold storage facility or a warm industrial plant.

Soft - Close Feature

The use of silicone oil also enables the soft - close functionality of the damper. As the rotating part approaches the end of its movement, the silicone oil gradually increases the damping force. This results in a gentle deceleration, preventing any sudden impacts or slamming. In applications such as cabinet doors or drawers, the soft - close feature provided by the silicone oil - based damper enhances user experience. It not only protects the components from damage due to sudden closures but also creates a more pleasant and quiet environment.

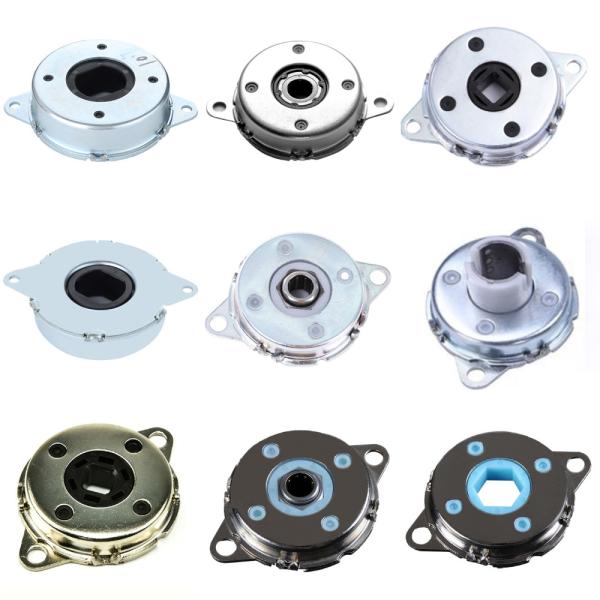

High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper

3. Applications in Different Industries

Automotive Industry

In the automotive industry, this high - torque damper finds applications in various components. In the steering system, a two - way damper can be used to provide a smooth and controlled feel when turning the steering wheel. The ability to adjust the torque according to different driving conditions, such as low - speed parking or high - speed highway driving, is crucial. In the suspension system, a one - way damper can help in controlling the movement of the wheels, especially when going over bumps or uneven terrain. The silicone oil's ability to provide consistent damping ensures a comfortable and stable ride for passengers.

Industrial Machinery

Industrial machinery often requires high - torque dampers to control the rotation of large and heavy components. In manufacturing plants, conveyors, robotic arms, and machine tools can benefit from the 0.2 - 5.0 Nm torque range. For example, in a robotic arm used for lifting and placing heavy objects, the damper can control the rotation speed and prevent sudden movements that could cause damage to the objects or the machinery itself. The one - way or two - way operation can be customized based on the specific requirements of the industrial process.

Furniture and Home Appliances

In furniture and home appliances, the soft - close feature of the damper is highly valued. In high - end cabinetry, the silicone oil soft - close rotary disk damper can be used on doors and drawers. It gives a more luxurious feel as the doors close gently and quietly. In some adjustable furniture pieces, like swivel chairs or adjustable tables, the damper's torque control allows for smooth and precise adjustments. In home appliances such as washing machines or dryers, the damper can be used to control the rotation of the drum, ensuring a balanced and quiet operation.

4. Design and Construction Considerations

Rotary Disk Design

The design of the rotary disk is optimized to work effectively with the silicone oil. The disk is often made of a high - strength material, such as metal or a specialized plastic, to withstand the forces during rotation. The surface of the disk may be textured or designed with specific grooves to enhance the interaction with the silicone oil. This design ensures that the damping force is evenly distributed and that the damper can operate smoothly over an extended period.

Sealing and Lubrication

Proper sealing is essential to prevent the silicone oil from leaking out of the damper. High - quality seals are used to enclose the silicone oil within the damper housing. Additionally, lubrication is crucial for the moving parts of the damper. The use of silicone oil not only provides damping but also acts as a lubricant for the rotary disk and other components. This reduces friction and wear, contributing to the long - term durability of the damper.

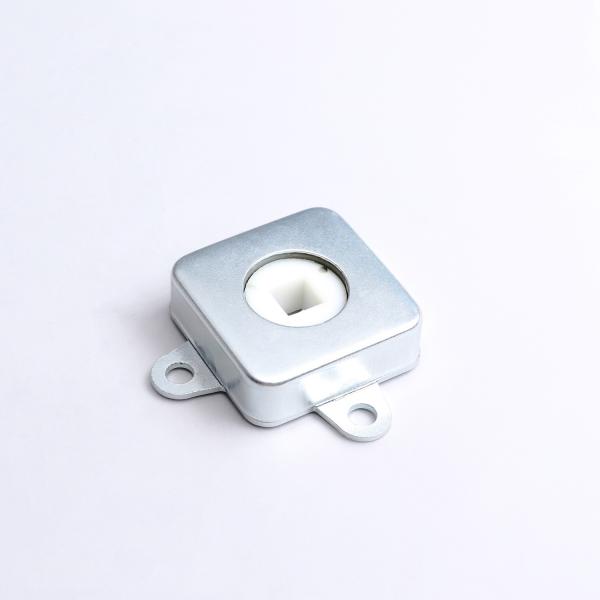

High Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk DamperHigh Torque 0.2 - 2 - 5.0 Nm One - Way/Two - Way Silicone Oil Soft Close Rotary Disk Damper

5. Conclusion

The high - torque 0.2 - 2 - 5.0 Nm one - way/two - way damper with its silicone oil soft - close rotary disk design is a remarkable component in the field of mechanical damping. Its wide torque range, one - way/two - way operation options, and the use of silicone oil for smooth and soft - close functionality make it suitable for a diverse range of applications across multiple industries. Whether it's enhancing the performance of automotive components, ensuring the efficient operation of industrial machinery, or adding a touch of luxury to furniture and home appliances, this damper offers a reliable and effective solution. If you are involved in product design, manufacturing, or improvement, considering the implementation of this high - torque damper can significantly enhance the quality and functionality of your products. Reach out to our team of experts to explore how this damper can be customized to meet your specific requirements and take your products to the next level.
