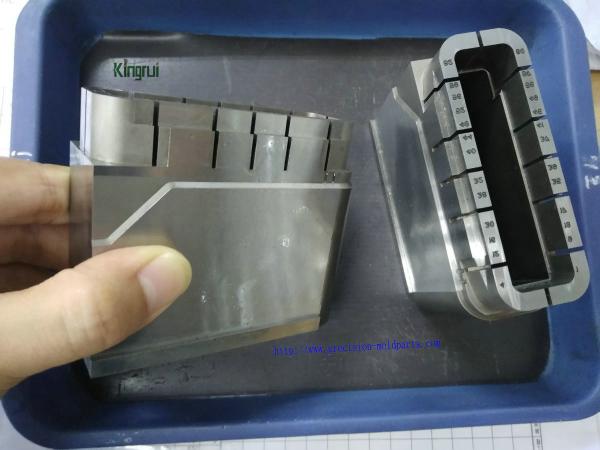

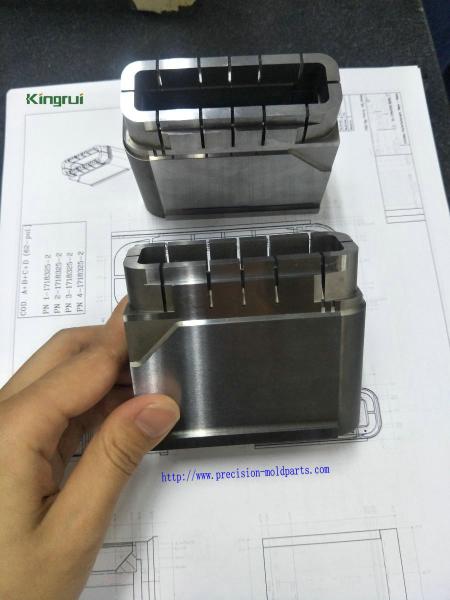

1. The Part Surface: The injection mold part shown now has no special toilet surface treatment, because it has reached the requirements of customer's injection mould after it has been processed by internal- external lapping. Of course, if your product is requested in this respect, you can let us know. Here are some kinds of surface treatment for your reference: mirror polishing, pvd coating, dlc coating and more.

2. The Part Material: DIN 1.2344/1.2343 steel

3. Any other material and dimension are determined by customers' demand.

4. The Part Usage: Automotive connector injection molds

5. The Part Manufacturing process: The injection mold parts processing technology has three main steps: the first step, internal - external grinding processing (Lathe machining ) ; second steps, Sadegh discharge processing; third steps, wire cutting.

6. The Part Euipement: lathe machine, internal - external lapping processing, EDM, WEDM and more.

7. The Part Testing equipment: Projector for digital measuring instrument, Switzerland TRIMOS height gages, Japan Nikon height gages, two dimension, hardness meter and more.

8. The Part Tolerance: +/-0.01mm

• For each piece of injection mold parts, we always do the following;
• Each process must be checked;
• Every maker will check the parts he is machining;
• The final comprehensive inspection.

D. Delivery: Generally speaking, we need 5-15 working days after you place an order , the speed of delivery depends on the quantity and complexity of the parts. or according to client requirement.

E. Dimension: According to the customers' drawings

F. Injection mold parts color: Black, white, any other colors as per Customers’requirement .

G.Injection mold parts surface: Polishing, pvd coating, dlc coating , etc.

H. Mould life:500,000 shots

I. OEM:Welcom

J. Applications: Automobiles, medical, electrical and so on

K. File format used: Solidworks, Pro/ Engineer, Auto CAD, PDF, JPG ect

L. Hardness: Generally speaking,determined to materials

M. Precision:Grinding :0.001 mm; EDM: 0.002 MM;

Packing&Shipping

Packaging Details

• Commercial packaging: PE film+ plastic box +carton
• as the clients' requirements

Shipment: By DHL, TNT, Fedex, EMS and more

Delivery Time

Usually, within 5-15 working days
