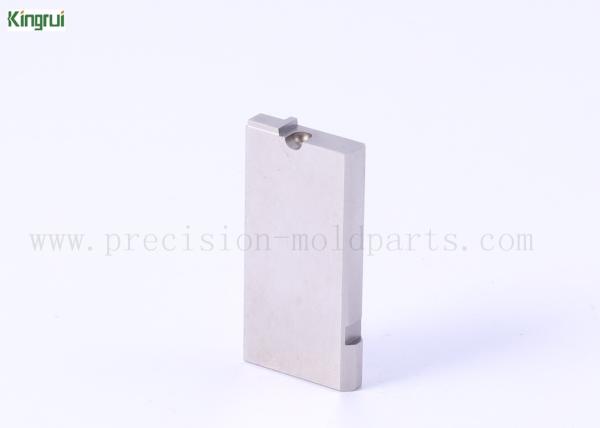

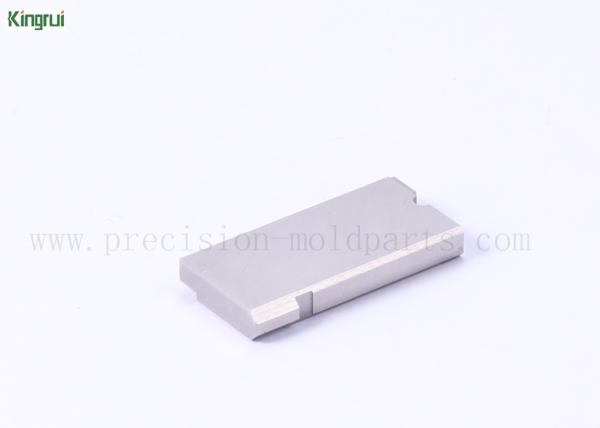

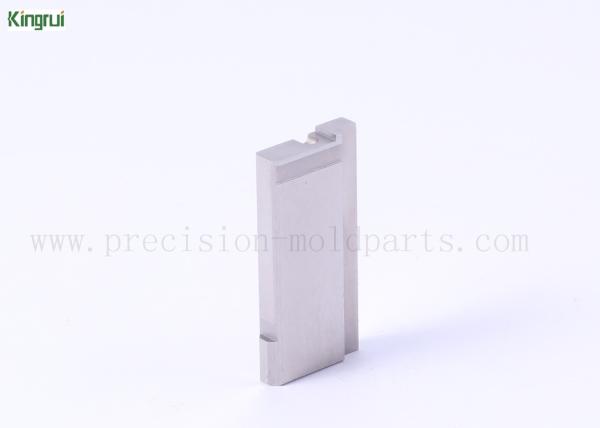

Small Injection Mold Cavity Inserts Finished by Surface Grinding and EDM

Introduction:

A. Product Name: Small Injection Mold Cavity Inserts Finished by Surface Grinding and EDM

B. Material: SUS440C imported from Japan. It has high hardness and better wear resistance and is usually delivered after heat treatment.

C. Machining: precision grinding and EDM processing.

D. Surface: EDM process 0.002.

E. Heat Treatment: Hardness can reach HRC59 ~ 61.

F. Machined Precision: Grinding precision: 0.001 mm; EDM precision: 0.002 mm; other precision or tolerance can be customized according to customers' requirements.

Specification/ Service Details

1. Material Metal available: High- speed steel, Stainless Steel, Brass,Copper, Brozone, Aluminum, Steel, Carbon Steel,Tiatniumetc,etc.

2. Surface Treatment: Based on customer requirements, we can do Zinc plated, Nickel plated, Chrome plated, polishing, knurling, anodizing, Black Oxide, heat treatment, sandblasting, powder coating, brushing,laser logo, silk print logo, cnc logo, etc.

3. QC (inspection verywhere)

- Technicians self-check in production

- Engineer spot check in production.

- QC inspect after products finished

- International sales who were trained the technical know-how spot check before shipping to ensure the quality.

4. Non standard Customized machining according to customer's drawings or samples for OEM Grinder Machining Stainless Steel SUS410 Mold Parts With Quality Certificated

5. Process Equipments: CNC machining center, CNC lathe, grinding machine, EDM machines, milling machine, drilling machine, Punching Machine, CNC Punching Machine, Tapping Machine, CMM Test and so on.

6. Machining Lead time: Within 15 days

7. Tolerance:

• Grinding Precision:0.003mm
• EDM Precision: 0.002 mm

8. Shipment terms:

1) 0-150kg: air freight priority,

2) >150kg: sea freight priority,

3) As per customized specifications.

9. High Quality Rich manufacturing experience,competitive price with good quality for OEM Grinder Machining Stainless Steel SUS410 Mold Parts With Quality Certificated.

10. Parts Series: precision grinding parts, edm spare parts, wire edm parts, cnc machined parts, connector mold parts, industrial cutting knives and more customized parts.

11. Application Industry: Automative , Appliances, Medical Devices, Electronics and so on.

Factory Configured

(1) Processing Machines:

1. Precision Grinder: 12
2. Japan mitsubishi mirror EDM: 3
3. Japan Sodick EDM machine: 3
4. Taiwan qunji EDM:3
5. Milling machine: 2
6. Wire- EDM: 1
7. Hgh- speed CNC engraving and milling machine : 2

(2) Testing Equipments:

• Projector for digital measuring instrument: 4
• Switzerland TRIMOS Height Gages: 1
• Japan Nikon Height Gages: 6
• Two dimension: 2
• Hardness meter: 1
• Micrometer: 10

Payment Terms:

(1). Payment: T/T; 50% deposits; 50% balance before shipping, special demand please consult with us

(2). MOQ: 1pcs
(3). Warranty : will provide you 100% qualified products, once fail please just reject or ask for refunding, it is our principle to do business providing clients qualified products.
