Specifications
Brand Name :
SENLAN
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000pcs/week
Delivery Time :
5-15 working days
Packaging Details :
Coated with anticorrosive oil , packed in carton box
Product name :
Plastic Precision Medical Mould
Cavity :
Multiple Cavity
Color :
Silver
Tolerence :
+/-0.005
Surface treatment :
Polishing
Machining :
CNC Machining, EDM
Hardness :
45HRC
Description

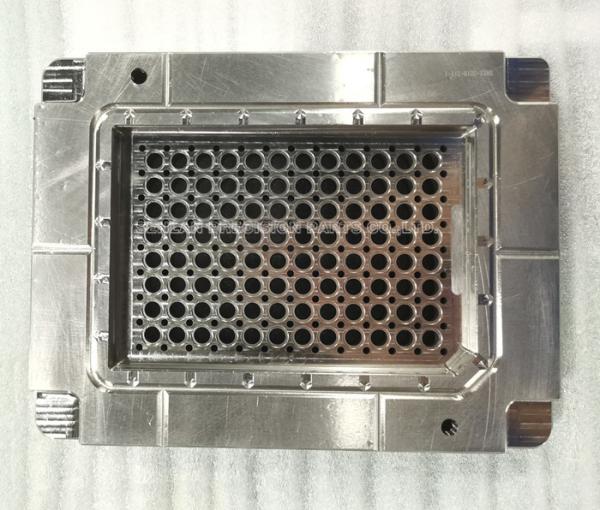

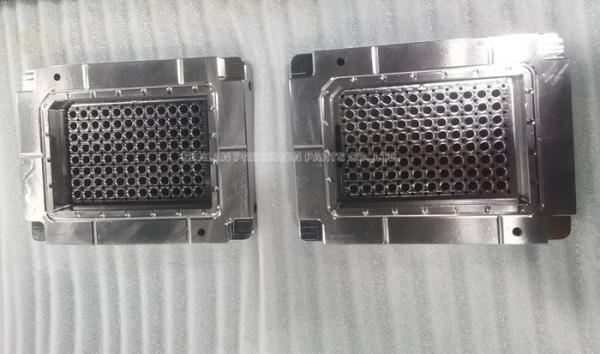

Smoo 1.2344 Material Mold Core Mold For Precision Medical Multi-Cavity Mold

Plastic injection molding is an efficient and cost-effective method of producing medical and pharmaceutical parts to high levels of precision, accuracy, and quality. It is used to create components from medical devices and equipment to laboratory tools and testing instruments.

SENLAN is an industry-leading supplier of medical injection molding mold components, manufacturing medical components and devices using durable, reliable, and FDA-compliant medical-grade plastic materials that are the essence of medical injection molding. The medical plastic injection molding process is cost-effective and ideal for high-volume production runs and applications that require consistency and tight tolerances.

Specification Of Precision Medical Multi-Cavity Mold:

Material SKD11, SKD61, HSS, M2, D2, SUJ2, S45C,1.2344
Standard DIN, MISUMI, EDM, MOELLER, HASCO ect
Size Depend on your drawings or products standard
Place of origin Dongguan, Guangdong, China
Heat Treatment Available
Surface Work TiCN, TiN, Aitain, Ticrn, Nitriding, Black Coating etc available
Tolerance +/- 0.005mm
Polishness Close to Ra0.2
Hardness Depends on material (HRC45~64)
Delivery Time 3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.

Purchase Medical Multi-Cavity Mold Process Chart:

Plastic Mold (Moulds) Components

Production Process

Description
1. 3d Design/Samples For Quotation According to 3D drawing or samples for quotation
2. Negotiations

Including the price of mold components

for cores & cavities, weight of product, payment, lifetime, delivery, etc.

3. Purchasing Order After the customer confirming the mould design and quotation
4. Making mold(moulds) components

Confirm drawing, start to do DFM, mold flows and mold detail agreed

with the customer, start production

5. Production schedule Every week we will feedback to the customer a mold progress (picture)
6. Sample Shoot

We provide the moulds Components test samples for confirmation (about 1-2piece), then,

get your signature sample, mass production

7. Package Cartons box for parts, or as your requiretment
8. Delivery Deliver goods by air or by sea. Express

Manufactuing Medical Multi-Cavity Mold Equipment:

CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
YB-25 0.05mm 2
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3
Centeless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
618 0.001mm 2
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan

FAQ:

Q1: How Long We Will Get The Goods?
A: Generally it is 2-5 days if the goods are in stock. or it is 16-23 days if the goods are not in stock, it is according to quantity and your customization need

Q2: Do You Have Any Office In My Country ?
A: We have no office in other countries now, but with 15 years development, we have been one of the leading manufacturer for plastic mold parts in dongguan city, which has exported the goods to nearly 35 countries, each components was tested through the strict quality control system before delivery, and we never get any complaint from clients yet

Q3: Could You Provide Us Report When We Need?
A: Yes, we can provide material report, dimensional report and heat treatment report, as well as the special report you require from the third party inspection company

Q4: Could You Accept D/A Payment?
A: At the moment, we accept TT, L/C At sight, Paypal
