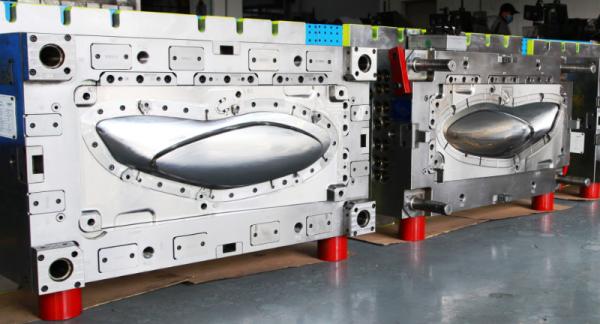

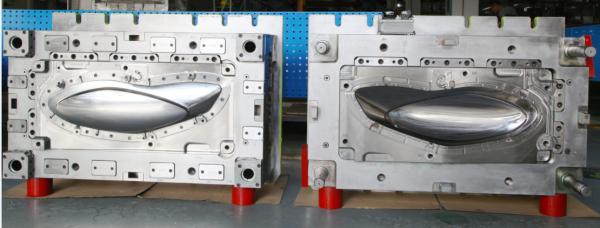

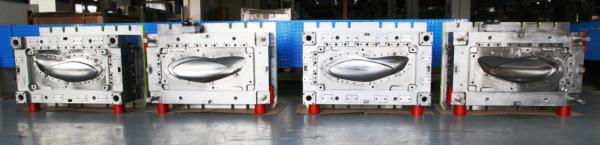

Auto lighting cover Plastic molding tools with material PC for Lamborghini

This part is high performance for the lighting, We use most advanced polishing process and sufficient cooling line to control it.

Product Quick detail:

1. Cavity: RH and LH 1 cavity for each mold

2. Molding Material: clear PC

3. Mold type: serial mold

4. Mold style: precision mold and large mold

5. Mold base standard: HASCO

6. Runner system: hot runner

7. Delivery terms: FOB

8. Mold life: 300K

9. Mold status: Insert mold with hardness steel

10. Cavity steel: 1.2343ESR

11. This part is a visible, mirror surface.

12. There is a critical surface so is unacceptable to make Parting line on visible surface.

13. No ejector pin marks on critical surface.

Product specification:

1. Hot runner brand: HRS
2. Gate style: hot runner with Valve gate turn to side gate
3. Ejection: Strippers
4. Cylinder brand: AHP Merkle
5. Mold unit: Metric tools
6. Surface finish: glossy with mirror
7. Combining Moldflow analysis to optimize design
8. Combining DFM report to optimize design
9. Mold structure is safty and stable
10. Mold have sufficient air venting
11. Mold have sufficient cooling line
12. Mold produce the Part no defective, such like sink mark, bur mark, flow mark, flush etc
13. Scientific trial out to find optimum injection parameter
14. Every procedure follow ISO9001 strictly
15. Before tool shipped out no any sigle open opint

Product advantage:

1. Mold match customer injection machine
2. Mold is desgined follow customer standard
3. Mold is bulit with safest operation when production
4. Mold is in guarantee all over the word
5. 3 Parters in different area can deal it, in Mexico,Czech and Spain can provide after-serivice on the overseas.
6. Tool have been testing and pass the CPK.
7. Tool have been bulit in High Quality and short lead time with best engineering service

Product application:

1. Use for machinery
2. Use for electronic
3. Use for automotive
4. Use for information technology industry
5. Use for Space industry
6. Use for Medical industry
7. Use for Energy industry

FAQ:

1.Why choose GOM?

High Quality and short lead time with best engineering service to bulid long-term business relationship with customer.

2.What GOM service?

-Components manufacturing

-Plastic molds building

-Injection producing

-Painting & Plating

-Assemble

-Engineering support

3.How to control the quality?

Every process finish must make the measurement by CMM and should be passed then can do the next process.

4.How to provide after-serivice on the overseas?

We have 3 Parters in different area can deal it, in Mexico,Czech and Spain.

=======================================================================================

---------------------------------------------------------------------------------------------------------------------------------------------

Issue Solution example

Weld Lines

Description: Weld lines are actually more like a plane than a line that appears in a part where molten plastics meet each other as they flow from two different parts of the mold.

Causes: Weld lines are caused by the inadequate bonding of two or more flow fronts when there is partial solidification of the molten plastic.

Remedies:

1. Raise the temperature of the mold or molten plastic.
2. Increase the injection speed.
3. Adjust the design for the flow pattern to be a single source flow.
4. Switch to a less viscous plastic or one with a lower melting temperature

Short Shot

Description: As the term implies, short shots can be described as a situation where a molding shot falls short. This means that the molten plastic for some reason does not fully occupy the mold cavity or cavities, resulting in a portion where there is no plastic. The finished product becomes deficient because it is incomplete.

Causes: Short shots can be caused by a number of things. Incorrect calibration of the shot or plasticizing capacities can result in the plastic material being inadequate to fill the cavities. If the plastic is too viscous, it may solidify before fully occupying all the cavities and result in a short shot. Inadequate degassing or gas venting techniques can also result in short shots because air is trapped and has no way to escape; plastic material cannot occupy the space that air or gas is already occupying.

Remedies:

1. Select a less viscous plastic with higher flowability. This plastic will fill the hardest-to-reach cavities.
2. Increase mold or melt temperature so as to increase flowability.
3. Account for gas generation by designing the mold so that gas is not trapped within the mold and is properly vented.
4. Increase the material feed in the molding machine or switch to a machine that has a higher material feed in the event that the maximum material feed has been reached.
