injection molding tool for famous Auto parts with ABS plastic molding

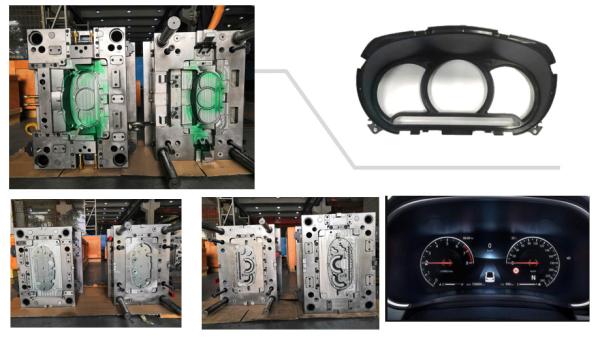

Tool for auto instrument panel injection molding.

Product Quick detail:

1. Cavity: 1 cavity mold

2. Molding Material: ABS

3. Mold type: serial mold

4. Mold style: middle size mold

5. Mold base standard: Hasco

6. Runner system: hot runner

7. Delivery terms: EXW

8. Mold life: 100 Million

9. Mold status: Insert mold with hardness steel

10. Cavity steel: NAK80

Product specification:

1. Hot runner brand: YUDO
2. Gate style: hot runner with Valve gate turn to side gate
3. Ejection: ejector pins and sleeve
4. Mold unit: Metric tools
5. Surface finish: normal polishing
6. Combining Moldflow analysis to optimize design
7. Combining DFM report to optimize design
8. Mold structure is safty and stable
9. Mold have sufficient air venting
10. Mold have sufficient cooling line
11. Mold produce the Part no defective, such like sink mark, bur mark, flow mark, flush etc
12. Scientific trial out to find optimum injection parameter
13. Every procedure follow ISO9001 strictly
14. Before tool shipped out no any sigle open opint
15. We will make the lifter and (inner) slider in these undercut position.

Product advantage:

1. Mold match customer injection machine
2. Mold is desgined follow customer standard
3. Mold is bulit with safest operation when production
4. Mold is in guarantee all over the word
5. 3 Parters in different area can deal it, in Mexico,Czech and Spain can provide after-serivice on the overseas.
6. Tool have been testing and pass the CPK.
7. Tool have been bulit in High Quality and short lead time with best engineering service

Product application:

1. Use for machinery
2. Use for electronic
3. Use for automotive
4. Use for information technology industry
5. Use for Space industry
6. Use for Medical industry
7. Use for Energy industry

FAQ:

1.Why choose GOM?

High Quality and short lead time with best engineering service to bulid long-term business relationship with customer.

2.What GOM service?

-Components manufacturing

-Plastic molds building

-Injection producing

-Painting & Plating

-Assemble

-Engineering support

3.How to control the quality?

Every process finish must make the measurement by CMM and should be passed then can do the next process.

4.How to provide after-serivice on the overseas?

We have 3 Parters in different area can deal it, in Mexico,Czech and Spain.

=======================================================================================

Our Main Services:

1. Plastic molds:

Hot runner mold, precision mold, over mold, two-shot mold, unscrewing mold, multi-cavity mold, IML/IMI mold, Stack mold, Die-casting mold, etc.

90% molds exported to North America, South American, Europe and Australia.

2. Injection Molding:

We have rich experience in molding various engineering grade resins:

ABS, PC, PC+GF, PC/ABS, PBT, PA6+GF, PA66+GF, PPS, PU, PP, PE, TPE, TPU, LCP, Ultem, etc.

3. One Stop Services

Based on our strong engineering capability,GOM provide a full turnkey solution for customers bespoke plastic

injection moulding needs inclusive of design, development, mould tooling, production and post moulding support.

• 3D Scanning

• Prototype

• Painting

• Pad-printing

• Silk-Screen Printing

• Hot Stamping

• Plating

• Color Match

• Ultrasonic Welding

• Automation

• Production Line Assembly

• Precision Metal Parts

• Die casting Parts
