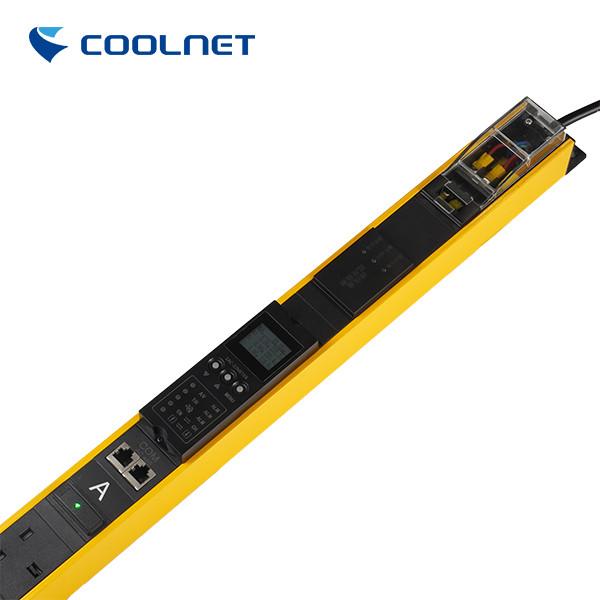

COOLNET Hot Swappable Modules Power Distribution Unit For Data Center
COOLNET Hot Swappable Modules Power Distribution Unit For Data Center
COOLNET Hot Swappable Modules Power Distribution Unit For Data Center
COOLNET Hot Swappable Modules Power Distribution Unit For Data Center
Specifications
Brand Name :
COOLNET
Model Number :
PDU
Certification :
CE& ROHS
Place of Origin :
CHINA
MOQ :
1 unit
Price :
50-500 USD per unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 unit per month
Delivery Time :
20days
Packaging Details :
CTN
Color :
Black/WHITE
Rated Power :
250V 440V
Operating temperature :
-10℃+75℃
Storage temperature :
-40℃+80℃
Type of plug :
Euro plug Customizable length
Switch Type :
Built-in switch smart pdu
Relative humidity :
5~90%（no condensation）
Output digits :
Maximum 48-bit output
Description

COOLNET Hot-swappable Modules Power Distribution Unit for Data Center

Production

Coolnet intelligent PDU has a unique auxiliary energy-saving and consumption-reducing function. Intelligent power supply unit can provide comprehensive and accurate power measurement, energy consumption and environmental data can not only be used as effective control of source distribution, but also means to maximize the power efficiency of data centers can also help to evaluate and improve the work efficiency of data centers, provide necessary information for capacity planning, increase uptime, effectively reduce PUE, and effectively promote low-cost, green and low-energy operation of data centers.

 COOLNET Hot Swappable Modules Power Distribution Unit For Data Center

Product Features

COOLNET Hot Swappable Modules Power Distribution Unit For Data Center
  • Built-in web server; through a web browser, the real-time power consumption of the distributor can be directly detected
  • When a power event occurs, the system administrator can be notified through Email Traps for processing
  • Provide central control software, user-friendly operation interface, easy monitoring
  • Can manage the power usage of a large number of distributors at the same time
  • Provide SNMP MIB, the network management system can directly integrate and monitor

Software Function

  • Simultaneously detect the power consumption of multiple intelligent power distributors
  • Group function, administrators can define and classify by themselves, which is convenient for management
  • Provide power consumption icon, which can be viewed by day, month, or self-defined way
  • When a power accident occurs, emails can be sent to the account designated by Trap
 COOLNET Hot Swappable Modules Power Distribution Unit For Data Center

COOLNET Hot Swappable Modules Power Distribution Unit For Data Center
Parameter

PDU

Parameters

input

 Input type AC single phase, AC three phase,-48VDC,240VDC,336VDC
Input mode

Transparent open type junction box,power cord, cable,

industrial connector, socket etc.
Input voltage range 100-277VAC/312VAC-418VAC/11VDC-240VDC/-43VDC- -56VDC
AC input frequency 50/60Hz
total load current MAX 63A

Output

 Storage temperature -40 - +70
Relative humidity 5-95% (No condensation)
Atmospheric pressure 70kPa - 106kPa
Working altitude No more than 4000M

Environmental

 Working temperature -10 - +75
Storage temperature -40 - +80
Relative humidity 5-95% (No condensation)
Working altitude No more than 4000M
IP rating IP20
Protection input protection module Circuit breaker, lightning protection, leakage protector, temperature insepction module (optional)
Output protection module Circuit breaker, fuse box, fuse(optional)

Certifications
COOLNET Hot Swappable Modules Power Distribution Unit For Data Center
Case
COOLNET Hot Swappable Modules Power Distribution Unit For Data Center

Factory
COOLNET Hot Swappable Modules Power Distribution Unit For Data Center
