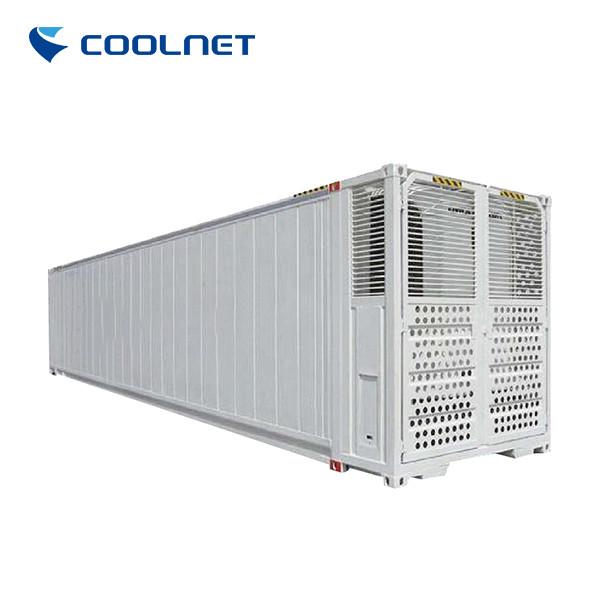

Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install
Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install
Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install
Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install
Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install
Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install
Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install
Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install
Specifications
Brand Name :
COOLNET
Model Number :
HCDC
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1set
Price :
USD8000-30000/set
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per month
Delivery Time :
20-40 days
Packaging Details :
Packed in plywooden case and CTN
Name :
Container Data Center
Material :
2.0mm Cold rolled steel
Two ends doors: :
Sliding /manual doors optional
Hot air containment :
Included
Static Payload :
1100kg
Cabinet Standard: :
ANS/EIA RS-310-D
Description

Containerized Data Center With Agile Response Easy To Install

Product Introduction

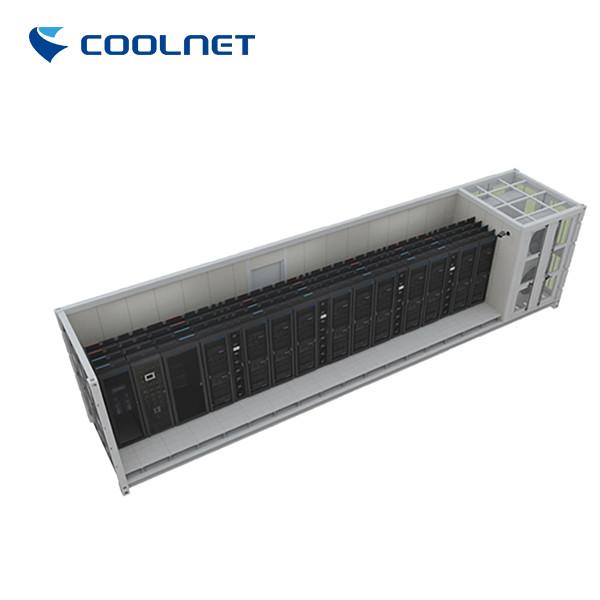

The container data center shifts the design and most of the construction of the data center to the factory for pre-customization and builds it on site in the way of building blocks, thus achieving rapid deployment and significantly improving the efficiency of the data center. It will be servers, storage, network equipment, etc. a brain into the container, which is the container data center.

Coolnet container data center integrates AC/DC power supply, HVAC, closed cold/hot aisle, modular structure, fire fighting and intelligent monitoring. The single-container solution or multi-container solution can be used according to actual needs.The container data center solution is widely used in Internet, telecom, government, finance and other fields.

Benefits

Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install

 Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install

Advantages

Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install

  • Fast deployment. Pay as you go.

    A traditional datacentre takes 18 to 24 months to build. With the fully modularized design concept, Delta’s containerized datacenter is flexible and scalable with only a few weeks or months for deployment to meet the rapidly growing IT needs.

  • Highly integrated. Highly reliable.

  • Prefabricated, pretested, and fully configured architecture with high portability for edge computing application.
  • All subsystems, such as UPS, power distribution, battery, cooling, racks and more, are well integrated.

  • Energy efficient. Low PUE.

  • RowCool’s continuously variable fan speed control enables high energy savings.
  • Hot aisle containment further improves cooling efficiency.
  • UPS can generate high AC-AC efficiency 95% even at 30% light load.

  • Comprehensive manageability

    Delta’s DCIM provides a sophisticated management and monitoring solution including power, energy, assets, work orders, security, capacity management, and more.
Applications

  • Cloud
  • Telecom
  • Edge computing
  • Content delivery network
 Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install

Technical Parameter

PRODUCT PARAMETERS ICDC20 ICDC40
Container Size 20'HQ 40'HQ
Rack Specification 600*1000*2000 600*1000*2000
Single Rack Capacity 42U 42U
Rack Quantity 4pcs 4pcs
Single Rack Max. Capacity 6KW 6KW
IT Equipment Total Capacity 24KW 48KW
UPS 25KVA*2
N+1 Modular UPS		 25KVA*3
N+1 Modular UPS
Battery Back-up Time 10Minutes 10Minutes
Cooling Pattern Inrow Air Condition Inrow Air Condition
Monitoring system YES YES
Door Security System YES YES
Fire alarm and gas fire extinguishing system YES YES
Video Monitoring System YES YES
EPO YES YES
Transportability Support Support
Stackable Support Support
Application Outdoor Type Outdoor Type
Diesel Generator Module Extra position Extra position

Certification

Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install

Case

Cold Rolled Steel Containerized Data Center With Agile Response Easy To Install
