Product Introduction

Modular Data Center Description With the rapid development of cloud computing and mobile Internet, traditional data centers face many challenges such as long construction period, high initial investment, low efficiency under low load, difficult expansion under high load, poor management efficiency, etc., and it is difficult to meet the rapid growth of business needs. Coolnet ’s micro-modular data center solution adopts a modular design and integrates data center infrastructure subsystems such as cabinet systems, channel systems, power supply and distribution systems, air conditioning systems, and monitoring systems to provide customers with rapid deployment, high efficiency, energy saving, A new type of data center with compact space and flexible expansion can effectively meet customers' requirements for efficient, reliable, fast, flexible, and intelligent management of data centers in the cloud era.

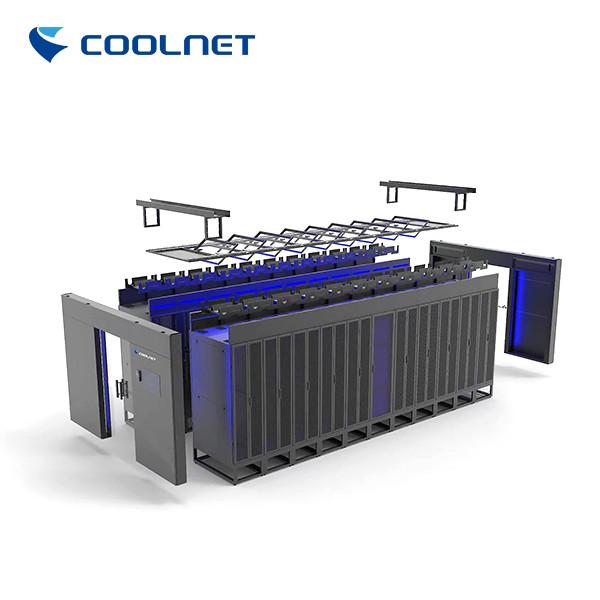

Coolnet mini-modular data center can flexibly adopt the layout of double-row cabinets + cold/hot aisle or single-row cabinets + cold/hot aisle according to user site conditions. Under the two structural layouts, all subsystems such as cabinets, channels, power supply and distribution, refrigeration, security, environmental monitoring and management, and wiring can be integrated according to user needs, providing customers with new data of rapid deployment, high efficiency and energy saving, compact space, and flexible expansion Central solution.

Feature & Benefits

Single module Solution : It is suitable for small and medium data centers with power consumption less than 180KW and an area of less than 100 square meters. For data center needs of small and medium enterprises and branch offices of large enterprises.

Multi-module solution: Through the flexible arrangement of multiple modules, a large-scale data center can be constructed. For the needs of large-scale data centers in IDC, large enterprises, financial centers, governments, military, supercomputer centers, education, medical and other industries

Rack

Multi-functional cabinet developed for large, medium and small data centers. It has the advantages of sturdy structure, strong load-bearing capacity, noble and elegant and assembling structure design. Cabinet integrated three major solutions (power management solution, cable management solution, heat dissipation management solution), It can be used as a modular equipment installation infrastructure, cabinet-type power distribution cabinet, rackmounted battery box, Cabinet integrated user equipment, power distribution, UPS, battery box, and monitoring system, greatly save the equipment area in the computer room.

Aisle Containment -Modular design
Adopting modular unit design concept, each unit can be installed and disassembled independently, and can be closely connected with adjacent units, which is convenient for disassembly and assembly; at the same time, it is also suitable for maintenance and management of other equipment on the channel.
Good sealing
All unit modules in the hot and cold aisle system are connected precisely, and the parts are sealed with good sealing tops or sponge strips, which not only maintains the aesthetics, but also prevents the leakage of cold air in the cold aisle.
Good light transmission
The system is composed of toughened glass with strong light transmittance

Power Supply- Modular UPS

According to the power supply requirements of large and medium-sized data centers, a modular UPS solution has been introduced, which can be flexibly configured with 80-300kVA modular UPS according to the customer's system power supply requirements. The module adopts advanced high-frequency switching technology, fully digital DSP control technology and the world’s leading active PFC and LLC topologies to achieve high input power factor, accurate output current sharing performance, and reliable monitoring and management system. The equipment provides safe, reliable and pure AC power.

Cooling System - In Row Air Conditioning Unit

Inverter In Row air conditioners are tailor-made high-density cabinets, adopts advanced frequency conversion technology and uses the environmentally friendly refrigerant R410A. The output cooling capacity is adjusted in real time according to the change of the detected load, to avoid frequent start and stop, and to ensure the temperature of the computer room environment.
Compared with fixed frequency air conditioners, the annual energy saving rate of variable frequency inter-train air conditioners can reach 29%.

Monitoring System

The monitoring system system has the characteristics of simple configuration, strong access, and high reliability. It can manage all power, environment, and cooling in data center, integrate mainstream brand access control, video and other security systems, through distributed collection, high concurrent processing capabilities Meet the needs of networked monitoring and management of multiple computer rooms, allowing data center operation and maintenance personnel to control the operation safety of the computer room in real time.
