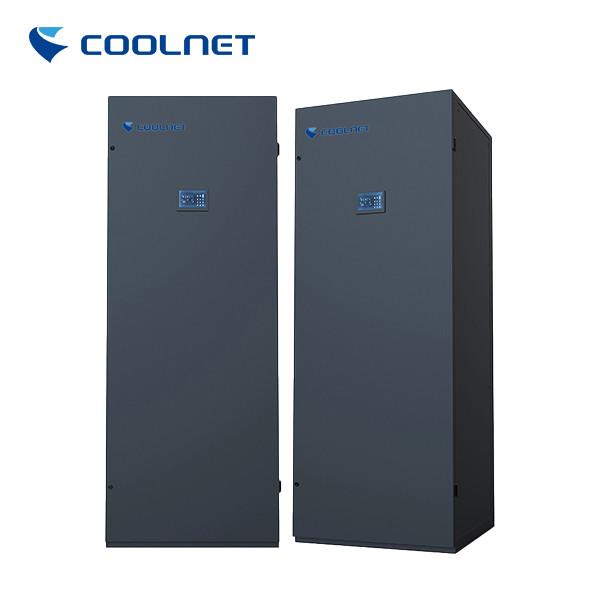

Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
Specifications
Brand Name :
Coolent
Model Number :
CYAT20D/U
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1
Price :
to be Negotiated
Payment Terms :
T/T
Supply Ability :
1000/Month
Delivery Time :
4W
Packaging Details :
WOODEN
cooling capacity :
15kw
Mounting :
Floor Standing
Type :
precision air conditioning unit( air cooled )
Operating voltage :
380/400 VAC,230 VAC,220V
Warranty :
1 Year
Product name :
Computer room air conditioning
Refrigerant :
R22(R407C/R410A)
Application :
Computer Room,Printing factory/cinema/supper marekt/restaurant/Offfice/Kindergarten,Industrial,Heat recovery,adjust cold/heat/humidity
Color :
Black/Grey white/other custom colors
Power :
3N-380V-50Hz,220v/50hz/60hz
Airflow :
2000~50000 m3/h
Voltage :
380v/220v,220V/380V,380V/415V
Description

Computer Room Air Conditioning Floor Standing Type To Save Space 15KW

Product Introduction

Coolnet precise air conditioning is dedicated to the equipment room and machinery room that place communication apparatus, computers, precise instruments, etc. Coolnet precise air conditioning can achieve efficiency controlling of the ambient temperature and humidity with more precision than normal type of air ocnidtioners, in this way, the long-term stable and continuously run of the unit can be guaranteed.

Features & Benefits

Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type

 Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type



Scope Of Applications

IDC, Computer room Network equipment room, Server room, communication equipment room Monitoring room, Power distribution room and battery room High precision lab, Test room, Inspection room, Measuring room Industrial control room, High precision workshop Archive, Storage room, Museum, Wine cellar​

 Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type

Structure & Components

Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type

Fan
A blow fan adopts direct drive centrifugal fan with backward curved blades, the range of static pressure can be adjusted from 0 to 400pa, realizing the continuous operation of 365 days* 24 hours, 10 years’ average life.





Compressor
The core power of the unit is from Copeland hermetic scroll compressor that guarantees the high efficiency ,low noise and the long life of the unit.

Air Supply Method

Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type

Model M04 M06 M08 M13 M16 M20
Power Supply 220V1Ph-50Hz 380V3Ph-50Hz
Air discharge Up Front/Down
Technical Data Sheet
AC Fan Total cooling capacity-KW 4.2 6.4 7.5 12.5 16.8 20.2
Sensible cooling capacity-KW 3.9 5.8 6.9 11.3 15.3 18.3
Unit FLA-A(heating, humidifying type) 20.0 25.0 16.8 22.0 23.5 28.6
Compressor Quantity 1
Fan Quantity 1
Air Volume-m3/h 1600 1900 2300 3600 5100 6500
Heater Capacity-KW 3.0 3.0 6.0 6.0 6.0 6.0
Humidification-kg/h 3 3 3 3 6 6
Power of humidifier-KW 2.3 2.3 2.3 2.3 4.5 4.5
Outdoor Condenser
Model SCA020 SCA020 SCA030 SCA030 SCA050 SCA050
Standard unit operating temperature range-℃ -15-45℃
Low Temperature Components Operating Temperature Range-℃ -40-45℃

Certificates

Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type

Factory Details

Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type

Packing & Delivery

Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type

Cases

Space Saving Computer Room Air Conditioning Unit 15KW Floor Standing Type
