Specifications
Supply Ability :
1000000pcs per month
Delivery Time :
30 days
Part Number :
6202 2RZ C0 Deep Groove Ball Bearings
Type :
Ball Bearing
Structure :
Deep Groove
Number of Row :
Single Row
Vibration :
Z3, Z4
Noise :
V3, V4
Precision :
P6, P5
Clearance :
C0,C2,C3,C4,EM
Description

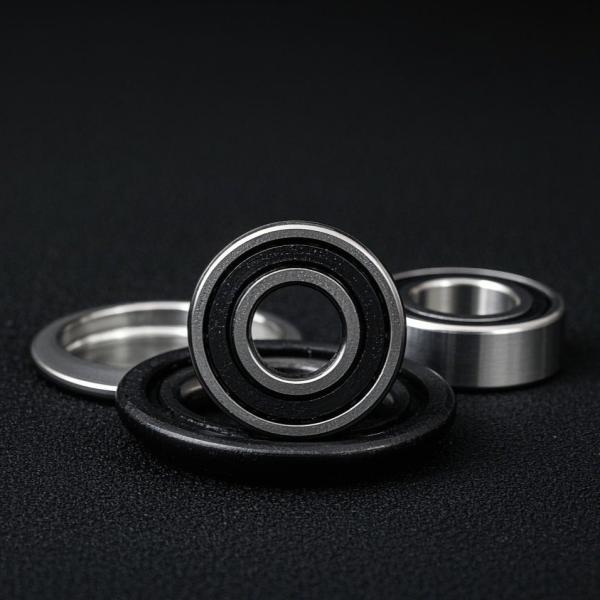

6202 2RZ Deep Groove Ball Bearing Single Row Radial 15*35*11mm For Bathtub Pumps

The 6202 2RZ bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:

Bearing Number Dimensions(mm) Basic Load Rating(N) Limiting Speed(rpm) Weight(Kg)
Inner Diameter Outer Diameter Width Chamfer Dynamic Static Grease Oil
d D B r(min) Cr Cor Non-contact Non-contact Reference
6202 2RZ 15 35 11 0.6 7600 3750 14000 / 0.045

Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Steel
Lubrication Grease
Measurement Unit Metric
Seal Type ZZ(2RS,2RZ, open types are available)
Temperature Range -30°C ~ +150°C
CERTIFICATE RoHS, IATF16949:2016
Feature Long Life,Low Noise,High Speed
Service OEM&ODM Customized Services
Samples Please Contact Us
Service Online Support,Professional Service
Size Standard,For custom sizes ,please contact us
Factory Manufacturer Yes
Size Standard,For custom sizes ,please contact us
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Tolerance Class P6,P0
Radial Clearance C0

Requirements for Bearings in Bathtub Pumps.

Bathtub pumps typically require bearings that meet the following specifications:

  • Low Noise: Ensure quiet operation to maintain a relaxing environment.
  • High-Speed Capability: Operate at speeds up to 3000 RPM or higher, depending on the pump design.
  • Temperature Range: Function reliably within an operating temperature range of -20°C to 120°C.

High Speed Deep Groove Ball Bearing Radial 15*35*11mm 6202 2RZ C0  For Bathtub Pumps

High Speed Deep Groove Ball Bearing Radial 15*35*11mm 6202 2RZ C0  For Bathtub Pumps

High Speed Deep Groove Ball Bearing Radial 15*35*11mm 6202 2RZ C0  For Bathtub PumpsHigh Speed Deep Groove Ball Bearing Radial 15*35*11mm 6202 2RZ C0  For Bathtub Pumps

What's the Performance Features of 6202 2RZ Bearings in Bathtub Pumps?

The 6202 2RZ bearing offers reliable performance in bathtub pumps, ensuring quiet operation to maintain a relaxing environment. It supports high-speed capability, operating efficiently at speeds up to 3000 RPM or higher as required by the pump design. The bearing functions reliably within an extensive temperature range of -20°C to +120°C, adapting well to varying thermal conditions. Its double rubber seals provide effective protection against water ingress and ensure lubricant retention, enhancing durability and reducing maintenance needs. This combination of features makes the 6202 2RZ bearing well-suited for the specific requirements of bathtub pumps.

What's the Applications of the 6202 2RZ Bearing?

The 6202 2RZ bearing,widely applied in the automotive industry for components like rear wheels and transmissions, it also supports general-purpose motors and home appliances in the electrical sector. Its precision and reliability make it ideal for instruments and meters, while its durability and load-carrying capacity are crucial in internal combustion engines. Found in construction machinery, railway vehicles, material handling equipment, agricultural machinery, and various industrial machines, this bearing ensures stable performance under heavy loads and harsh conditions, extending service life and maintaining efficiency across multiple sectors.

If you need more specific information or have further questions about the 6202 2RZ bearing, feel free to ask!
