Deep Groove Ball Bearings , ID 45MM / OD 100mm Shield Bearing 6309ZZC3

Quick Detail:

1. Structure: Deep groove

2. Type: Ball

3. Bore Size: 10 - 120 mm

4. Material: GCr15

5. ID:45mm

6. OD:100mm

7. Width: 25mm

8. Weight: 0.83 kg

9. Precision Rating: P0, P4, P5, P6

10. Seals Type: ZZ, RZ, 2RZ

11. Number of Row: singel

12. Vibration Level: V1, V2, V3

13. Radial Clearance: C0, C3, C4

14. Noisy level: Z1, Z2

15. Model Number: 6000 series, 6200 series, 6300 series

16. Cage Material: Brass, Steel, Nylon

17. Tolerence Level: ABEC-1, 3, 5, 7

18. Basic dynamic load rating: 55.3KN

19. Basic static load rating:31.5KN

20. Certification: ISO 9000

Description:

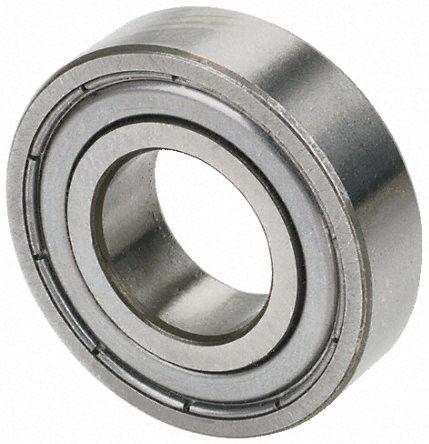

Shield bearing 6309ZZC3 is a very practical type of NSK deep groove ball bearings, single row, shield on both sides, which features low torque applications where high speeds and low power loss. And the bearing can interchange other types bearing, for open design is 6309, for non-contact seal is 6309VV, light-contact seal is 6309-DDW, and contact seal is 63093-DDU.

In there, NSK bearings 6309ZZC3 technical data are described as follows,

Application

To sum up, VV, and DDU design and open design deep groove ball bearings are also play an important role in automobile, machine tools motors, agricultural machinery, textile machinery industry, etc. Warmly welcome to send us for free quote and inventory availability. Origin NSK bearings quality assured.

Competitive Advantage

1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction4. High limiting speed5. Large size range 6. variations of structure

Tag

NSK deep groove ball bearings, we can also supply fag, ntn, nsk ,koyo ect brand quality beairngs in zz, open, 2RS, precision of p6,p4
