C3 clearance Deep Groove Ball Bearings wardrobe sliding door wheels 6001 2Z bearing
C3 clearance Deep Groove Ball Bearings wardrobe sliding door wheels 6001 2Z bearing
C3 clearance Deep Groove Ball Bearings wardrobe sliding door wheels 6001 2Z bearing
C3 clearance Deep Groove Ball Bearings wardrobe sliding door wheels 6001 2Z bearing
Specifications
Brand Name :
KOYO, NSK, THK, Trieternal or OEM
Model Number :
6001 Z ZZ RS 2RS
Place of Origin :
CHINA
MOQ :
4 pcs
Price :
0.1-10 usd /pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000pcs/month
Delivery Time :
2-6 days after receiving the deposit
Packaging Details :
Original package, single package, Wooden package+pallet, Carton package+pallet, or as customerized.
Material :
chrome steel , GR15 , stanless
Structure :
Deep Groove
Number of Row :
Single Row
Seals Type :
Z ZZ RS 2RS OPEN
Precision Rating :
P0,P5,P6
Use the feature :
High speed , high precision , loss noisy
Certification :
ISO
Sample :
Available
bearing model :
6001 Z ZZ RS 2RS OPEN
Description

C3 clearance Deep Groove Ball Bearings wardrobe sliding door wheels 6001 2Z bearing

Basic Bearing No. Bore
d
mm		 Outer Diameter
D
mm		 Width
W
mm		 Radius
r
min
mm		 Basic Load Rating N Ball Complement Max Runout Speed Weight kg
Dynamic C Static C0 No. Size mm Grease r/min Oil r/min
6001 12 28 8 0.4 2651 2306 10000 12000 0.025

What is the Features of the miniature bearing 6001?

1) Deep groove ball bearings mainly take radial load as well as take moderate axial load

2) With less coefficient of friction, high limiting speed, large size range and various structure

3) They are suitable of precision instruments, low noise motors, automobiles, motorcycles, and other common machinery

4) A widely used type of bearings in machinery industry

What is the Applications of miniature ball bearing 6001?

Deep groove ball bearings can be used in transmission, instrumentation, electrical, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate style, yo-yo, etc.

What is your Product range?

Deep groove ball bearings: 6000 series, 6200 series, 6300 series, 6400 series, 6800 series, 6900 series, 16000

Taper roller bearings: 30200, 30300, 31300, 32000, 32200, 32300, 32900, 33000, 33100, 33200

Thrust ball bearings: 51100, 51200, 51300, 51400 Ca

Features and Advantage

1. Production by fully automatic machine.

2. Durability with long life.

3. Smooth, silent and low vibration.

4. OEM/ODM is available.

5. trial and small orders are acceptable.

6. Extensive range of bearing types, price, quality.

7. Strict Quality Control system.

8. Experienced sales and engineers.

9. Competitive Prices 100%test before selling.

10. Provide both high-running accuracy & high-speed operation.

6000 Series

N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

 Kg/pcs
604 4 12 4 0.2 0.97 0.36 36000 44000 0.0021
605 5 14 5 0.2 1.33 0.505 32000 40000 0.0035
606 6 17 6 0.3 2.19 0.865 30000 38000 0.0057
607 7 19 6 0.3 2.24 0.91 28000 36000 0.008
608 8 22 7 0.3 3.35 1.4 26000 34000 0.012
609 9 24 7 0.3 3.4 1.45 24000 32000 0.014
6000 10 26 8 0.3 4.55 1.96 22000 30000 0.019
6001 12 28 8 0.3 5.1 2.39 19000 26000 0.021
6002 15 32 9 0.3 5.6 2.83 18000 24000 0.03
6003 17 35 10 0.3 6.8 3.35 17000 22000 0.039
6004 20 42 12 0.6 9.4 5.05 15000 19000 0.069
6005 25 47 12 0.6 10.1 5.85 14000 18000 0.08
6006 30 55 13 0.6 13.2 8.3 12000 15000 0.116
6007 35 62 14 1.0 16 10.3 10000 14000 0.115
6008 40 68 15 1.0 16.8 11.5 8000 11000 0.19

6200 Series

N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

 Kg/pcs
624 4 13 5 0.2 1.15 0.4 36000 45000 0.0032
625 5 16 5 0.3 1.76 0.680 32000 40000 0.0050
626 6 19 6 0.3 2.34 0.885 28000 36000 0.0080
627 7 22 7 0.3 3.35 1.400 26000 34000 0.0130
628 8 24 8 0.3 4.00 1.590 24000 32000 0.0170
629 9 26 8 0.3 4.55 1.960 22000 30000 0.0190
6200 10 30 9 0.6 5.10 2.390 19000 26000 0.0300
6201 12 32 10 0.6 6.10 2.750 18000 24000 0.0360
6202 15 35 11 0.6 7.75 3.600 17000 22000 0.0460
6203 17 40 12 0.6 9.60 4.600 16000 20000 0.0650
6204 20 47 14 1.0 12.80 6.650 14000 18000 0.1070
6205 25 52 15 1.0 14.00 7.850 12000 16000 0.1250
6206 30 62 16 1.0 19.50 11.300 10000 13000 0.2010

6300 Series

Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

 Kg/pcs
6300 10 35 11 0.6 8.2 3.5 18000 24000 0.053
6301 12 37 12 1.0 9.7 4.2 17000 22000 0.06
6302 15 42 13 1.0 11.4 5.45 16000 20000 0.082
6303 17 47 14 1.0 13.5 6.55 15000 19000 0.115
6304 20 52 15 1.1 15.9 7.9 14000 17000 0.144

6800 Series

N0.

Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

 Kg/pcs
685 5 11 3 0.15 0.715 0.282 35000 45000 0.0011
686 6 13 3.5 0.15 1.08 0.44 33000 42000 0.0019
687 7 14 3.5 0.15 1.17 0.505 31000 40000 0.0021
688 8 16 4 0.2 1.61 0.715 29000 38000 0.0031
689 9 17 4 0.2 1.72 0.82 28000 36000 0.0032
6800 10 19 5 0.3 1.83 0.925 26000 34000 0.005
6801 12 21 5 0.3 1.92 1.04 22000 30000 0.006
6802 15 24 5 0.3 2.08 1.26 20000 28000 0.007
6803 17 26 5 0.3 2.23 1.46 19000 26000 0.008
6804 20 32 7 0.3 4 2.47 17000 22000 0.019
6805 25 37 7 0.3 4.3 2.95 15000 19000 0.022
6806 30 42 7 0.3 4.7 3.65 13000 17000 0.026
6807 35 47 7 0.3 4.9 4.05 11000 15000 0.029

Shipping

1.We ship to your designated address, please make sure your address is correct before you pay.
2.Items will be shipped within 1-3 business day when we received payment.

3.Shipment normally takes 5-10 Working days by Express, 7-15 working days by E parcel and 15-25 working days by sea to

most US / AU / EU destinations. Exact delivery days varies by different countries. You may contact us for detailed information.

Note:

1.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are buyer’s

responsibility. We will try our best to reduce the risk of the custom duties.

2.Please check with your country's customs office to determine what these additional costs will be prior to buying.

FAQ

1 Q: What's the MOQ of your company?

A: MOQ is 1pcs.

2 Q: Could you accept OEM and customize?

A: YES, we can customize for you according to sample or drawing.

3 Q: Could you supply sample for free?

A: Yes, we can supply certain quantity sample for free, but please buy her a ticket.

4 Q: Is it your company is factory or Trade Company?

A: We have our own factory; our type is factory + trade.

5 Q: What is your production capacity for a month?

A: Our monthly production capacity will be 1000000sets of bearings.

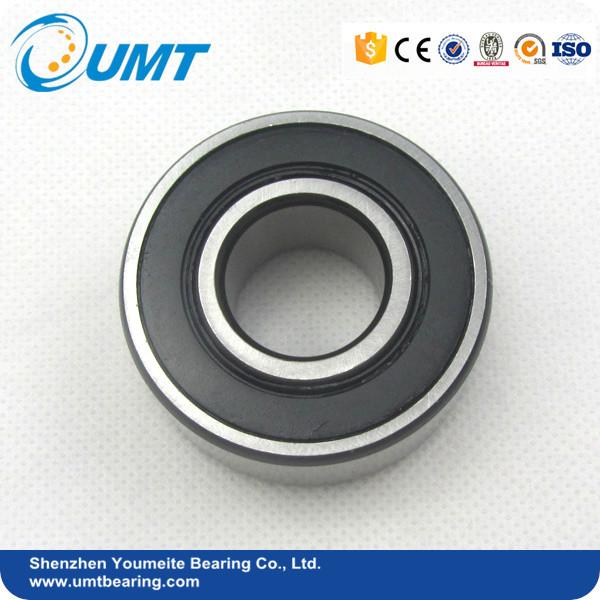

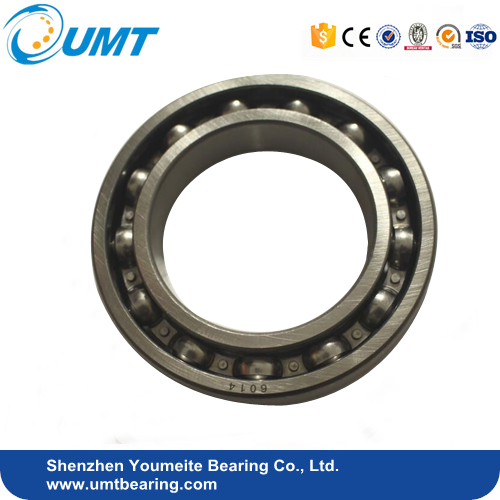

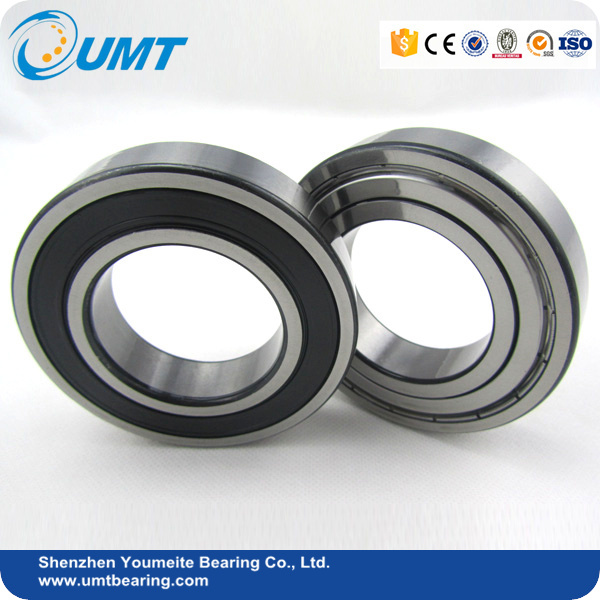

Photos of 6001
C3 clearance Deep Groove Ball Bearings wardrobe sliding door wheels 6001 2Z bearingC3 clearance Deep Groove Ball Bearings wardrobe sliding door wheels 6001 2Z bearing
