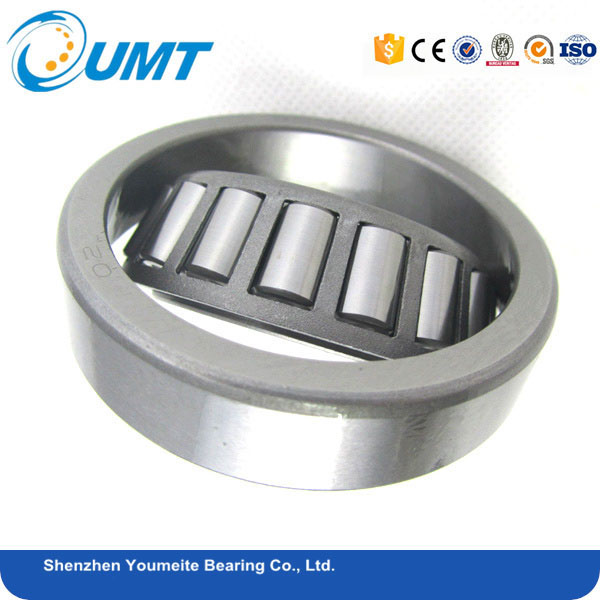

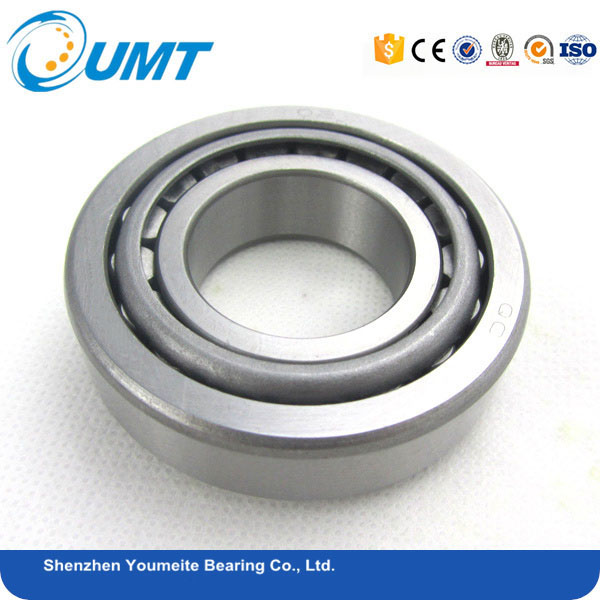

High Precision Stainless Steel Taper Roller Bearing Mechanical engineering vehicle bearing 30204
High Precision Stainless Steel Taper Roller Bearing Mechanical engineering vehicle bearing 30204
High Precision Stainless Steel Taper Roller Bearing Mechanical engineering vehicle bearing 30204
High Precision Stainless Steel Taper Roller Bearing Mechanical engineering vehicle bearing 30204
Specifications
Brand Name :
UMT, FAG,SKF.TIMKEN,NTN ,KG
Model Number :
30204
Place of Origin :
CHINA
MOQ :
4 pcs
Price :
0.1-10 usd /pc
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000000pcs/month
Delivery Time :
2-6 days after receiving the deposit
Packaging Details :
Original package, single package, Wooden package+pallet, Carton package+pallet, or as customerized.
Material: :
carbon steel ,stainless steel ,Chrome S
Cage Materia :
Steel, brass
Tolerance grade :
ABEC1,ABEC3,ABEC5
Precision Rating :
P0,P5,P6,P6x,P4,P2
Service :
OEM Free sample
Hardnes :
58-62HRC
Number of Row :
Single Row
Model Number: :
30204
size :
20 x 47 x 14 mm
Description

High quality bearings inch taper roller bearing 30204

1.product name Tapered roller bearing 32024
2.Size 120x180x36mm
3.Unit weight 3.1 kg
4.brand name LBR
5.material quality Gcr15 chrome steel
6.Contact Ms rocky fang(Skype:jinanyuelong)
7.certification ISO9001:2000
8.port Guangzhou port,Shanghai port
9.MOQ 5 set
10.payment terms T/T L/C Paypal,Western union.
11.supply ability 100000 sets per month
12.delivery time 3-15days
13.packing Original package, Neutral package.(Single package), Wooden package + pallet; Carton package + pallet. Or as your requirements
14.main market North and South America,Middle East, South-east Asia,European,Aferica,Australia
15.application

Automobile, machine tools, motor, instrument, construction machines,railroad cars, agricultural machinery and all kinds of professional machinery

Other types of tapered roller bearings

BEARING CODE DIMENSION WEIGHT
NEW CODE OLD CODE
30306X2B 27706E 30×72×24.5 0.481
30309X2B 27709 45×100×31.75 1.057
27709K 45×100×32 1.07
30307 27713E 65×140×39 2.707
350211X2C9 55×100×42 1.61
2097724 120×200×48 12
352124 2097724E 120×200×48 12.553
352132 2097732 160×270×150 31.4
7804Y 19.05×45.237×16.63 0.124
7805Y 26×57.15×17.46 0.222
7809 45×90×38.5 1.11
7809K 45×90×30 0.846
30613 7813E 65×110×30.5 1.1
30615 7815E 75×135×45 2.719
30616 7816E 80×140×45 2.82

High Quality Taper Roller Bearing

A. Tapered roller bearings are separable. The correction of contact wire can reduce stress concentration. Tapered roller bearings can take large radial load and axial load. It can transfer one-way load only. When passing the opposite direction of axial load, it need to be installed another tapered roller bearing which is symmetrical with it.

B. Tapered roller bearings are generally used to support combined load mainly consisting of radial load. Their outer rings are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and loaded mounting can be made.

C. Pairs of tapered roller bearings are used in car and vehicle wheel bearings where they must cope simultaneously with large vertical (radial) and horizontal (axial) forces. Applications for tapered roller bearings are commonly used for moderate speed, heavy duty applications where durability is required. Common real world applications are in agriculture, construction and mining equipment, axle systems, gear box, engine motors and reducers.

Tapred roller bearings type:

1. Single row: 302 Series,303 Series,320 Series,322 Series,323 Series,329 Series,331 Series,

2. Double row: 3519 Series,3529 Series,3510 Series,3520 Series,3511 Series,3521 Series,322 Series,

3. Four row: 3819 Series,3829 Series,3810 series ,3820 Series,3811 Series,3806 Series

Our Services

1.Quality Guarantee: We will guarantee every bearing we sell to our customer.

2.Technology Support:Our company has several engineers who has rich experience in Bearing Produce,arrange and bearing problem.

3.OEM Service:We can offer OEM Service,we do OEM service for many big bearing company in China,such as Zhangjiagang AAA Company

FAQ

1 Q: What's the MOQ of your company?

A: MOQ is 1pcs.

2 Q: Could you accept OEM and customize?

A: YES, we can customize for you according to sample or drawing.

3 Q: Could you supply sample for free?

A: Yes, we can supply certain quantity sample for free, but please buy her a ticket.

4 Q: Is it your company is factory or Trade Company?

A: We have our own factory; our type is factory + trade.

5 Q: What is your production capacity for a month?

A: Our monthly production capacity will be 1000000sets of bearings.
