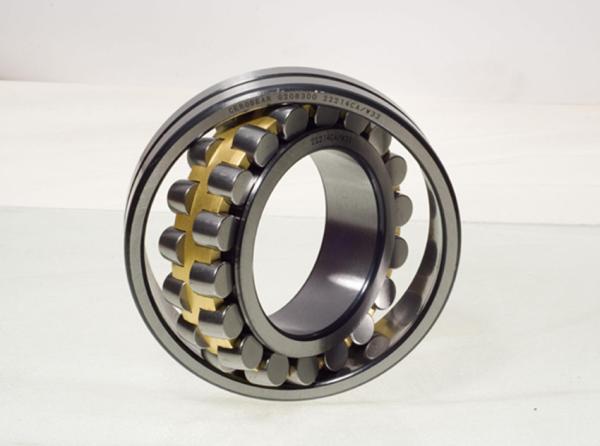

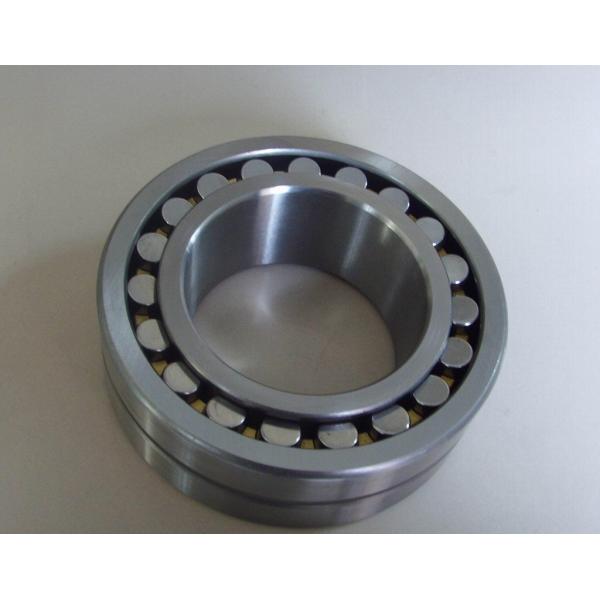

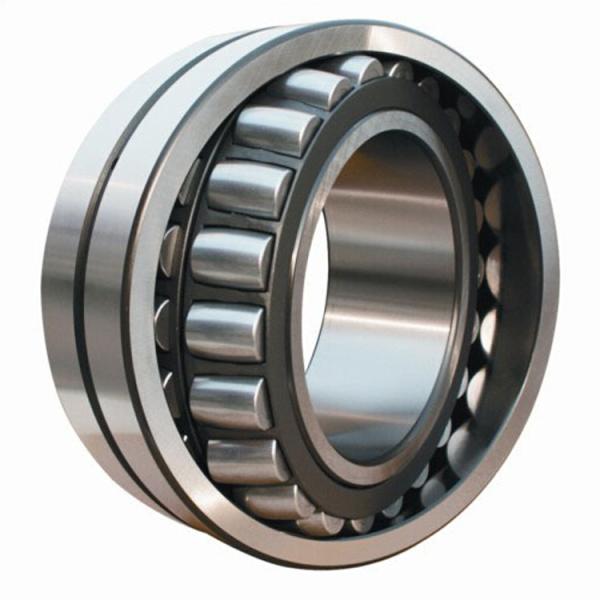

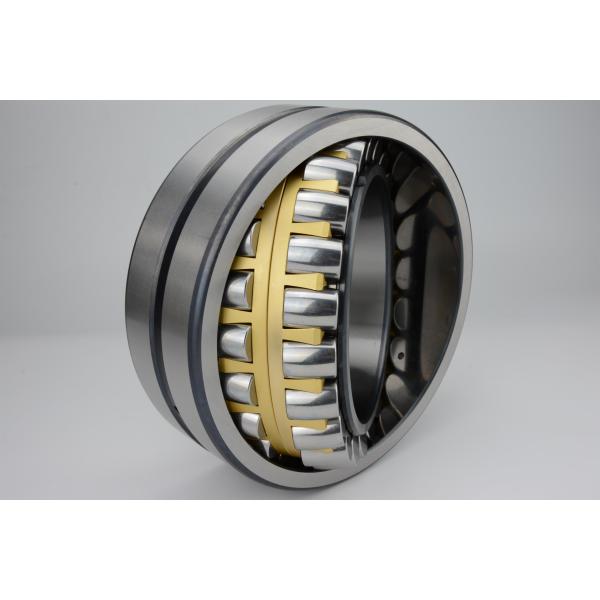

22222 Self Aligning Spherical Roller Bearing For Mining Machine , 18 Months Life
22222 Self Aligning Spherical Roller Bearing For Mining Machine , 18 Months Life
22222 Self Aligning Spherical Roller Bearing For Mining Machine , 18 Months Life
22222 Self Aligning Spherical Roller Bearing For Mining Machine , 18 Months Life
22222 Self Aligning Spherical Roller Bearing For Mining Machine , 18 Months Life
22222 Self Aligning Spherical Roller Bearing For Mining Machine , 18 Months Life
Specifications
Brand Name :
UMT
Model Number :
22222
Certification :
ISO9001:2000
Place of Origin :
China
MOQ :
1 piece / pieces
Price :
US$ 1 - 200 / piece
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability :
100000 piece / pieces per Month
Delivery Time :
2- 7 work days
Packaging Details :
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement
Structure :
spherical roller
Type :
roller
Bore size :
110 mm
Outsize diameter :
200 mm
Width :
53 mm
Wight :
6.82 kg
Clearence :
C0 C2 C3 C4 C5
Vibration :
V1 V2 V3
Sample :
Avaliable
Seals type :
open
Description

22222 Self Aligning Spherical Roller Bearing For Mining Machine , 18 Months Life

Specifications:

High precision spherical roller bearing 22222

Model Number

22222 , 22222CC/W33 , 22222CCK/W33 , 22222E , 22222EK

Structure

spherical roller bearing

Type

roller, spherical roller bearing

Brand Name

UMT Spherical roller bearing

Inside Diameter

110mm

Outside Diameter

200mm

Width

53mm

Net weight

6.8 kg

Seals Type

Open

Number of Row

Doble Row Self aligning roller bearing

Place of Origin

China Self aligning roller bearing

Material

Chrome steel

Cage

Brass, Steel , CC , CCK , E , EK

Vibration Level

V1, V2, V3

Clearance

C0, C1, C2, C3, C4, C5 etc.

Precision Rating

P0, P6, P5, P4, P2

Hardness

59-63HRC

Service

OEM or original brand

Sample available

Yes

Manufacturer

Yes

Quality guaranteed

Yes

Certificate

ISO9001:2008, ISO/TS16949

Application/Function

Automotive, truck, tractors, construction machinery

Other Service

Design service, Buyer label service

Packaging Details

Industrial Packing, Individual Boxed Packing, or OEM

Delivery Detail

2-7 days after receiving the payments or deposit

Description:

These bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. Since the center of curvature of the outer ring raceway surface coincides with the bearing axis, they are self-aligning in a manner similar to that of self-aligning ball bearings.

Therefore, if there is deflection of the shaft or housing or misalignment of their axes, it is automatically corrected so excessive force is not applied to the bearings.
Spherical roller bearings can take, not only heavy radial loads, but also some axial loads in either direction.

They have excellent radial load-carrying capacity and are suitable for use where there are heavy or impact loads.

Quick Detail:

1. Bore Size: 110 mm

2. Outside Diameter: 200mm

3. Model Number: 22222cc/W33 , 22222CK , 22222E , 22222EK

4. Width: 53 mm ball bearing

5. Structure:spherical roller

6. Type: roller

7. Seals Type: open

8. Clearance: C0,C1,C2,C3,C4,C5 etc.

9. Vibration: V1,V2,V3

10. Number of Row: Double Row

11. Service: OEM Service & Good Service

12. Sample available: Yes

13. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

14. Brand Name: UMT, or OEM brand for customer

15. Material: Chrome steel

16. Cage: Steel,Brass

Competitive Advantage:

1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction

4. High limiting speed

5. Large size range

6. variations of structure

Applications:

Home appliances, low noise and high speed electric motors,

automotive components, pumps, machinery.
