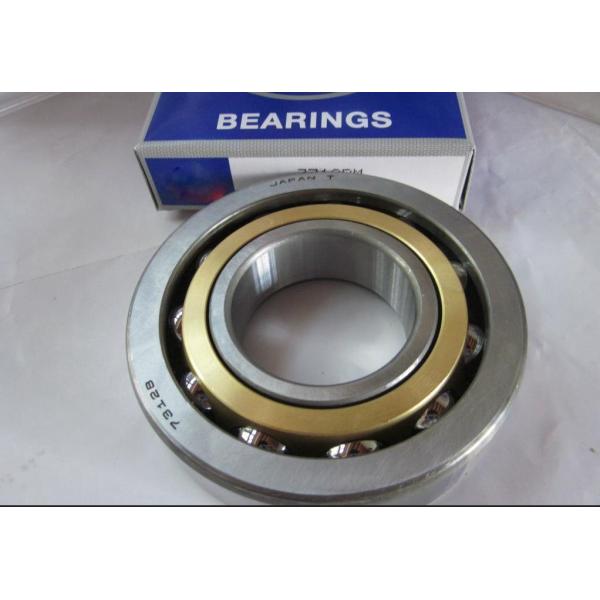

7200C A B Radial Ball Bearing Series Machine Parts Single Row
7200C A B Radial Ball Bearing Series Machine Parts Single Row
7200C A B Radial Ball Bearing Series Machine Parts Single Row
7200C A B Radial Ball Bearing Series Machine Parts Single Row
Specifications
Brand Name :
UMT, NTN, NSK, FAG, INA, TIMKEN or OEM
Model Number :
7200C
Certification :
ISO9001:2008, ISO/TS16949, REACH, ROHS, MSDS, CQC
Place of Origin :
Germany, France, Italy, Japan, Sweden, China etc.
MOQ :
10pieces
Price :
US$ 1 - 50 / piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1,000,000 pieces per month
Delivery Time :
2-7 days after receiving the payments or deposit
Packaging Details :
original package, Netural package, single package, Wooden package+pallet, Carton package+pallet, or as customerized.
Type :
Ball bearing
Structure :
Angular contact ball bearing
Number of Row :
Single row
Seals Type :
Z, ZZ, RS, 2RZ, 2RS,OPEN
Precision Rating :
ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4
Material :
Chrome steel, Stainless steel, Ceramic
Cage :
Steel,Brass,Nylon
Clearance :
C2,C0,C3,C4,C5 etc.
Vibration :
V1,V2,V3
Service :
OEM&ODM both available
Sample available :
Yes
Manufacturer :
Yes
ID :
10mm
OD :
30mm
Width :
9mm
Weight :
0.31kg
Model number :
7200C
Description

7200C A B Angular contact bearing series machine parts Ball Bearing

Model Number 7200C Angular contact ball bearing
Structure Angular contact ball bearing
Type Ball bearing
Inside Diameter 10mm
Outside Diameter 30mm
Width 9mm
Net weight 0.31kg
Seals Type Z, ZZ, RS, 2RZ, 2RS,OPEN
Number of Row Single Row angular contact ball bearing
Material Chrome steel, Stainless steel, Ceramic
Cage Brass, Steel, Nylon
Vibration Level V1, V2, V3
Clearance C0, C1, C2, C3, C4, C5 etc.
Precision Rating P0, P6, P5, P4, P2
Hardness 59-63HRC
Service OEM&ODM both available
Sample available Yes
Manufacturer Yes
Quality guaranteed Yes
Certificate ISO9001:2008, ISO/TS16949
Application/Function Automotive, Truck, Tractors, Construction machinery, Electric Tools, Sports Apparatus, Office equipment, Medical devices
Other Service Design service, Buyer label service
Packaging Details Industrial Packing, Individual Boxed Packing, or OEM
Delivery Detail 2-7 days after receiving the payments or deposit
Angular contact ball bearing
N0. OLD NO. mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
7005AC 461O5 25 47 12 11.3 7.4 17000 21000 0.091
7205C 36205 25 52 15 16.6 10.2 21000 28000 0.135
7205AC 462O5 25 52 15 15.3 9.5 15000 19000 0.135
7205B 66205 25 52 15 14 8.7 12000 15000 0.135
7305B 66305 25 62 17 22.9 13.3 10000 14000 0.243
7006C 36106 30 55 13 15.8 11 20000 26000 0.133
7006AC 46106 30 55 13 14.5 10.1 14000 18000 0.133
7206C 36206 30 62 16 23 14.7 18000 24000 0.208
7206AC 46206 30 62 16 21.3 13.7 13000 16000 0.208
7206B 66206 30 62 16 19.4 12.5 9600 13000 0.208
7306B 66306 30 72 19 27.6 17.4 8700 12000 0.362
7007C 36107 35 62 14 19.1 13.7 17000 22000 0.17
7007AC 46107 35 62 14 17.5 12.6 12000 15000 0.17
7207C 36207 35 72 17 30.4 20.1 15000 20000 0.295
7207AC 46207 35 72 17 28.1 18.6 11000 14000 0.295
7207B 66207 35 72 17 25.6 17 8300 11000 0.295
7307B 66307 35 80 21 32.5 20.2 7700 10000 0.475
7008C 36108 40 68 15 20.5 15.9 15000 20000 0.21
7008AC 46108 40 68 15 18.7 14.6 11000 14000 0.21
7208C 36208 40 80 18 36.4 25.2 14000 18000 0.382
7208AC 46208 40 80 18 33.6 23.3 10000 12000 0.382
7208B 66208 40 80 18 30.6 21.3 7500 10000 0.382
N0. OLD NO. mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
7000C 36100 10 26 8 5.3 2.45 47000 62000 0.021
7000AC 46100 10 26 8 5 2.35 34000 42000 0.021
7200C 36200 10 30 9 5 2.35 40000 54000 0.031
7200AC 462O0 10 30 9 4.65 2.2 29000 37000 0.031
7001C 36101 12 28 8 5.8 2.95 40000 54000 0.024
7001AC 46101 12 28 8 5.4 2.75 29000 37000 0.024
7201C 36201 12 32 10 7.9 3.85 38000 50000 0.038
7201AC 46201 12 32 10 7.45 3.65 27000 34000 0.038
7002C 36102 15 32 9 6.6 3.7 35000 47000 0.035
7002AC 461O2 15 32 9 6.1 3.45 26000 32000 0.035
7202C 36202 15 35 11 8065 4.55 33000 43000 0.048
7202AC 46202 15 35 11 8.1 4.25 24000 29000 0.048
7003C 36103 17 35 10 7.3 4.45 31000 41000 0.045
7003AC 461O3 17 35 10 6.75 4.15 23000 28000 0.045
7203C 36203 17 40 12 10.9 5.9 29000 38000 0.07
7203AC 46203 17 40 12 10.2 5.5 21000 26000 0.07
7004C 36104 20 42 12 11.1 6.6 26000 35000 0.079
7004AC 46104 20 42 12 10.3 6.1 19000 24000 0.079
7204C 36204 20 47 14 15.5 9 24000 32000 0.112
7204AC 462O4 20 47 14 14.5 8.4 17000 22000 0.112
7204B 66204 20 47 14 13.3 7.7 13000 17000 0.112
7005C 36105 25 47 12 12.3 8 23000 30000 0.091
N0. OLD NO. mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
7219C 36219 95 170 32 133 112 6100 8100 2.78
7219AC 46219 95 170 32 122 103 4400 5500 2.78
7219B 66219 95 170 32 111 94 3300 4400 2.78
7319B 66319 95 200 45 158 137 3000 4000 6.12
7020C 36120 100 150 24 75.3 77.2 6500 8600 1.37
7020AC 4612O 100 150 24 68.4 70.6 4700 5900 1.37
7220C 36220 100 180 34 149 127 5700 7600 3.32
7220AC 46220 100 180 34 137 117 4100 5200 3.32
7220B 66220 100 180 34 124 107 3100 4200 3.32
7320B 66320 100 215 47 168 148 2700 3600 7.53
7021C 36121 105 160 26 87.8 89.6 6000 8000 1.73
7021AC 46121 105 160 26 79.8 81.9 4400 5500 1.73
7221C 36221 105 190 36 162 143 5400 7200 3.95
7221AC 46221 105 190 36 149 132 3900 4900 3.95
7221B 66221 105 190 36 135 121 2900 3900 3.95
7321B 66321 105 225 49 191 177 2600 3500 8.62
7022C 36122 110 170 28 101 101 5800 7700 2.14
7022AC 46122 110 170 28 91.9 92.8 4200 5200 2.14
7222C 36222 110 200 38 176 160 5100 6800 4.65
7222AC 46222 110 200 38 162 148 3700 4600 4.65
7222B 66222 110 200 38 147 135 2800 3700 4.65
7322B 66322 110 240 50 213 208 2400 3200 10.1

N0. OLD NO. mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
7219C 36219 95 170 32 133 112 6100 8100 2.78
7219AC 46219 95 170 32 122 103 4400 5500 2.78
7219B 66219 95 170 32 111 94 3300 4400 2.78
7319B 66319 95 200 45 158 137 3000 4000 6.12
7020C 36120 100 150 24 75.3 77.2 6500 8600 1.37
7020AC 4612O 100 150 24 68.4 70.6 4700 5900 1.37
7220C 36220 100 180 34 149 127 5700 7600 3.32
7220AC 46220 100 180 34 137 117 4100 5200 3.32
7220B 66220 100 180 34 124 107 3100 4200 3.32
7320B 66320 100 215 47 168 148 2700 3600 7.53
7021C 36121 105 160 26 87.8 89.6 6000 8000 1.73
7021AC 46121 105 160 26 79.8 81.9 4400 5500 1.73
7221C 36221 105 190 36 162 143 5400 7200 3.95
7221AC 46221 105 190 36 149 132 3900 4900 3.95
7221B 66221 105 190 36 135 121 2900 3900 3.95
7321B 66321 105 225 49 191 177 2600 3500 8.62
7022C 36122 110 170 28 101 101 5800 7700 2.14
7022AC 46122 110 170 28 91.9 92.8 4200 5200 2.14
7222C 36222 110 200 38 176 160 5100 6800 4.65
7222AC 46222 110 200 38 162 148 3700 4600 4.65
7222B 66222 110 200 38 147 135 2800 3700 4.65
7322B 66322 110 240 50 213 208 2400 3200 10.1

N0. OLD NO. mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
7219C 36219 95 170 32 133 112 6100 8100 2.78
7219AC 46219 95 170 32 122 103 4400 5500 2.78
7219B 66219 95 170 32 111 94 3300 4400 2.78
7319B 66319 95 200 45 158 137 3000 4000 6.12
7020C 36120 100 150 24 75.3 77.2 6500 8600 1.37
7020AC 4612O 100 150 24 68.4 70.6 4700 5900 1.37
7220C 36220 100 180 34 149 127 5700 7600 3.32
7220AC 46220 100 180 34 137 117 4100 5200 3.32
7220B 66220 100 180 34 124 107 3100 4200 3.32
7320B 66320 100 215 47 168 148 2700 3600 7.53
7021C 36121 105 160 26 87.8 89.6 6000 8000 1.73
7021AC 46121 105 160 26 79.8 81.9 4400 5500 1.73
7221C 36221 105 190 36 162 143 5400 7200 3.95
7221AC 46221 105 190 36 149 132 3900 4900 3.95
7221B 66221 105 190 36 135 121 2900 3900 3.95
7321B 66321 105 225 49 191 177 2600 3500 8.62
7022C 36122 110 170 28 101 101 5800 7700 2.14
7022AC 46122 110 170 28 91.9 92.8 4200 5200 2.14
7222C 36222 110 200 38 176 160 5100 6800 4.65
7222AC 46222 110 200 38 162 148 3700 4600 4.65
7222B 66222 110 200 38 147 135 2800 3700 4.65
7322B 66322 110 240 50 213 208 2400 3200 10.1
