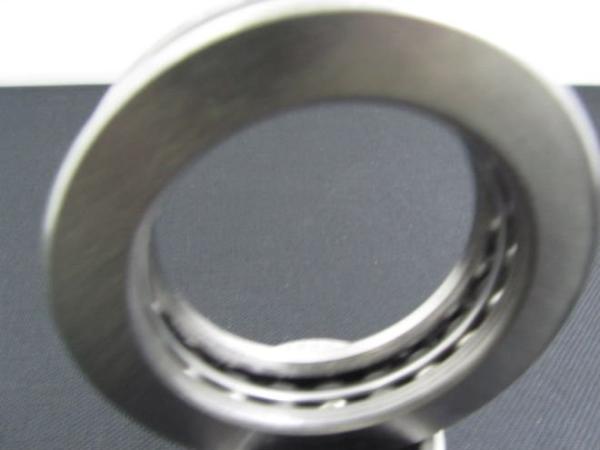

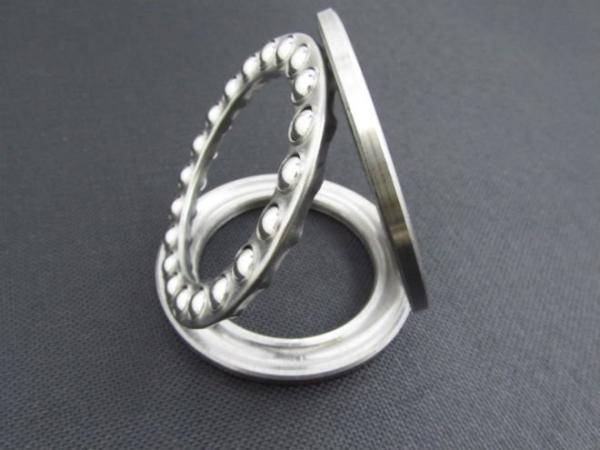

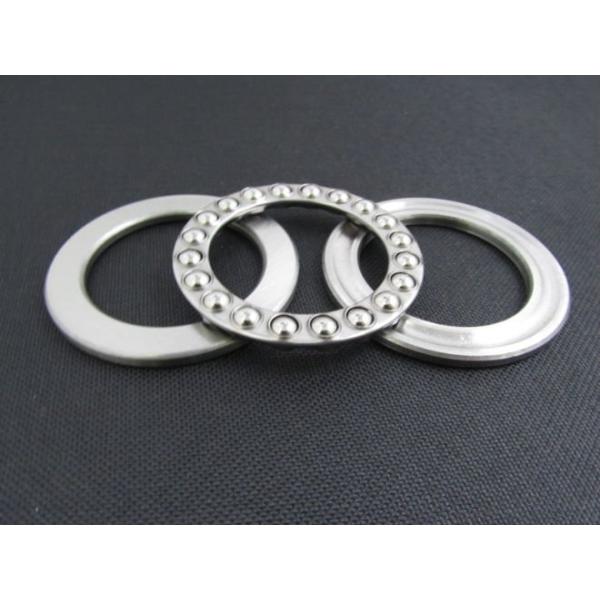

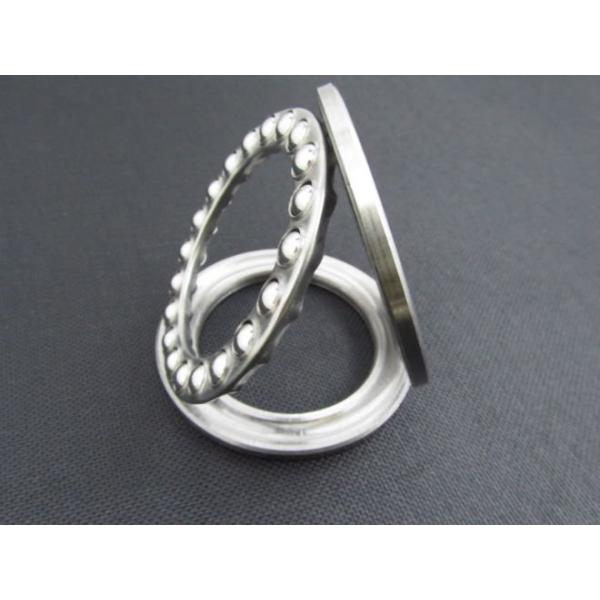

Thrust ball bearing 51202 15*32*12 mm single direction 32mm Outer diameter
Thrust ball bearing 51202 15*32*12 mm single direction 32mm Outer diameter
Thrust ball bearing 51202 15*32*12 mm single direction 32mm Outer diameter
Thrust ball bearing 51202 15*32*12 mm single direction 32mm Outer diameter
Specifications
Brand Name :
UMT, NSK,NTN,KOYO,NACHI,FAG,TIMKEN
Model Number :
51202
Certification :
ISO9001:2000
Place of Origin :
China, Japan, Germany
MOQ :
100pcs
Price :
US0.03-1/Piece
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
100000pcs per month
Delivery Time :
2-7 working days
Packaging Details :
Box, Plastic , as customers' requirement
Material :
Chrome steel, stainless steel
Inner diameter :
15mm
Outer diameter :
32mm
Overrunning speed :
0.6r/min
Brand :
NSK NTN KOYO IKO TIMKEN
Weight :
0.043kg
Structure :
ball bearing
Application :
Textile machine, fans, ventilators, printing machine
Payments :
T/T, L/C, Western Union
Delivery time :
2-7 working days
Description

Thrust ball bearing 51202 15*32*12 mm single direction 32mm Outer diameter

1. Structure: thrust ball bearing

2. Brand Name: UMT, NTN, NSK, TIMKEN, KOYO

3. Bore Size: 15mm

4. Outside Diameter: 32mm

5. Model Number: 51202

6. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

7. Number of Row: single row

8. Place of Origin: Japan

9. Width: 9mm

10. Net weight: 0.043KG

11. Material: GCr15 Stainless steel and so on

12. Type: ball bearing

13. Clearance: C0,C1,C2,C3,C4,C5 etc.

14. Vibration: V1,V2,V3

15. Service: OEM Service & Good Service

16. Sample available: Yes

17. Manufacturer: Yes

Ring material Chrome Steel ,Carbon steel, Stainless steel
Material: GCr15 GCr15SiMn
Precision P0,P6,P5,P4, P2
Clearance: C2 ,C3, C4
Quality standard ISO9001:2008 standard
Service OEM service, Customer design service, buyer label service
Payment terms

A:100% T/T in advance

B: 30% T/T in advance .70% against copy of B/L
Application Heavy machine tool, high-powered marine gear case, oil rig, vertical machine.
Details

Mine machine, port hoisting machine, port transfer equipment, crane;
excavator, concrete machine,paper machine, weave machine, steel
and electronic plants etc. machines and equipments.

We have complete process for the production and quality assurance to make sure our products can meet your requirement. We are committed to be responsible for each set of bearings and industrial products sold to our clients. Relying on strong resource network, we can supply any bearing that you need. Meeting each customer' satisfaction is our pursuit!

Technical data of Thrust Ball Bearing 51110

Model

d

(mm)

D1

(mm)

T

(mm)
51100 10 24 9
51200 10 26 11
51101 12 26 9
51201 12 28 11
51102 15 28 9
51202 15 32 12
51103 17 30 9
51203 17 35 12
51104 20 35 10
51204 20 40 14
51105 25 42 11
51205 25 47 15
51305 25 52 18
51405 25 60 24
51106 30 47 11
51206 30 52 16
51306 30 60 21
51406 30 70 28
51107 35 52 12
51207 35 62 18
51307 35 68 24
51407 35 80 32
51108 40 60 13
51208 40 68 19
51308 40 78 26
51408 40 90 36
51109 45 65 14
51209 45 73 20
51309 45 85 28
51409 45 100 39
51110 50 70 14
51210 50 78 22
51310 50 95 31
51410 50 110 43
51111 55 78 16
51211 55 90 25
51311 55 105 35
51411 55 120 48
51112 60 85 17
51212 60 95 26
51312 60 110 35
51113 65 90 18
51213 65 100 27
51313 65 115 36
51114 70 95 18
51214 70 105 27
51314 70 125 40
51115 75 100 19
51215 75 110 27
51315 75 135 44
51116 80 105 19
51216 80 115 28
51316 80 140 44
51117 85 110 19
51217 85 125 31
51317 85 150 49
51118 90 120 22
51218 90 135 35
51318 90 155 50
51120 100 135 25
51220 100 150 38
51320 100 170 55
51122 110 145 25
51222 110 160 38
51124 120 155 25
51126 130 170 30
51226 130 187 45
51128 140 178 31
51228 140 197 46

Application
  • Road Planes
  • Steel rolling / heavy industry / Transmissions
  • Agricultural, pumps, mining
  • General heavy engineering applications
  • Marine, shipping and paper

Types of Thrust ball bearing

  • Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
  • Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.

Thrust ball bearing 51202 15*32*12 mm single direction 32mm Outer diameterThrust ball bearing 51202 15*32*12 mm single direction 32mm Outer diameter
