25.7mm bore size 205KPP2 non-standard bearing 14kn basic dynamic load rating OEM / ODM
25.7mm bore size 205KPP2 non-standard bearing 14kn basic dynamic load rating OEM / ODM
25.7mm bore size 205KPP2 non-standard bearing 14kn basic dynamic load rating OEM / ODM
25.7mm bore size 205KPP2 non-standard bearing 14kn basic dynamic load rating OEM / ODM
Specifications
Brand Name :
UMT, or OEM
Model Number :
205KPP2
Certification :
ISO9001:2008, ISO/TS16949, REACH, ROHS, MSDS, CQC
Place of Origin :
Germany, France, Italy, Japan, Sweden, China etc.
MOQ :
10pieces
Price :
US$ 1 - 50 / piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1,000,000 pieces per month
Delivery Time :
2-7 days after receiving the payments or deposit
Packaging Details :
original package, Netural package, single package, Wooden package+pallet, Carton package+pallet, or as customerized.
Type :
Special
Seals Type :
ZZ
Precision Rating :
ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4
Material :
Chrome steel, Stainless steel
Cage :
Steel,Brass,Nylon
Clearance :
C2,C0,C3,C4,C5 etc.
Vibration :
V1,V2,V3
c :
OEM&ODM both available
Sample available :
Yes
Manufacturer :
Yes
Bore Size :
25.7mm
Width: :
25.4mm
basic dynamic load rating: :
14kn
basic static load rating: :
7.85kn
Outside Diameter :
52mm
Description

25.7mm bore size 205KPP2 non-standard bearing 14kn basic dynamic load rating OEM / ODM

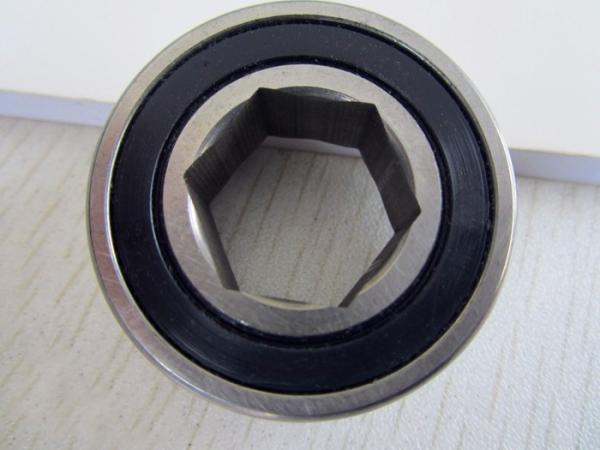

Hex bore: 205KRR2 205KPP2

Round bore: 205KR3

Agricultural machinery bearings act as a supporting component of rotation axis or removable part on many machinery such as agricultural truck, tractor, diesel engine, motor and thresher etc.

25.7mm bore size 205KPP2 non-standard bearing 14kn basic dynamic load rating OEM / ODM

30 / 32 / 33 Series Tapered Roller Bearing 30203 Bearings Supplier
Model Number 30203 Tapered Roller Bearing
Type Special
Outside diameter 52mm
Inner ring width 25.4mm
Bore size 25.7mm
Net weight 0.47kg
Seals Type Z, ZZ, RS, 2RZ, 2RS,OPEN
Material Chrome steel, Stainless steel
Cage Brass, Steel, Nylon
Vibration Level V1, V2, V3
Clearance C2, C0, C3, C4, C5 etc.
Precision Rating P0, P6, P5, P4, P2
Hardness 59-63HRC
Service OEM&ODM both available
Sample available Yes
Manufacturer Yes
Quality guaranteed Yes
Certificate ISO9001:2008, ISO/TS16949
Application/Function Automotive, truck, tractors, construction machinery, Electric Tools, Sports Apparatus, Office equipment, Medical devices, Defense, Nuclear, Electric Power Generation, Wind Energy, Robotics, Medical & Dental, Agriculture, Food Processing etc.
Other Service Design service, Buyer label service
Packaging Details Industrial Packing, Individual Boxed Packing, or OEM
Delivery Detail 2-7 days after receiving the payments or deposit
MODEL
 TYPE SIZE mm dynamic load static load weight
H d1 D C B N N kg
204KPP2 3 17.653 20.24 47 14 20.96 12800 6650 0.34
204KRR2 1 17.653 20.24 47 14 20.96 12800 6650 0.32
204KRRB2 2 17.653 20.24 47 14 20.96 12800 6650 0.32
204KPPB2 4 17.653 20.24 47 14 20.96 12800 6650 0.32
205KPP2 3 22.25 25.7 52 15 25.4 14000 7850 0.47
205KRR2 1 22.25 25.7 52 15 25.4 14000 7850 0.44
205KPPB2 4 22.25 25.7 52 15 25.4 14000 7850 0.47
205KRRB2 2 22.25 25.7 52 15 25.4 14000 7850 0.44
206KRR6 1 25.425 29.26 62 16 24 19500 11300 0.75
206KRRB6 2 25.425 29.26 62 16 24 19500 11300 0.75
G207KPPB2 4 28.6 32.97 72 19 37.7 25700 15300 1.1
207KRRB9 2 28.6 32.97 72 17 37.7 25700 15300 1
207KRRB12 2 28.6 32.97 72 17 25 25700 15300 0.87
207KPPB3 4 31.775 36.65 72 17 37.7 25700 15300 0.87
207KPP3 3 31.775 36.65 72 17 25 25700 15300 0.87
GW208PPB22 4 31.877 36.83 80 21 36.5 29500 18100 1.5
W208KRRB6 2 34.95 40.3 80 21 36.5 29500 18100 1.31
W208PPB16 4 31.775 36.65 80 18 36.5 29500 18100 1.45
W208PP21 3 31.775 36.65 80 18 36.5 29500 18100 1.45
G209KPPB2 4 38.125 43.94 85 19 30 31600 20600 1.26
209KRRB2 2 38.125 43.94 85 19 30 31600 20600 1.27
210PPB20 4 31.877 36.83 90 22 36.5 35000 23200 2
210PP20 3 31.877 36.83 90 22 36.5 35000 23200 2.05
G210KPPB2 4 38.125 43.94 90 22 30 35000 23200 1.89
GC211-32-NLC 3 44.475 51.31 100 25 57.15 43500 29200 3.35
