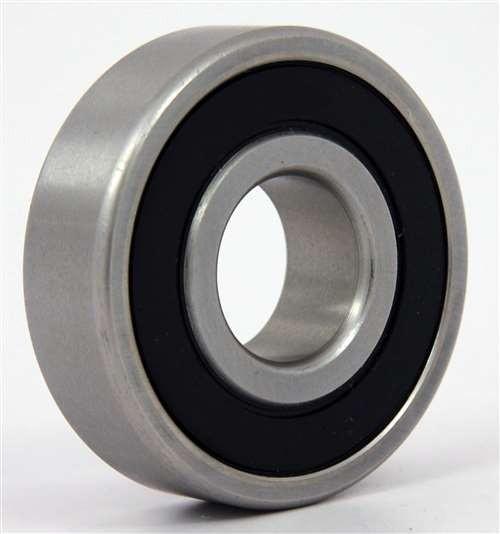

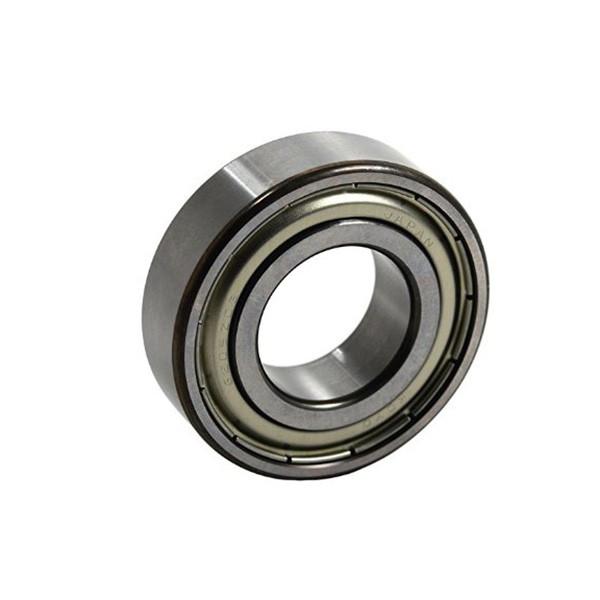

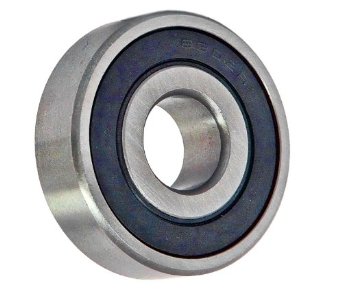

Z1V1 Z2V2 Chrome Steel / Carbon Steel 6302 ZZ Metal Ball Bearing 6302 RS
Z1V1 Z2V2 Chrome Steel / Carbon Steel 6302 ZZ Metal Ball Bearing 6302 RS
Z1V1 Z2V2 Chrome Steel / Carbon Steel 6302 ZZ Metal Ball Bearing 6302 RS
Z1V1 Z2V2 Chrome Steel / Carbon Steel 6302 ZZ Metal Ball Bearing 6302 RS
Z1V1 Z2V2 Chrome Steel / Carbon Steel 6302 ZZ Metal Ball Bearing 6302 RS
Z1V1 Z2V2 Chrome Steel / Carbon Steel 6302 ZZ Metal Ball Bearing 6302 RS
Specifications
Brand Name :
UMT,OEM,Brand bearing
Model Number :
6302
Certification :
ISO9001:2008, ISO/TS16949, REACH, ROHS, MSDS, CQC
Place of Origin :
Germany, France, Italy, Japan, Sweden, China etc.
MOQ :
10pieces
Price :
US$ 1 - 50 / piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1,000,000 pieces per month
Delivery Time :
2-7 days after receiving the payments or deposit
Packaging Details :
original package, Netural package, single package, Wooden package+pallet, Carton package+pallet, or as customerized.
Type :
Ball bearing
Structure :
deep groove
Number of Row :
Single row
Seals Type :
Z, ZZ, RS, 2RZ, 2RS,OPEN
Precision Rating :
ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4
Material :
Chrome steel, Stainless steel
Cage :
Steel,Brass,Nylon
Clearance :
C2,C0,C3,C4,C5 etc.
Vibration :
V1,V2,V3
Service :
OEM&ODM both available
Sample available :
Yes
Manufacturer :
Yes
ID :
15mm
OD :
42mm
Width :
13mm
Description

Z1V1 Z2V2 Chrome Steel / Carbon Steel Deep Groove 6302 ZZ Ball Bearing 6302 RS

Ball Bearing Description:

Single row radial deep groove ball bearings are rigid and non-separable in design. They incorporate deep running grooves on their inner and out rings creating a ball path that accepts axial and radial loading. The balls are separated by a cage that permits high speed operation. Their ability to accept misalignment is very limited however. In normal operation they can't handle misalignment any greater than 10 angular minutes from their centre position. Single Row Deep Groove Ball Bearings have the highest speed capacity of all rolling element bearings, and are by far the most popular bearing type in use today.

Applications:

The deep groove ball bearing can be used in many different places such as:

Gearbox, instruments and meters, electric motor, electric appliance, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, and so on.

Deep groove ball bearings are the most widely used bearing type. Consequently, they are available from in many designs, variants, series and sizes.

The deep groove ball bearing have 6000 series ,6200series, 6300series , 6400 series ,

16000 series 62200 series ,62300 series ,61700 series 61800 series 61900 series .

Z1V1 Z2V2 Chrome Steel / Carbon Steel Deep Groove 6302 ZZ Ball Bearing 6302 RS
Model Number 6302 2rs
Structure deep groove
Type ball bearing
ID 15mm
OD 42mm
Width 13mm
Seals Type Z, ZZ, RS, 2RZ, 2RS,OPEN
Number of Row Single Row
Material Chrome steel, Stainless steel
Cage Brass, Steel, Nylon
Vibration Level V1, V2, V3
Clearance C2, C0, C3, C4, C5 etc.
Precision Rating P0, P6, P5, P4, P2
Hardness 59-63HRC
Service OEM&ODM both available
Sample available Yes
Manufacturer Yes
Quality guaranteed Yes
Certificate ISO9001:2008, ISO/TS16949
Application/Function Steel Industry, Mining&Construction, Paper making Machinery,vibrating screens, shakers, conveyors
Other Service Design service, Buyer label service
Packaging Details Industrial Packing, Individual Boxed Packing, or OEM
Delivery Detail 2-7 days after receiving the payments or deposit

Other styles:

Bearing
Number		 Bore
d
(mm)		 OD
D(mm)		 Width
W(mm)		 Dynamic Load
Rating
(lbs)		 Static Load
Rating (lbs)		 Speed Rating
Grease
(RPM)		 Speed Rating
Oil
(RPM)		 Weight
(lb)
6300 10 35 11 1,820 780 17,000 26,000 0.11
6301 12 37 12 2.180 950 16,000 23,000 0.13
6302 15 42 13 2,570 1,230 13,000 20,000 0.18
6303 17 47 14 3,060 1,470 11,000 18,000 0.25
6304 20 52 15 3,580 1,780 10,000 17,000 0.32
6305 25 62 17 4,640 2,520 9,500 13,000 0.52
6306 30 72 19 6,000 3,370 9,000 12,000 0.80
6307 35 80 21 7,500 4,300 8,500 10,000 1.00
6308 40 90 23 9,100 5,400 7,800 9,200 1.40
6309 45 100 25 11,900 7,200 6,700 8,000 1.80
6310 50 110 27 13,900 8,600 6,400 7,500 2.40
6311 55 120 29 16,100 10,100 5,800 6,800 3.02
6312 60 130 31 18,400 11,700 5,400 6,300 3.81
6313 65 140 33 20,800 13,400 4,900 5,800 4.70
6314 70 150 35 23,400 15,300 4,600 5,400 5.73
6315 75 160 37 25,500 17,400 4,300 5,000 6.84
6316 80 170 39 27,600 19,500 4,000 4,700 8.13
6317 85 180 41 29,800 21,800 3,800 4,500 9.53
6318 90 190 43 32,000 24,100 3,600 4,300 10.80
6319 95 200 45 34,500 26,600 3,400 4,100 12.50
6320 100 215 47 39,000 31,500 3,200 3,950 15.40
6321 105 225 49 41,500 34,500 3,000 3,750 17.70
6322 110 240 50 43,500 40,500 2,850 3,500 21.00
