Roller Cage Bearings Precision Roller Bearing NATR17 PP Needle Roller Bearing

Description:

1. The drawn cup needle roller bearings are needle roller bearings with the deep drawn, thin-walled outer ring with either an open end or closed end.

2. The bearings are characterized by a very low sectional height and high load carrying capacity

3. The bearings are typically used in applications where the housing bore can not be used as a raceway for a needle roller and cage assembly but where a very compact and ecnomical bearing arrangement is required.

4. Typically, drawn cup needle roller bearings have a single row of rollers. However, wide sizes incorporate two needle roller and cage assemblies immediately asjacent to each other with a lubrication hole in the outer ring.

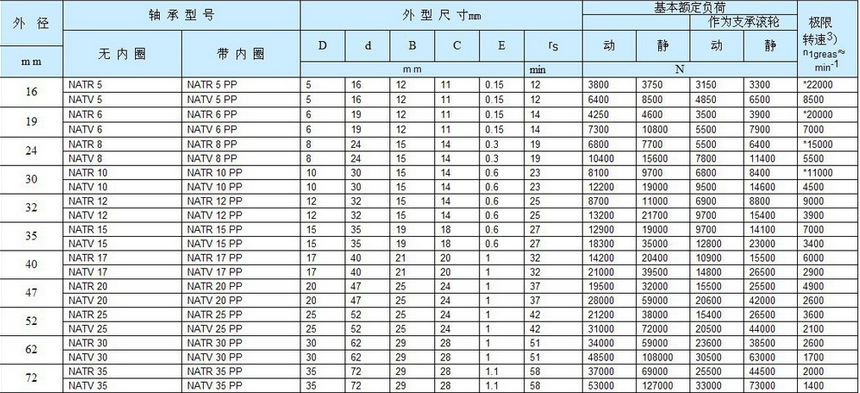

Quick Detail:

1. Structure: Roller bearings

2. Brand Name: UMT, NTN, NSK, TIMKEN, KOYO

3. Bore Size: 17mm

4. Outside Diameter: 40mm

5. Model Number: NATR17 PP

6. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

7. Number of Row: Single row

8. Place of Origin: Japan

9. Width: 21mm

10. Net weight: 144g

11. Material: GCr15 Stainless steel and so on

12. Cage: Steel,Brass,Nylon

13. Type: Roller bearing

14. Clearance: C0,C1,C2,C3,C4,C5 etc.

15. Vibration: V1,V2,V3

16. Service: OEM Service & Good Service

17. Sample available: Yes

18. Manufacturer: Yes

Applications:

They can be used for Transmission system, gearboxes, wheel hubs; Cranes, elevator and lifting

equipment; Agricultural, pumps, mining; Rail and transport use; General engineering applications;

Marine and Shipping;

The usage: Motors, Power tools, Household appliances, Trailers, Casters, Agricultural equipment,

Textile machinery, Printing Machinery, Automotive applications, Caravan wheel bearings.

Competitive Advantage:

1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction

4. High limiting speed

5. Large size range

6. variations of structure
