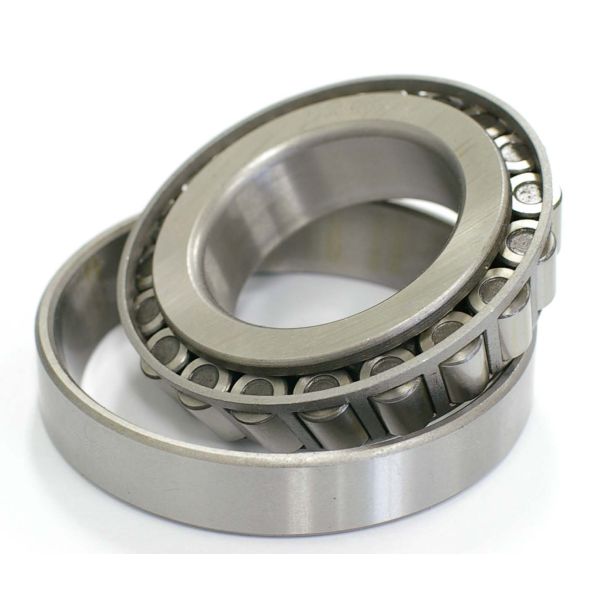

Open Taper Roller Bearing 30212 Graphite Alloy Damper Bearing Bushing
Open Taper Roller Bearing 30212 Graphite Alloy Damper Bearing Bushing
Open Taper Roller Bearing 30212 Graphite Alloy Damper Bearing Bushing
Open Taper Roller Bearing 30212 Graphite Alloy Damper Bearing Bushing
Specifications
Brand Name :
NSK / NTN / FAG / NACHI / KOYO / ASAHI / TIMKEN / UMT
Model Number :
30212
Certification :
ISO9001:2008 / SGS / CE
Place of Origin :
CHINA / JAPAN / USA / GERMANY
MOQ :
10pcs
Price :
USD1.00-50.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000pcs/month
Delivery Time :
2-7 work days
Packaging Details :
Packaging Details: Non -standard inch deep groove ball bearing 16011 /zv bearing packing items : 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag
structure :
Tapered roller
type :
roller
brand name :
NSK / NTN / FAG / NACHI / KOYO / ASAHI / TIMKEN / UMT
bore side :
60mm
outer diameter :
110mm
model number :
30212
seal type :
open
number of row :
single row
breadth :
24mm
weight :
0.913kg
service :
OEM or Costomized services
Description
Product Description

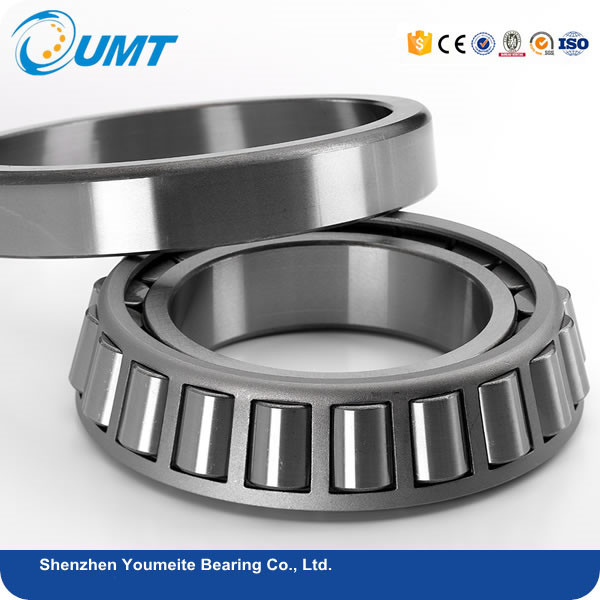

TAPER ROLLER BEARING DETAILS

Tapered roller bearing can be separated from the inner ring with roller cage components together and the outer ring can be installed separately. As amended by the roller and raceway contact at the contact line can reduce the stress concentration. The tapered roller bearing can withstand large radial and axial load. Tapered roller bearings can only pass one-way axial load, axial load in the opposite direction to pass on another with symmetrical installation of tapered roller bearing.

Tapered roller bearings are widely used in automotive, mill, mining, metallurgy, plastics machinery and other industries.

1. Taper roller bearings are the largest amount of single row circular cone roller bearings.

2. Single row circular cone roller bearings, which formed a circle and a group of tapered roller

3. Double row circular cone roller bearing outer ring (or in) is a whole.

TAPER ROLLER BEARING 30212 DESCRITION

Strusture Tapered Roller Bearings
Type Roller bearing
Bore size 60mm
Outside Diameter 110mm
Weight 0.913kg
Breadth 24mm
Model number 30212
Precision P0-P6
Seals type open
Clearance C0,C2,C3,C4,C5
Vabration Z1,Z2,Z3,Z4
Number row single row
Application

Home appliances, low noise and high speed electric motors,automotive components, pumps, machinery.

NON-STANDARD BALL BEARING SIZE:

taper roller bearing 32200 series taper roller bearing 31300 series
No. d D T No. d D T
32203 17 40 17.25
32204 20 47 19.25 31304 20 52 16.25
32205 25 52 19.25 31305 25 62 18.25
32206 30 62 21.25 31306 30 72 20.75
32207 35 72 24.25 31307 35 80 22.75
32208 40 80 24.75 31308 40 90 25.25
32209 45 85 24.75 31309 45 100 27.25
32210 50 90 24.75 31310 50 110 29.25
32211 55 100 26.75 31311 55 120 31.5
32212 60 110 29.75 31312 60 130 33.5
32213 65 120 32.75 31313 65 140 36
32214 70 125 33.25 31314 70 150 38
32215 75 130 33.25 31315 75 160 40
32216 80 140 35.25 31316 80 170 42.5
32217 85 150 38.5 31317 85 180 44.5
32218 90 160 42.5 31318 90 190 46.5
32219 95 170 45.5 31319 95 200 49.5
32220 100 180 49 31320 100 215 56.5
taper roller bearing 30200 series taper roller bearing 3200 series
No. d D T No. d D T
30203 17 40 13.5 32004 20 42 15
30204 20 47 15.5 32005 25 47 15
30205 25 52 16.5 32006 30 55 17
30206 30 62 17.5 32007 35 62 18
30207 35 72 18.5 32008 40 68 19
30208 40 80 20 32009 45 75 20
30209 45 85 21 32010 50 80 20
30210 50 90 22 32011 55 90 23
30211 55 100 23 32012 60 95 23
30212 60 110 24 32013 65 100 23
30213 65 120 25 32014 70 110 25
30214 70 125 26.5 32015 75 115 25
30215 75 130 27.4 32016 80 125 29
30216 80 140 28.5 32017 85 130 29
30217 85 150 31 32018 90 140 32
30218 90 160 33 32019 95 145 32
30219 95 170 35 32020 100 150 32
30220 100 180 37.5 32021 90 140 32


Company Information

Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearingcorporation responsible for oversea marketing.

Our plant shandong UMT has been working in the filed of bearing design and

manufacturing for more than 10years now is taking a leading position in mainland china.

Our plant has more than 500 employees , including 30 bearing professional techincians;

more than 600 new bearing items can be completed each year.

we can produce many kinds of bearing as customer's requirement.
