Chrome steel GCr15 Cylindrical Roller Thrust Bearing 51101 , high precision
Chrome steel GCr15 Cylindrical Roller Thrust Bearing 51101 , high precision
Chrome steel GCr15 Cylindrical Roller Thrust Bearing 51101 , high precision
Chrome steel GCr15 Cylindrical Roller Thrust Bearing 51101 , high precision
Specifications
Brand Name :
KOYO, NSK, THK, OEM OR TRIETERN
Model Number :
51101
Place of Origin :
china
MOQ :
5 pcs
Price :
0.1-10 usd /pc
Payment Terms :
T/T, Western Union, L/C, D/A
Supply Ability :
1000000pcs/month
Delivery Time :
After receive the deposit
Packaging Details :
Original package, Neutral package, single package, Wooden package+pallet, Carton package+pallet, or as customerized.
Material :
Chrome steel GCr15
Model :
Ball Thrust Bearing 51100
Clearance :
C0,C2, C3, C4
Internal elimination code :
C0 C2 C3 C4 C5 bearing
Lubrication :
Oil /Grease
Use the feature :
Low noise
bearing 51100 size :
12x26x9mm
Quality :
High precision
Precision Rating :
P0, P6, P5
Samples :
availeble
Description

Chrome steel GCr15 Cylindrical Roller Thrust Bearing 51101 , high precision

Model Number 51101
Brand Name UMT
Structure Thrust ball bearing
Type Ball
Size d*D*B(mm) 12*26*9
Grade G100-G1000
Hardness HRC62-66
Precision P0,P6,P5,P4,P2
Clearance C2,Cn,C3,C4
Vibration V1,V2,V3,V4
Noise level Z1,Z2,Z3,Z4
Rings Material Chrome steel ,Carbon steel, Stainless steel
Cages Material Nylon ,Steel , Brass
Certifications ISO 9001:2008
Place of Origin China (Mainland)
Sample Available
Package According to your requirements.
Application

Mainly used in metallurgy, mining, petroleum, chemical industry, construction machinery and other areas

Features

Retainer: Brass/Nylon/Steel as your requirement

single direction

restricted tolerances

vibration resistance

suitable for high speed

Radial load Product

Description:

· The single direction thrust ball bearing consist of a shaft washer, a housing washer and a ball and cage thrust assembly.

· The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately.

· The types: bearings with a flat seat surface on the housing washer, bearings with a sphered seat surface and bearings with a sphered housing washer can be used together with a sphered seat washer

· This type bearing can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.


Axial contact ball bearing Type Numbers:

Bearing Type Bearing Size d*D*B(mm) Bearing N.W.(kg) Bearing Type Bearing Size d*D*B(mm) Bearing N.W.(kg)
New Code Original Code New Code Original Code
51100 8100 10*25*9 0.019 51200 8200 10*26*11 0.0293
51101 8101 12*26*9 0.021 51201 8201 12*28*11 0.0324
51102 8102 15*28*9 0.024 51202 8202 15*32*12 0.0444
51103 8103 17*30*9 0.025 51203 8203 17*35*12 0.0506
51104 8104 20*35*10 0.038 51204 8204 20*40*14 0.0773
51105 8105 25*42*11 0.056 51205 8205 25*47*15 0.109
51106 8106 30*47*11 0.06 51206 8206 30*52*16 0.138
51107 8107 35*52*12 0.066 51207 8207 35*62*18 0.22
51108 8108 40*60*13 0.12 51208 8208 40*68*19 0.27
51109 8109 45*65*14 0.15 51209 8209 45*73*20 0.32
51110 8110 50*70*14 0.16 51210 8210 50*78*22 0.39
51111 8111 55*78*16 0.24 51211 8211 55*90*25 0.619
51112 8112 60*85*17 0.29 51212 8212 60*95*26 0.69
51113 8113 60*90*17 0.324 51213 8213 65*100*27 0.75
51114 8114 70*95*17 0.36 51214 8214 70*105*27 0.79
51115 8115 75*100*19 0.392 51215 8215 75*110*27 0.85
51116 8116 85*105*19 0.404 51216 8216 80*115*28 0.925
51117 8117 85*105*19 0.46 51217 8217 85*125*31 1.3
51118 8118 90*120*22 0.64 51218 8218 90*135*35 1.77
51120 8120 100*130*25 1 51220 8220 100*150*38 2.4
51122 8122 110*145*25 1.08 51222 8222 110*160*38 2.6
51124 8124 120*155*25 1.16 51224 8224 120*170*39 2.9
51126 8126 130*170*30 1.8 51226 8226 130*190*45 3.91
51128 8128 140*180*31 2.1 51228 8228 140*200*46 4.6
51130 8130 150*190*31 2.2 51230 8230 150*215*50 5.8
51132 8132 160*200*31 2.3 51232 8232 160*225*51 6.7
51134 8134 170*215*34 3.3 51234 8234 170*240*55 8.3
51136 8136 180*225*34 3.5 51236 8236 180*250*56 8.9
51138 8138 190*240*37 4.1 51238 8238 190*270*62 11.9
51140 8140 200*250*37 4.2 51240 8240 200*280*62 12.4


Packaging:

1. Industrial packaging: plastic bag/plastic tube + kraft paper + carton + plywood pallets
2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets
3. As the clients' requirement

Shipping:

DHL, FEDEX, TNT,ARAMEX
By SEA
By AIR


Our services:

1.Your inquiry to our product & price will be replied within 24hours.
2.Well-trained & experienced staff are to answer all your inquiries in English of course.
3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sale service offered, please get back if you got question.

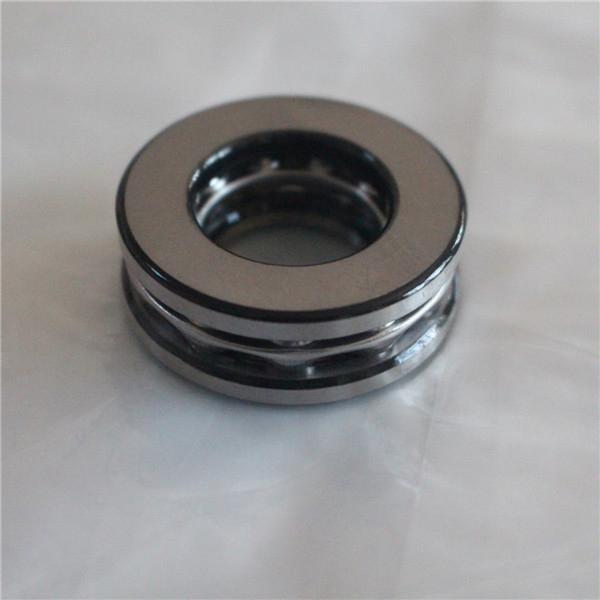

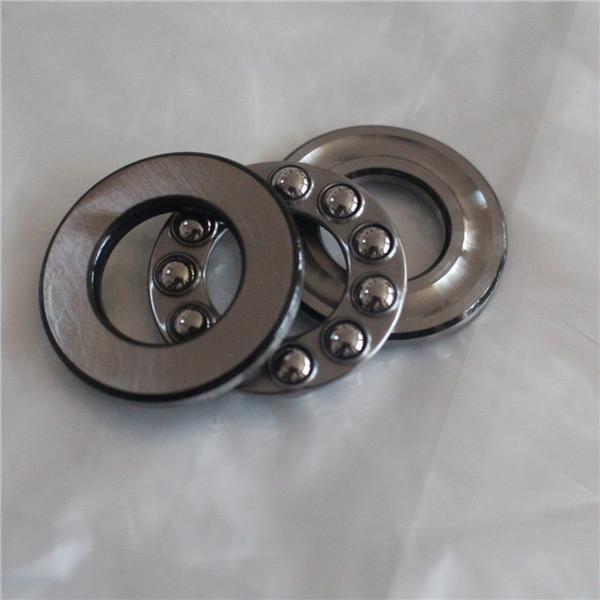

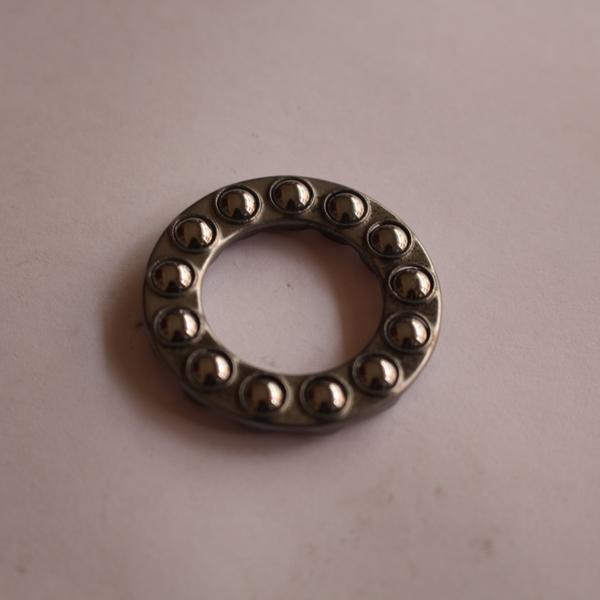

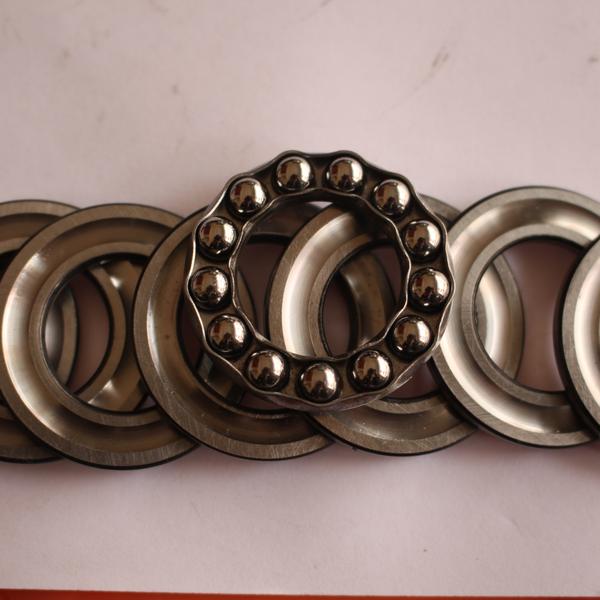

Photos of Low Prices Ball Thrust Bearing 51100
