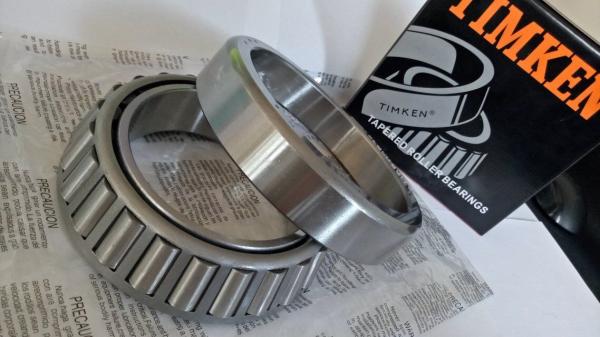

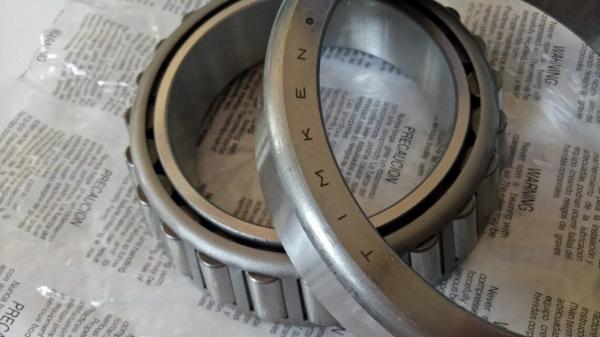

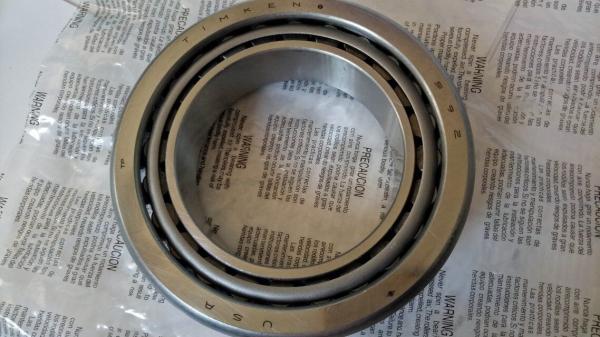

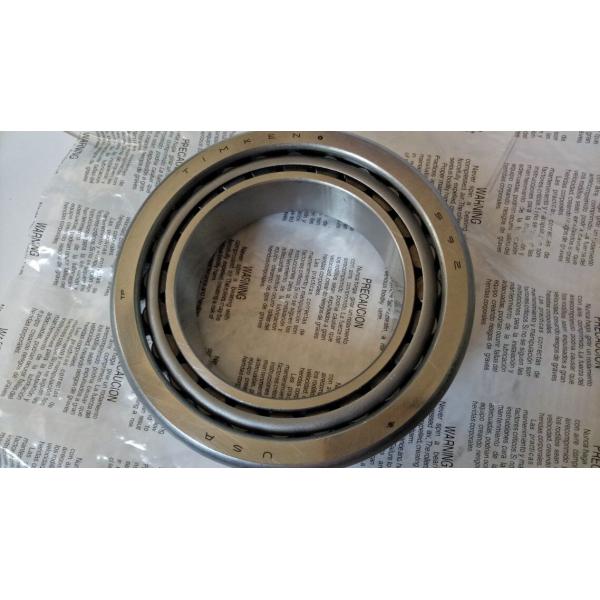

Motors TIMKEN Hub Bearing Taper Roller with high strength

Description:

1)Features:

Capable of taking high radial loads and axial loads in a single direction, taper roller bearings are also available in two and four row versions to support axial loads in either direction.

Optimised designs can be supplied with high strength cages and, for arduous applications, in a range of advanced special materials.

(2)Structure types:

• Single Row Tapered Roller Bearing

These bearings are capable of taking high radial loads and also axial loads in one direction.

• Double Row Tapered Roller Bearing

These bearings are capable of taking high radial loads and also axial loads in two directions.

• Four Row Tapered Roller Bearing

Sealed version generally used for work roll of rolling mills.

Quick Detail:

1. Type: roller

2. Structure: Taper roller

3. Bore Size: 35 mm

4. Outside Diameter: 65 mm

5. Model Number: LM48548/LM48510

6. Brand Name: UMT, NTN, NSK, TIMKEN, KOYO

7. Seals Type: open

8. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

9. Place of Origin: Germany

10. Number of Row: Single Row

11. Material: Chrome steel, Stainless steel

12. Thickness: 18 mm ball bearing

13. Net weight: 0.26 kg

14. Clearance: C0,C1,C2,C3,C4,C5 etc.

15. Vibration: V1,V2,V3

16. Cage: Steel,Brass,Nylon

17. Type: roller , taper roller

18. Service: OEM Service & Good Service

19. Sample available: Yes

20. Manufacturer: Yes

Applications:

Home appliances,low noise and high speed electric motors,automotive components, pumps, machinery.

Specifications:

Competitive Advantage:

1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction

4. High limiting speed

5. Large size range

6. variations of structure
