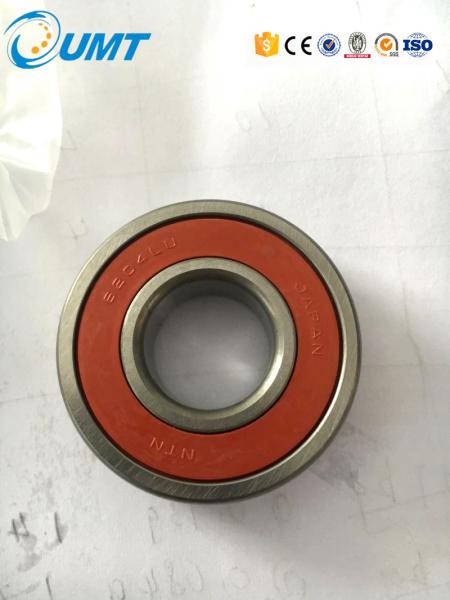

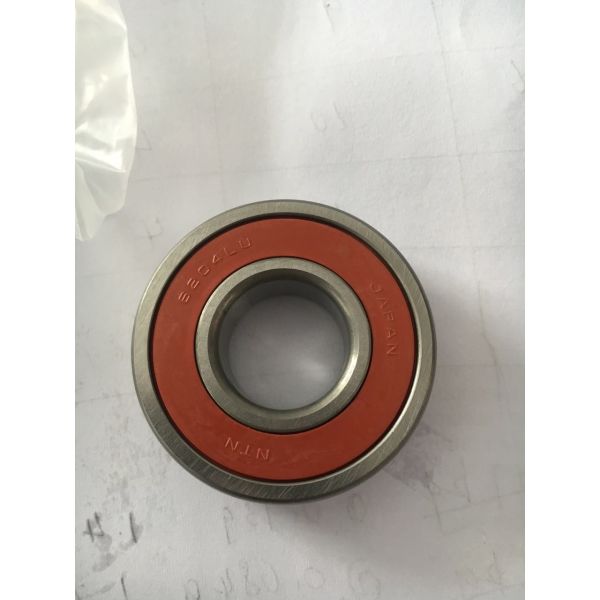

C3 Z3 V3 Single Row Deep Groove Ball Bearing 6204 LLU CM / 2ASU1 For Seed Transmissions
C3 Z3 V3 Single Row Deep Groove Ball Bearing 6204 LLU CM / 2ASU1 For Seed Transmissions
C3 Z3 V3 Single Row Deep Groove Ball Bearing 6204 LLU CM / 2ASU1 For Seed Transmissions
C3 Z3 V3 Single Row Deep Groove Ball Bearing 6204 LLU CM / 2ASU1 For Seed Transmissions
Specifications
Brand Name :
NTN
Model Number :
6204 LU
Certification :
ISO9001:2000
Place of Origin :
Japan
MOQ :
100 piece / pieces
Price :
US$ 0.11 - 50 / piece
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability :
100000 piece / pieces per Month
Delivery Time :
2-7 days after receiving the payments or deposit
Packaging Details :
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement
Structure :
deep groove ball
Type :
ball bearing
Vibration :
V1 V2 V3 V4
Sample :
Avaliable
Seals type :
open
Precision Rating :
P0 P6 P5 P4 P2
Service :
OEM Customized Services
Cage :
Steel Cage.copper Cage.nylon Cage
Material :
Z1V1 Z2V2 Z3V3 Z4V4
Clearence :
C0 C2 C3 C4 C5
Number of Row :
Single Row
Description

C3 Z3 V3 Single Row Deep Groove Ball Bearing 6204 LLU CM / 2ASU1 For Seed Transmissions

Quick Detail:

1. Structure: deep groove ball bearing

2. Type: Ball Bearing

3. Brand Name: UMT, NTN, NSK, TIMKEN, KOYO,NACHI , IKO , FAG ect.

4. Bore Size: 20mm

5. Outside Diameter: 47 mm

6. Net weight: 0.107kg

6. Model Number: NTN 6204 LU

7. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

8. Seals Type: open

9. Number of Row: Single Row

10. Place of Origin: Japan

11. Material: Chrome steel, Stainless steel

12. Cage: Steel,Brass,Nylon

13. Clearance: C0,C1,C2,C3,C4,C5 etc.

14. Vibration: V1,V2,V3

15. Service: OEM Service & Good Service

16. Sample available: Yes

17. Manufacturer: Yes

Specifications:

C3 Z3V3 NTN Deep Groove Ball Bearings 6204 LLU CM / 2ASU1 for Seed Transmissions

Model Number

deep groove ball bearing 6204LU

Inside Diameter

20mm

Outside Diameter

47mm

Width

14mm

Net weight

0.107kg

Seals Type

ZZ , 2RS , Open

Material

Chrome steel, Stainless steel

Model Numbers

6204 2RS , 6204 ZZ , 6204 2LS , 6204 NR , 6204 N , 6204 DDU , 6204 LLU

Certificate

ISO9001:2008, ISO/TS16949

Application/Function

Automotive, truck, tractors, construction machinery,chemical machine , semi-conductor equipment, pump,food machinery,electonic equipment

Other Service

Design service, Buyer label service

Packaging Details

Industrial Packing, Individual Boxed Packing, or OEM

Delivery Detail

2-7 days after receiving the payments or deposit

DEEP GROOVE BALL BEARING APPICATION

  • Electric Motors
    Quiet operation realized by proper clearance, recommend fitting practice. Lower noise lubricants. Suitable for all speed ranges applications requiring low noise.
  • Automotive Alternators
    Longer life in vibrations and high temperature environments.
  • Automotive Starters
    High reliability in periodic use of vibrations and high temperature environments.
  • Compressors
    Long life pump rotors which compress air in low temperature and low viscosity lubrication environments.
  • Blowers
    Quiet and stable operation on fan rotors at high speed, in environments with vibration and high temperatures
  • Transmissions
    Compact design for light weight to achieve high performance.

Description:

Deep groove ball bearing are the most commom type of rolling bearing and are availabel in both single row and double row desings .

There application is very wind. The raceway groove on both inner and outer rings have circular arcs of slightly larger radius than that of the balls. In addition, radial loads , axial loads can be imposed in either direction.

Because of their low torque, they are highly suitable for applications where high

speeds and low power loss are required.

We also can supply another item bearing , as below :

Model

Specification(d*D*B)

 Weight(kg)

16005

 25*47*8 0.059

6005

 25*47*12 0.079
6205 25*52*15 0.129
6305 25*62*17 0.235
6405 25*80*21 0.530
60/28 28*52*12 0.175
63/28 28*68*18 0.287
6706 30*3*4 0.008
6906 30*47*9 0.052
6006 30*55*13 0.116
6306 30*72*19 0.345
60/32 32*65*17 0.122
62/32 32*65*17 0.225
6807 35*47*7 0.027
6907 35*55*10 0.075
6308 40*90*23 0.636
6808 40*52*7 0.031
6008 40*68*15 0.190
6208 40*80*18 0.366
6408 40*110*27 1.230
6309 45*100*25 0.829
6009 45*75*16 0.241
6309 45*100*25 0.829
6810 50*65*7 0.050
6010 50*80*16 0.261
6210 50*90*20 0.459
6811 55*72*9 0.081
6911 55*80*13 0.189
16011 55*90*11 0.257
... ... ...

Competitive Advantage:

1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction

4. High limiting speed

5. Large size range

6. variations of structure

C3 Z3 V3 Single Row Deep Groove Ball Bearing 6204 LLU CM / 2ASU1 For Seed Transmissions
