Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Specifications
Brand Name :
No brand
Model Number :
No model
Certification :
ISO 9001:2008
Place of Origin :
Shenzhen, China
MOQ :
1 pc
Price :
Negotiate
Payment Terms :
T/T. Mould payment terms: 40% Deposit with P.O., Middle Term(first trial)30%, Final Term(before shipment)30%. Production payment terms: 50% Deposit with P.O., Final Term(before shipment)50%.
Supply Ability :
as customer's request
Delivery Time :
5 weeks
Packaging Details :
By Crate
Mold No. :
NTT-210-34
Mold Base :
15 Square Flange
Core/ Cavity :
H13 Steel
Cavity Number :
2
Gate Type :
Tunnel Gate
Material :
Grivory+GV-5HL
Description

Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool

Project Detailed Description :

Mold Number: NTT-210-34
Part Name: 15 Square Flange
Part No.: 120214-WG-15
Core and Cavity: 1.2344(H13)
Slides: 4 slides
Cavity Numbers: two cavity
Injection System: cold runner/tunnel gates
Mould Life: 800,000 Cycles.
Resin Name: Grivory+GV-5HL
Shrinkage: 1.012
Molding Cycle Time: 50s
Tool Dimensions: 300x400x300 mm
Mold Weight: 370 kg
Features: 1 set cavity interchangeable insert.
Machine: 350T
Mold Lead Time: 5 weeks

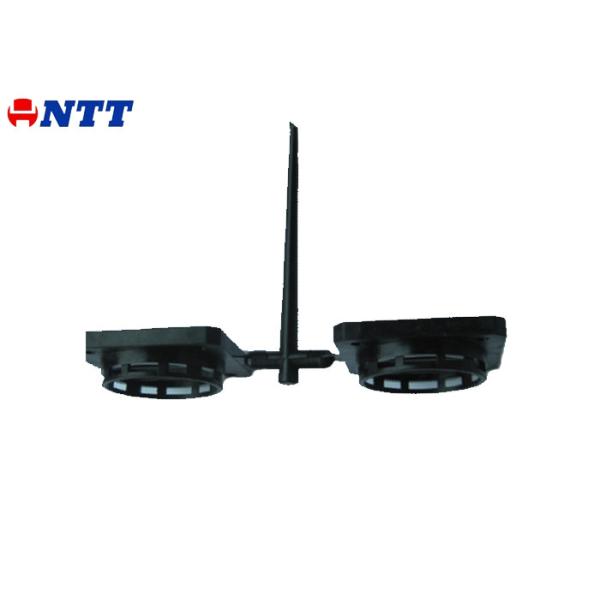

Mold Pictures:
Grivory GV 5HL Injection Mold Tooling 15 Square Flange 1 Set Iinterchangeable Insert Tool
Engineering & Design
■ 3D Modeling:
Pro/ENGINEER , SolidWorks, Unigraphics.
■ 2D Drawing:
Auto-CAD, E-drawing

Project Process:

● RFQ

● Quotation

● PO

● DFM

● Mold Design

● Design Approved

● Steel Ordering

● Machining

● Mold Trial

● Sample Approved

● Texture

● Delivery

NTT Mould:

Main Business High-quality plastic injection molds, injection molding, & part assemblies.
Serve Industries Automotive, electronics, home & office appliances, medical, etc.
Markets 90% molds exported to North America, South American, Europe and Australia.
Complex structure Hot runner mold, over mold, two-shot mold, unscrewing mold, multi-cavity mold, etc.
Quality Strictly comply with ISO 9001, and use quality document system to control every process of design, production and inspection.

Qualified Suppliers:

We work with qualified suppliers, and source mold base and mold steel from LKM, ASSAB, THYSSEN and DAIDO; hot runner system from YUDO, MOLD-MASTER, HASCO, DME, HUSKY.

If you make mold with us, our engineer will follow up your project from beginning to end:

1. Before mold build, a rough layout of the mold design (DFM) can be sent as a PPT format.

2. After you approve the DFM, we would give you a full detailed mold design in 2D and 3D drawing.

3. Once the mold design approved, we will start to build the mold strictly according to your requests.

Every week, we will send you weekly report with components (electrode, cavity, core, mold base) picture to show you the process of the project.

4. When we make T1 samples, we will make a video to you, and also send samples with molding report for your approval.

5. Only everything of the mold and sample is confirmed OK from your side, we will arrange the mold shipment and send you mold inspection report as well.

We take carefully with every step to make sure our quality, and what we can do, we surely try our best to work on it.

We are always available to answer your questions if you need additional information. Call us now, we look forward to partnering with you as your supplier.
