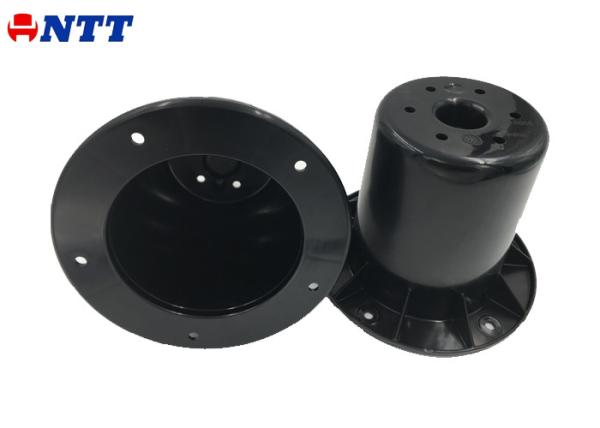

H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief
H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief
H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief
H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief
H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief
H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief
Specifications
Brand Name :
No brand
Model Number :
NTT-221-50
Certification :
ISO9001:2008
Place of Origin :
Shenzhen, China
MOQ :
1 pc
Price :
to be negotiated
Payment Terms :
T/T. Mould payment terms: 40% Deposit with P.O., Middle Term(first trial)30%, Final Term(before shipment)30%.
Supply Ability :
as customer's request
Delivery Time :
5 weeks
Packaging Details :
No sold wooden case for mold packing
Material :
SANTOPRENE
Color :
Black
Shrinkage :
1.02
Dimensions :
230x350x300mm
Mould Life :
500,000 Cycles
Steel Hardness :
HRC48-52
Injection System :
Cold runner/sub gates
Mold Lead Time :
5 weeks
Description

H13 4 Cavity Plastic Cover Mould Santoprene Complex Fluent Communication

Project Description:

Mold Number: NTT-221-55
Part Name: XFMR INDOOR STRAIN RELIEF
Core and Cavity: H13
Steel Hardness HRC48-52
Cavity Numbers: 4
Injection System: cold runner/sub gates
Mould Life: 500,000 Cycles.
Resin: SANTOPRENE
Shrinkage: 1.02
Tool Dimensions: 230x350x300 mm
Mold Lead Time: 5 weeks
Exported or Non-Exported Exported
Mold Maker: NTT Mould Co. Ltd

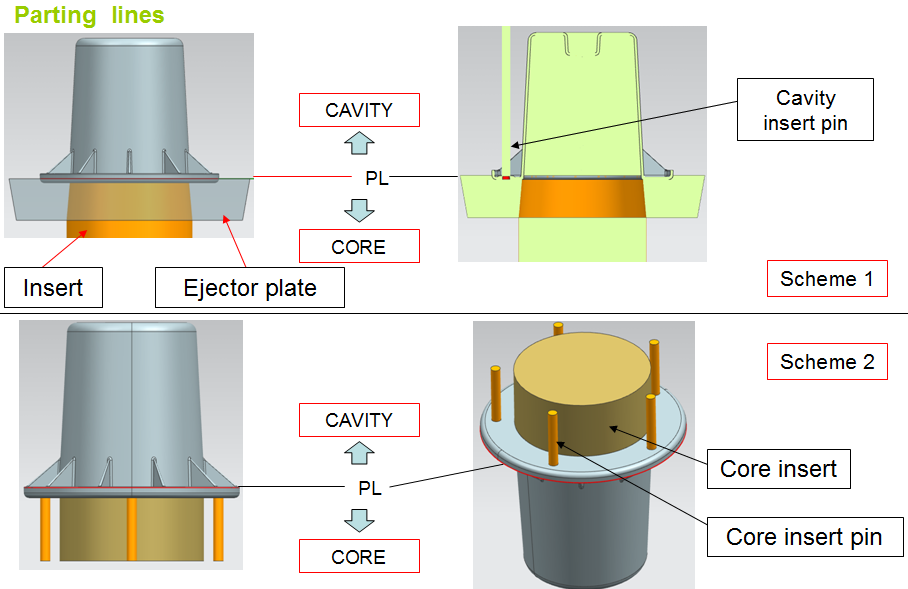

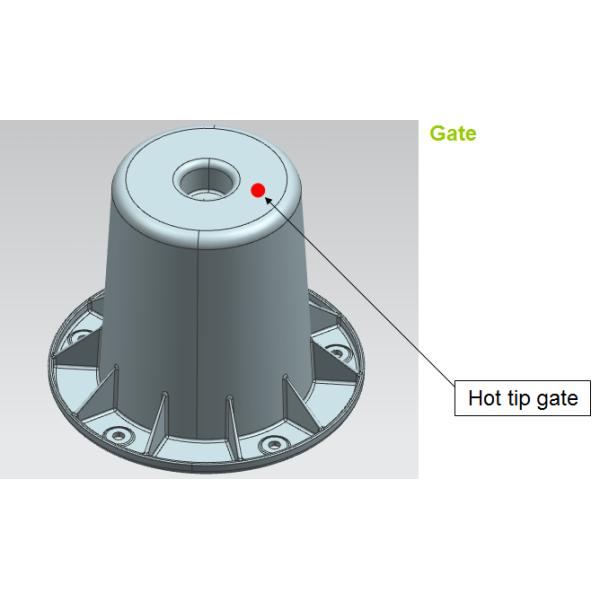

Design Anlysis:

H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief

H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief

Company General View:
▲ Main Business:

High quality plastic injection molds, injection molding and part assemblies.

▲ Serve Industries:

Automotive, electronics, home & office appliances, medical, etc.

▲ Quality:

Strictly comply with ISO 9001, and use quality document system to control every process of design, production and inspection.

▲ Complex Molds:

Hot runner mold, over mold, two-shot mold, unscrewing mold, multi-cavity mold, etc.

▲ Capacity for Molds:

30 sets of moulds per month;
▲ Minimum Tolerance:

Mold tolerance 0.005 mm, Part tolerance 0.02 mm
▲ Molded Resin:

ABS, PA, PMMA, PC, POM, ABS+PC, TPE, TPR, ASA, PA+GF, PP, PVC, PE etc.
▲ Main Markets:

90% molds are exported to Europe, North America, South America and Australia;

Quality Control:

If you have any project to do with us, we will have an engineer to follow up from your project from beginning to end, in English communication.

◇ DFM once project tick off, we will do the DFM first. To check with you about the shrinkage, parting line, gate, eject, sliders and so on. Or if we find any problem with the part design, we will have suggestions on the DFM for your reference.
↓ ↓
◇ Mold Specification before mould design, we will check carefully for details, to make sure everything is right to your request. If any points can not sure for design, we will write on the file, then you can fill up to send back to us
↓ ↓
◇ Weekly Report Once the mold design is approved, we will start to purchase material and build mold. Every Monday we will send “weekly report” attached with pictures, to show you the project progress.
↓ ↓
◇ Molding Report & Sample Dimension Report when mold is finished, we will test it and send the video of mold trial. Also we will test the samples and send you report, to let you know which condition we test the samples and the samples’ dimensions we get.
↓ ↓
◇ Mould Inspection Record Before shipment, we also measure the dimension of mould, and send the file to you to let you the mold status.
Production Presentation

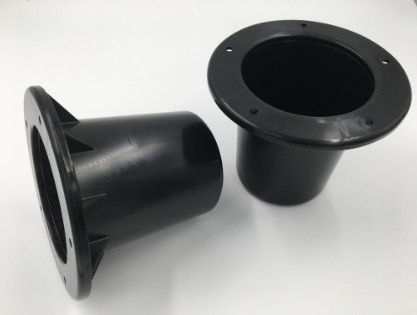

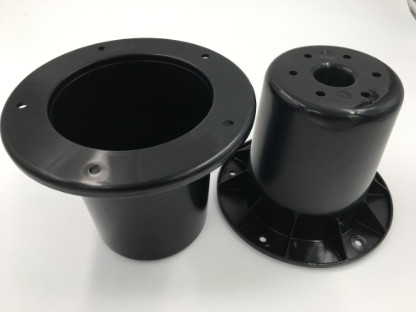

H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief

H13 Complex Plastic Cover Mould Black Santoprene XFMR Indoor Stain Relief

Order Processes

◆ RFQ

◆ Quotation

◆ PO

◆ DFM

◆ Mold Design

◆ Design Approved

◆ Steel Ordering

◆ Machining

◆ Mold Trial

◆ Sample Approved

◆ Texture

◆ Delivery

We will attend to Fukuma 2017 in Germany, an international trade fair for plastics processing.

And our booth NO. is FO-67 during 17 - 21 October 2017.

If available, I sincerely invite you to visit our booth by then.

If you have any questions, pls go ahead and contacts us, we are very pleased to show our price to you. Hope to hear from you soon. Thank you!
