Specifications
Brand Name :
No brand
Model Number :
NTT-263-48
Certification :
ISO9001:2008
Place of Origin :
Shenzhen, China
MOQ :
1 pc
Price :
to be negotiated
Payment Terms :
T/T. Mould payment terms: 40% Deposit with P.O., Middle Term(first trial)30%, Final Term(before shipment)30%.
Supply Ability :
based on customer's request
Delivery Time :
6 weeks
Packaging Details :
Samples: PE bags; Mold: No solid wooden case
Steel :
P20
Mold type :
Injection Mold Family Mold
Cavity :
1+1+1+1
Mold Lifetime :
300,000 Cycles
Mold Weight :
205 kg
Mold Dimension :
250x350x260 mm
Description

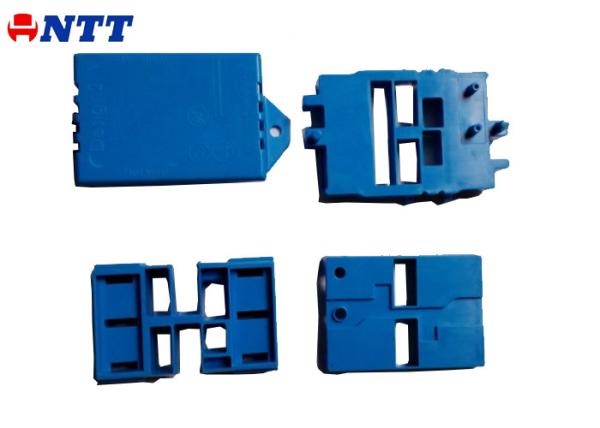

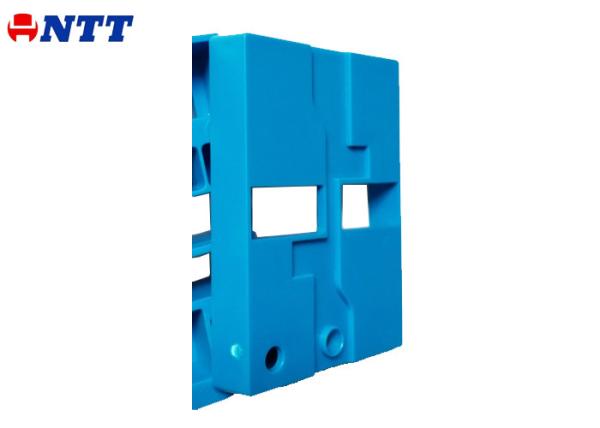

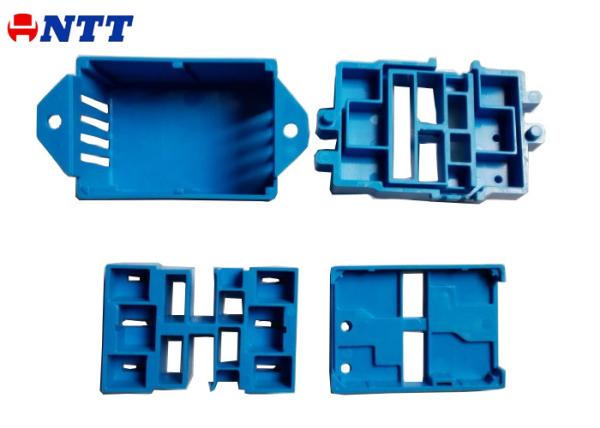

Multi Cavity Injection Molding With Family Tooling

NTT provides following services globally.

● Injection Mould Design & Making

● Plastic Injection Molding & Assembly

● Die Casting tooling

● Precision Part Machining

If you have any new inquiry, please keep NTT in mind and send us for quoting.

We are happy to show you more about our quality, services, lead time etc.

NTT Information:

Software : 3D Modeling: Pro/ENGINEER , SolidWorks, Unigraphics
2D Drawing: Auto-CAD, E-drawing
Mold steel :
P20, P20H, 718H, NAK80, 1.2311, H13, 1.2344, 420SS, S136, S-7 and 1.2767
Minimum tolerance : Mold tolerance 0.005 mm, Part tolerance 0.02 mm
Qualified suppliers : Mold base and mold steel from LKM, ASSAB, THYSSEN and DAIDO
Hot runner system from YUDO, MOLD-MASTER, HASCO, DME, HUSKY
Quality :

Strictly comply with ISO 9001.

we use quality document system to control every process of design, production and inspection.

NTT Mould Contact Information:
Angle Yan Email: angle@ntt-mould.com


NTT Project Process:

◇ DFM once project tick off, we will do the DFM first. To check with you about the shrinkage, parting line, gate, eject, sliders and so on. Or if we find any problem with the part design, we will have suggestions on the DFM for your reference.
↓ ↓
◇ Mold Specification before mould design, we will check carefully for details, to make sure everything is right to your request. If any points can not sure for design, we will write on the file, then you can fill up to send back to us
↓ ↓
◇ Weekly Report Once the mold design is approved, we will start to purchase material and build mold. Every Monday we will send “weekly report” attached with pictures, to show you the project progress.
↓ ↓
◇ Molding Report & Sample Dimension Report when mold is finished, we will test it and send the video of mold trial. Also we will test the samples and send you report, to let you know which condition we test the samples and the samples’ dimensions we get.
↓ ↓
◇ Mould Inspection Record Before shipment, we also measure the dimension of mould, and send the file to you to let you the mold status.

Mould Rough Design:

Multi Cavity Injection Molding With Family Tooling , Multi Cavity Mold

If you have any questions, pls go ahead and contacts us, we are very pleased to show our price to you. Hope to hear from you soon. Thank you!
