Specifications
Brand Name :
Chitwing
Model Number :
VR Products
Certification :
ISO 9001:2015
Place of Origin :
Vietnam
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
400 X 450 X 429
IMM Tonnage :
110T
Mold Weight :
482kg
Mould material :
S136
Material :
PC+ABS
Mould life :
500，000 shots
Mould base :
LKM
Design software :
3D:UG 4.0/2D:CAD
Description

POA Rear Pad (1*1)

No.22729-B

The mold part is constructed using an LKM mold base and designed with a cold runner system. The surface of the mold has been etched with MT11010, and certain areas have undergone EDM (Electrical Discharge Machining) using VDI27# (Makino) and LKM standard. The mold has a size of 400mm in length, 450mm in width, and 429mm in height. It features a pin point gate for injection. The tool life of the mold is expected to be 500,000 shots.

OEM / ODM ： ABS Injection Molding & POA Rear Pad (1*1) No.22729-B

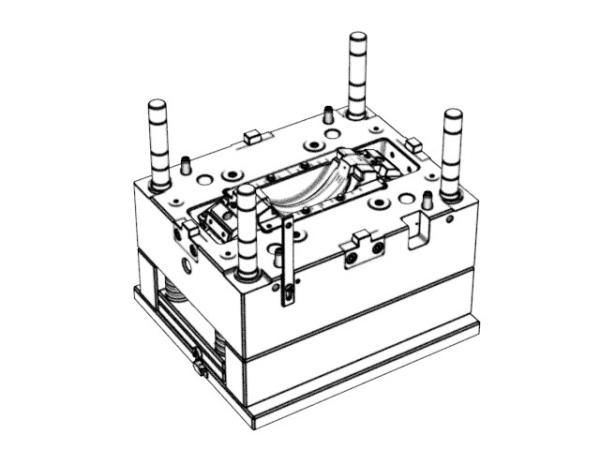

The mold structure consists of three plates, with a hardened cavity and core made of S136 steel (1*1) and a hardened surface with a hardness greater than 600HV. Additionally, the mold includes 2 slides and 18 lifters. The net weight of the mold is 482kg, and it is suitable for an injection molding machine with a tonnage of 110T.

OEM / ODM ： ABS Injection Molding & POA Rear Pad (1*1) No.22729-B

The injection molded parts are made from a PC+ABS material. The net weight of the injection part is 15g, and its dimensions are 158.51mm x 47.92mm x 70.83mm.

OEM / ODM ： ABS Injection Molding & POA Rear Pad (1*1) No.22729-B

Display diagram

OEM / ODM ： ABS Injection Molding & POA Rear Pad (1*1) No.22729-BOEM / ODM ： ABS Injection Molding & POA Rear Pad (1*1) No.22729-BOEM / ODM ： ABS Injection Molding & POA Rear Pad (1*1) No.22729-BOEM / ODM ： ABS Injection Molding & POA Rear Pad (1*1) No.22729-B
