Transparent Shell (1*1)

No.19014-B

This mold is built on a standard GCI3540.90120100 mold base and follows the LKM mold standard.

It has a length of 400mm, a width of 400mm, and a height of 386mm. Additionally, the mold features

1 slide and 8 lifters. The design of the mold allows for the production of high-quality parts with

recision and accuracy.


The mold's robust construction and adherence to industry standards make it ideal for a wide range

of applications.The configuration of 1 slide and 8 lifters helps achieve complex part shapes and

functions, improving production efficiency.

Shell (1*1) / Cold runner / Two-plates mold No.19014-B

The net weight of mold is 390kg; the IMM tonnage is 180T; the part material is PC; the part size is

130.92 X 165.60 X 62.06mm, and the net weight of part is about 10g

The mold is developed by Chitwing (designed and manufactured)

Shell (1*1) / Cold runner / Two-plates mold No.19014-BShell (1*1) / Cold runner / Two-plates mold No.19014-B

Surface finish Mirror EDM VDI 10#
Steel of cavity & core Harden (1*1/S136)

Shell (1*1) / Cold runner / Two-plates mold No.19014-B

According to the cost-effective requirement and the demand for mass development at low cost,

the mold is designed with two-plates structure, side gate (pin point gate turns to side gate).

A surface mirror EDM with VDI 10#, and harden the cavity and core, so that the mold has

smoother surface, higher hardness, and better anti-wearing performance, a tool life up to

500K shots, short cycle time and minimized cold slug to meet the needs of mass production

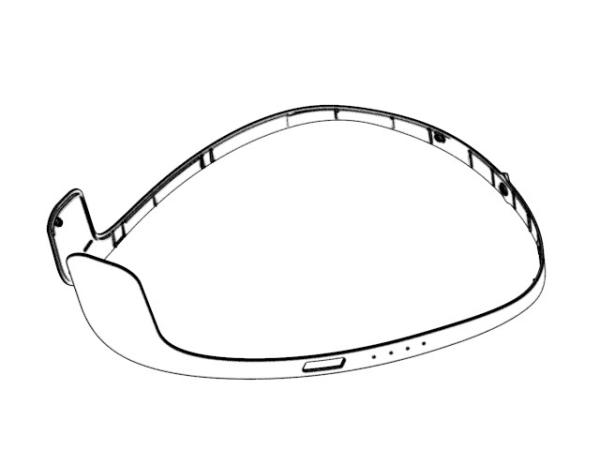

Display diagram
