Specifications
Brand Name :
Chitwing
Model Number :
In-Car Products
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
180 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
450.000 X 650.000 X 548
IMM Tonnage :
130T
Mold Weight :
1075kg
Part material :
PA+50% GF
Mold base P/N :
CI4065A85B130C110
Standard :
LKM
Tool life :
500k shots
Slide/Lifter :
3/3
Description

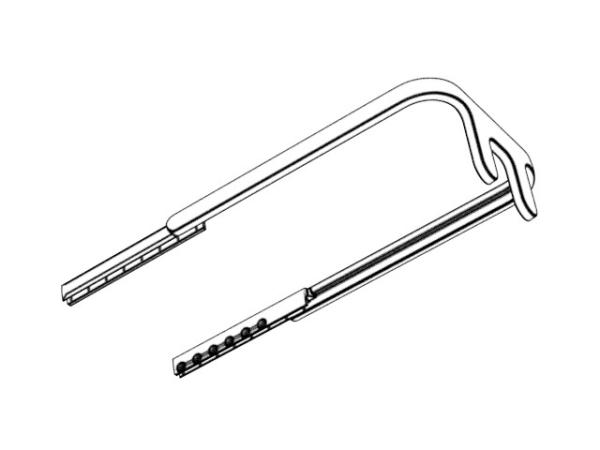

Transparent On-board Foot Rest (1*2)

No.23914

【Brand | Chitwing】
【Standard | LKM】- Chinese general injection mold standard
【Size | 450x650x548mm】
【Mold net weight |1075kg】

OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Foot Rest (1*2) No.23914


【Mold base P/N| CI4065A85B130C110】
【Part material | PA+50% GF】-Nylon + 50% glass fiber
【Part size/weight | 61.00x130.95x28.34mm/7.75g】

OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Foot Rest (1*2) No.23914


【Type | Two-plates mold】-Low cost, simple structure and short molding cycle
【Gate | Sprue gate】-Low pressure loss; easy to manufacturing
【Tool life - 500k shots】

OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Foot Rest (1*2) No.23914


【Surface finish] | ① A surface EDM to Charmilles VDI24# ② Internal surfaces polished

with SPI-B1】
The mold surface EDM with Charmilles VDI24#, molded part with smooth, touch-friendly

surface(have certain friction felling),internal surface polished to SPI-B1, avoiding scractch

and good for part removal.
【Steel of cavity & core | Harden (1*2/S136)】
- Harden cavity / core with high hardness, anti-wearing, anti-corrosion, with long tool life

and can meet the requirements of mass production.
【Injection/runner type | Hot runner】

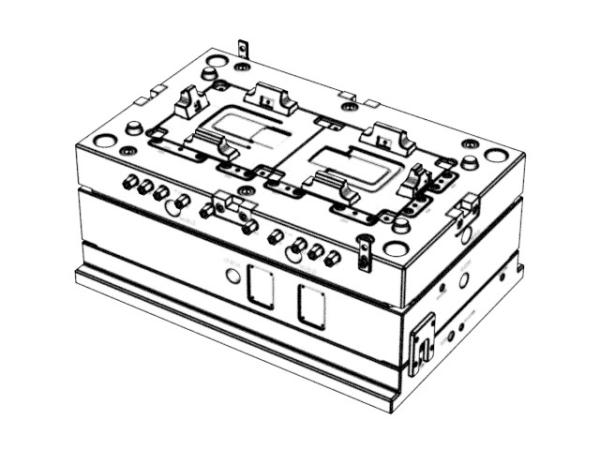

Display diagram

OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Foot Rest (1*2) No.23914OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Foot Rest (1*2) No.23914OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Foot Rest (1*2) No.23914OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Foot Rest (1*2) No.23914
