OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
Specifications
Brand Name :
Chitwing
Model Number :
Smart Watch
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
350.000 X 450.000 X 391.000
IMM Tonnage :
180T
Mold Weight :
392kg
Tool life :
500K shots
Gate :
Side gate
Part net weight :
1.6g
Part size :
21.41 X 50.40 X 25.18mm
Injection type :
Hot runner
runner type :
Hot runner
Steel of cavity & core :
Harden (1*4/S136)
Description

Smart Watch Base Lower Housing (1*4)

No.23305

☆ Mold base P/N --- GCI3045 10011090
☆ Size - 350x450x391
☆ Standard - LKM
☆ Type - Three-plates mold (more automatic)		 Slide
2
Lifter
5

OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305

☆ Tool life -500K shots
☆ Mold weight - 392kg
☆ IMM Tonnage - 180T
☆ Gate - Side gate
☆ Part material - PC
☆ Part size - 21.41 X 50.40 X 25.18mm
☆ Part net weight - 1.6g

OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305

☆ Injection/runner type - Hot runner
This is a hot runner mold, melt can get into cavity with even pressure, fill out cavity properly.

molded part with uniform texture density, smooth surface and easy demold and minimize

deformation.

OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305


☆ Surface finish - A surface EDM with SPI-B1
The mold surface is polished with a good glossiness and roughness. Mold good fitted and

molded part W/O flow marks

OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305


☆ Steel of cavity & core: Harden (1*4/S136)
Harden the cavity and core with high hardness, anti-wear and anti-corrosion, long tool life

to support stable high volume mass production.

OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305

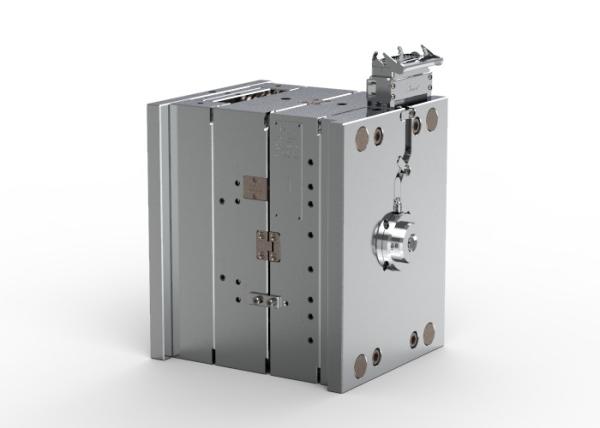

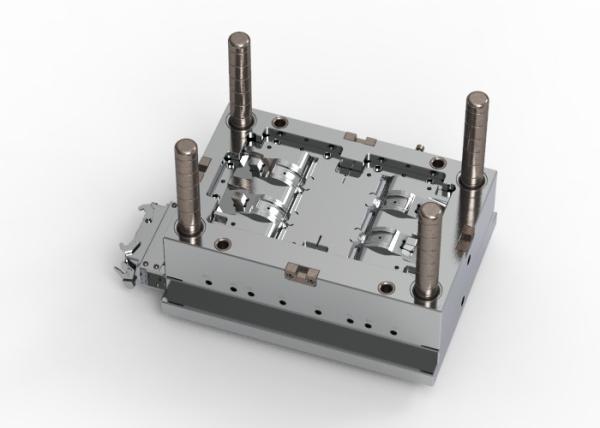

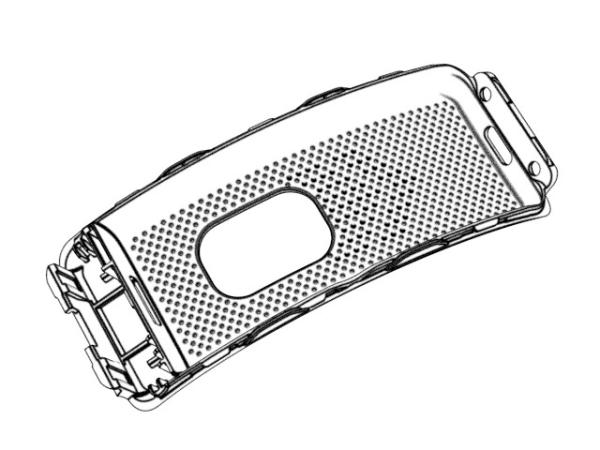

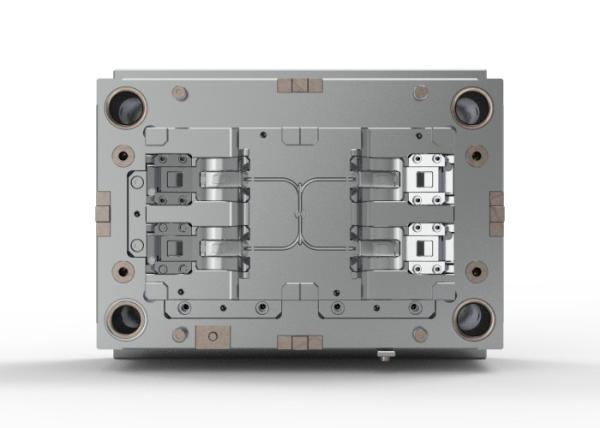

Display diagram

OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305OEM / ODM ： Cold Runner Injection Molding & Smart Watch Base Lower Housing (1*4) No.23305
